7.3.4. Mode "Acc"
The output will be set if the input level is less than Low Threshold and will be in old
state after input level is over High Threshold.
This function does not affect to SNMP traps but the same Threshold values are
used for sending SNMP traps.
Additionally in firmware ver. 4.097 there is option "INV" (Inversion) - it reverse the
signal level which is generated to P5 (if the regular was to set in "1" during INV it will
be "0". For example if temperature sensor is used - this option allows to be done
automatic switch ON of load when the temperature is higher than the threshold HIGH
(and switch OFF when the temperature is lower than the threshold LOW). And it is
possible the opposite (without "INV") it is possible heating during low temperatures
(for instance antennas) - the output is ON when level is lower than LOW and OFF
when the level is higher than HIGH.
SNMP: Changing pin value aevPinX.0. Possible values are: None, Low, High,
LowHigh, Acc
Web: Меню „SNMP traps-> P5 set at"
7.4. I/O Ports
P3 is configurable digital TTL I/O port. It is possible to be configured by the user
for its own purposes.
P5 is also configurable TTL I/O port. However the relays are connected to this port
and that's why it must work as output port.
P6 is 8 channel 10 bit analog input port. The reference voltage Vref=1.22VDC
(from external source). The web page is optimized to show:
 The returned ADC value - from 0 to 1023
 The temperature in C and F (valid only if LM35DZ sensor is connected to JP1)

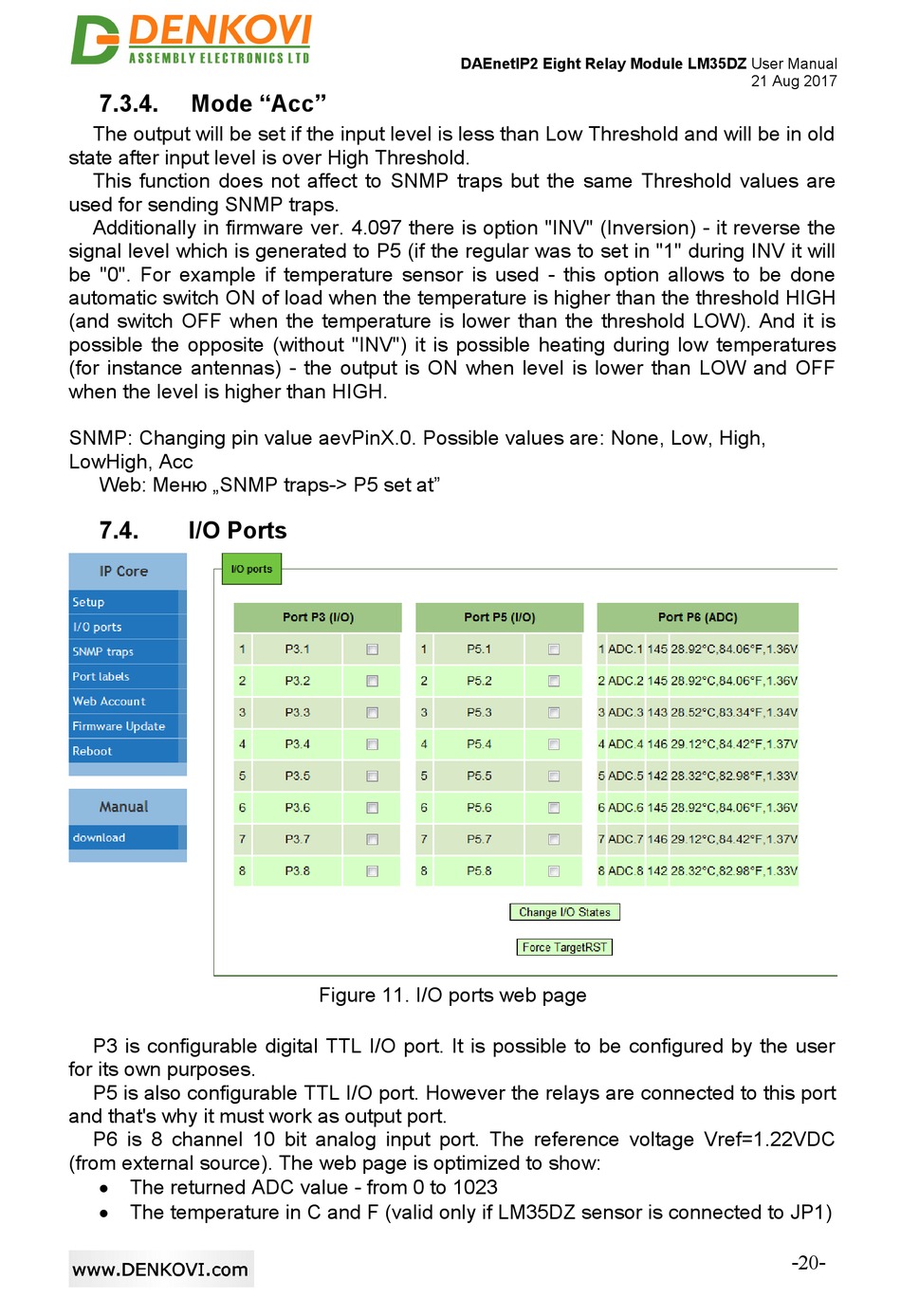

DAEnetIP2 Eight Relay Module LM35DZ User Manual
Figure 11. I/O ports web page
