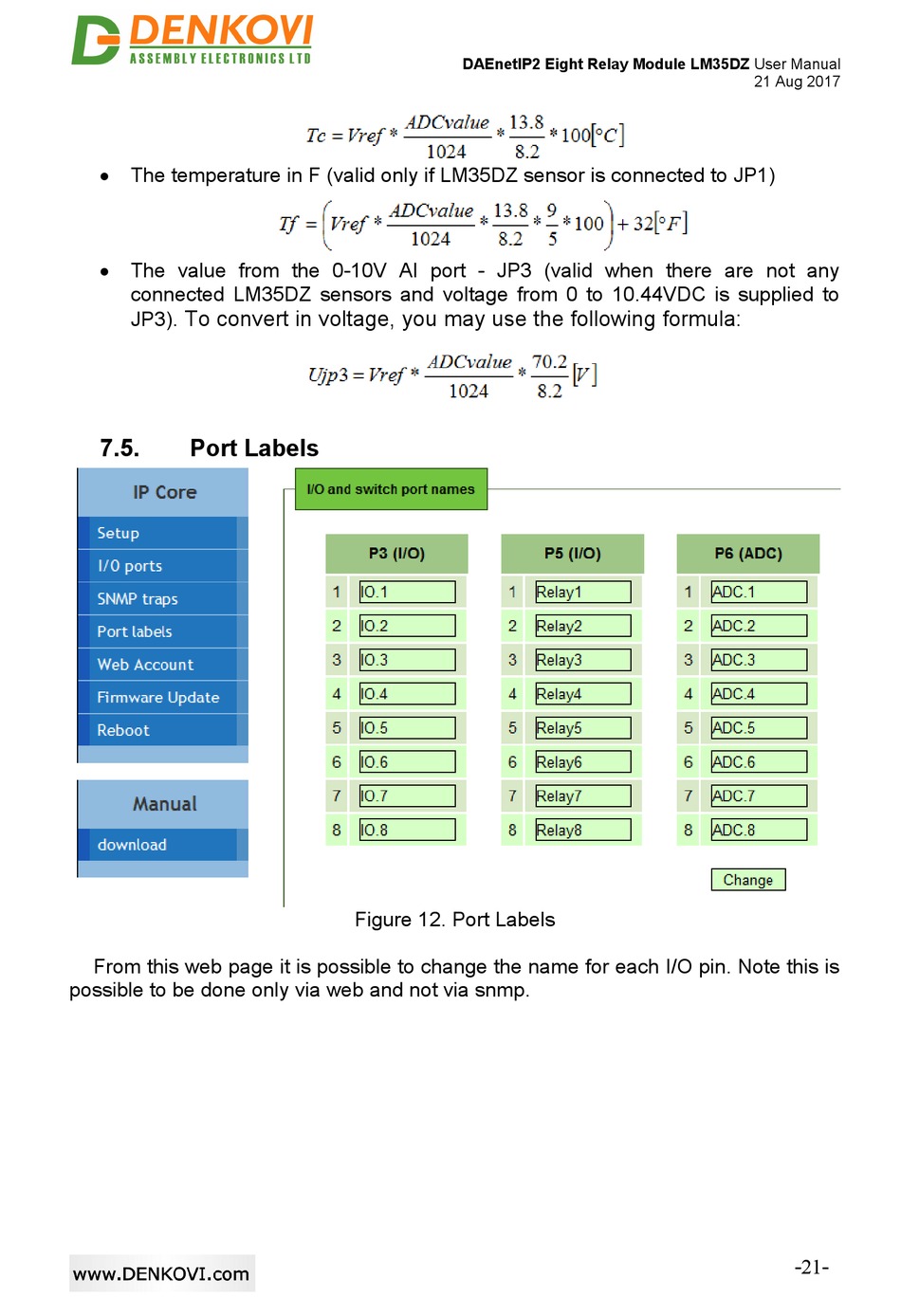

Denkovi DAEnetIP2 User Manual page 21

 The temperature in F (valid only if LM35DZ sensor is connected to JP1)
 The value from the 0-10V AI port - JP3 (valid when there are not any
connected LM35DZ sensors and voltage from 0 to 10.44VDC is supplied to
To convert in voltage, you may use the following formula:
JP3).
7.5. Port Labels
From this web page it is possible to change the name for each I/O pin. Note this is
possible to be done only via web and not via snmp.
DAEnetIP2 Eight Relay Module LM35DZ User Manual
Figure 12. Port Labels
21 Aug 2017
-21-
