DAEnetIP2 Eight Relay Module LM35DZ User Manual
21 Aug 2017
6.2.
DAEnetIP2 Eight Relay Module Ports

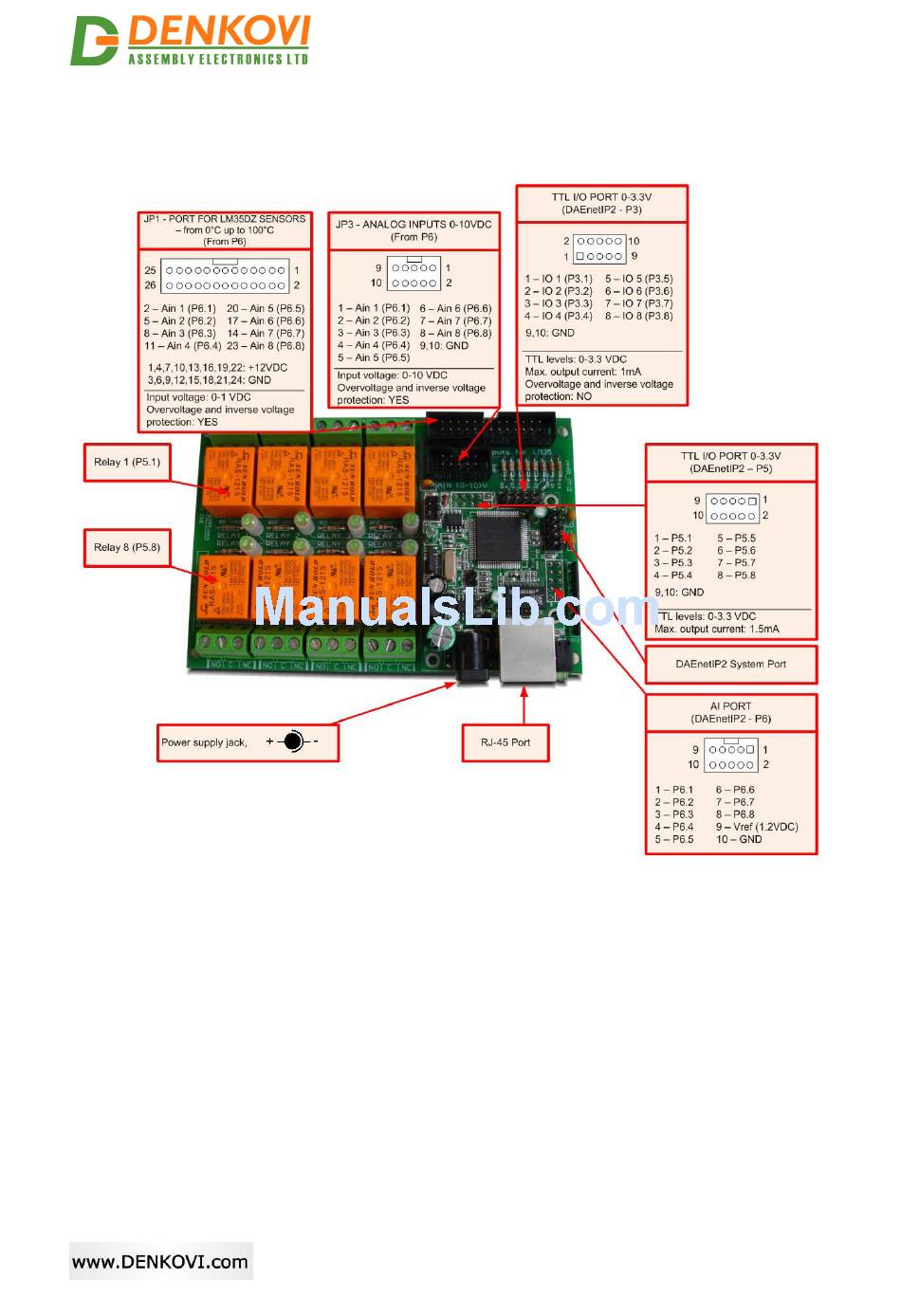

Figure 5. Ports
Note that it is strongly recommend to use only one port at a time - either JP1 -
Analog Inputs (0-10VDC) either JP3 - Port for sensors. Otherwise the device may
be permanently damaged !
-10-
