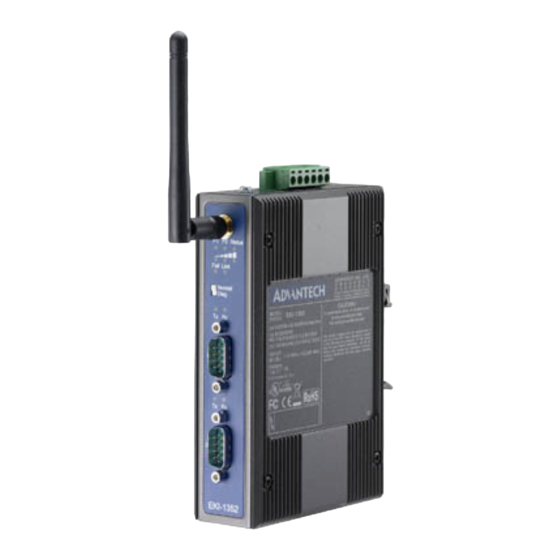

Advantech EKI-1351 User Manual

1/2/4-port rs-232/422/485 serial device servers
Hide thumbs Also See for EKI-1351:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
EKI-1351/1352/EKI-1521/1522/1524
1/2/4-port RS-232/422/485 Serial
Device Servers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKI-1351 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech EKI-1351

Summary of Contents for Advantech EKI-1351

  • Page 1 User Manual EKI-1351/1352/EKI-1521/1522/1524 1/2/4-port RS-232/422/485 Serial Device Servers...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.

  • Page 3: Declaration Of Conformity

    This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 4 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

  • Page 5: Table Of Contents

    Contents Introduction ....................2 Features ....................3 1.2.1 1.2.1 EKI-1521, EKI-1522, and EKI-1524 ........3 1.2.2 1.2.2 EKI-1351 and EKI-1352 ............3 Specifications .................... 4 1.3.1 EKI-1521, EKI-1522 and EKI-1524 ..........4 1.3.2 1.3.2 EKI-1351, EKI-1352 ............. 5 1.4 Package Check List ................5...
  • Page 6 Introduction ..................... 58 EDG Favorite Groups ................58 4.2.1 Creating Favorite group .............. 58 4.2.2 4.1.2 Removing device server from Favorite group....60 Setting COM Redirector(Virtual COM port)..........61 4.3.1 Auto Mapping................61 4.3.2 Manual Mapping ................. 63 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...
  • Page 7 Chapter Overview...

  • Page 8: Introduction

    The EKI-1351, and EKI-1352 provide 1/2 serial ports, 802.11b/g Wireless LAN inter- face to connect any RS-232/422/485 devices to Wireless LAN. These wireless serial device servers provide serial-to-wireless network connectivity as an alternative to wired Ethernet connectivity and enable virtually any serial device or equipment to be remotely accessed, controlled, monitored, or shared on an 802.11b/g wireless net-...

  • Page 9: Features

    Easy to locate specific EKI serial device server. Mounts on DIN rail, or panel easily. 1.2.2 1.2.2 EKI-1351 and EKI-1352 Expand up 255 serial ports for one Windows NT/2000/XP/Vista(X86) host Provides 802.11b/g standard. Supports Wireless LAN Ad-Hoc and Infrastructure modes Supports high transmission speed up to 1.2M bps totally...

  • Page 10: Specifications

    Power consumption: EKI-1521:2W, EKI-1522: 4W, EKI-1524: 5W Serial protection: 15KV ESD. Power protection: 4 KV burst (EFT), EN61000-4-4, 2 KV surge, EN61000-4-5, Overload 2A/125V Replaceable Fuse Ethernet protection: Built-in 1.5 KV magnetic isolation. Operation Temperature: 0~60 Storage Tempaerature:-20~80 Operating Humidity:20~95%(non-condensing) Storage Humidity:0~95%(non-condensing). EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 11: Eki-1351, Eki-1352

    Ethernet communication compatibility: IEEE802.11b, IEEE802.11g Protocol: TCP/IP Interface: Network: Wireless Serial: RS-232/422/485 Serial ports: 1/2/4 independent RS-232/422/485 ports EKI-1351: 1 x RS-232/422/485 port EKI-1352: 2 x RS-232/422/485 port Connector Serial: DB9 Baud rate: 50~ 921kbps Throughput: Total throughput up to 1.2M bps...
  • Page 12 EKI-1521/1522/1524 User Manual...

  • Page 13: Chapter 2 Getting Started

    Chapter Getting Started...

  • Page 14: Understanding Serial Device Servers

    EKI-1521, EKI-1522, and EKI-1524 provide dual Ethernet ports that can establish two physical Ethernet connections. Dual connection control enables an alternative backup session that host can connect to device server by the way of second connec- tion while the primary connection should be lost or dropped. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 15: Com Port Redirector (Virtual Com Port)

    EKI-1351 and EKI-1352 has an 802.11b/g transceiver in addition to its serial and Ethernet ports. Each serial port is connected to the serial communication port of a device. The wireless transceiver connects to another wireless device or to an Access Point (AP).
  • Page 16 COM port and disconnects from the Advantech serial device server when the application closes the COM port. The redirector uses TCP network connections to the Advantech serial device server to gain the access to the connected serial devices.

  • Page 17: Tcp Server Mode

    This operation mode support max. 5 simultaneous connections for each serial port on EKI serial device server from one host or several hosts, however multi-hosts collect the data from one serial port at the same time. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 18: Tcp Client Mode

    In TCP Client mode, the TCP connection will be established from EKI serial device server. This operation mode supports maximum 16 (EKI-1521, EKI-1522, and EKI- 1524) or maximum 4(EKI-1351 and EKI-1352) simultaneous connections for each serial port on EKI serial device sever to one host or several hosts. You should configure the IP address and TCP port number of the network hosts which the EKI serial device connect to using Advantech serial device server utility.

  • Page 19: Serial Tunneling Mode

    PC and software programming. Serial Tunneling is very simple to use. You can use Advantech serial device server utility to designate one serial port as the tunneling master and another serial device server port as the tunneling slave.

  • Page 20: Control Mode

    Locate from Utility LAN(Left side) Yellow Link No Link Flash Active LAN(Right side) Green 100M Yellow Serial port data being transmitted Serial port no data being transmitted Green Serial port data being received Serial port no data being received EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...
  • Page 21 2.2.1.2 EKI-1351 and EKI-1352 These LEDs display the power status, wireless network status, and serial communi- cation status located on the front panel of EKI-1351, and EKI-1352, each of them has its own specific meaning as below table. Color Status...

  • Page 22: Dimension (Units:mm)

    2.2.2 Dimension (units:mm) 2.2.2.1 EKI-1521 and EKI-1522 Figure 2.1 Front View Figure 2.2 Side View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 23: Figure 2.3 Back View

    Figure 2.3 Back View Figure 2.4 Top View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 24: Figure 2.5 Front View

    2.2.2.2 EKI-1524 Figure 2.5 Front View Figure 2.6 Side View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 25: Figure 2.7 Back View

    Figure 2.7 Back View Figure 2.8 Top View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 26: Figure 2.9 Front View

    2.2.2.3 EKI-1351 and EKI-1352 Figure 2.9 Front View Figure 2.10 Side View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 27: Figure 2.11Back View

    Figure 2.11 Back View Figure 2.12 Top View EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 28: Connecting Hardward

    The EKI serial device servers can be attached to a wall using the included metal brackets. Each bracket comes with four screws; and then you can install the device firmly via the components, please see Figure as below. Figure 2.13 Combining the Metal Mounting Kit EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 29: Network Connection

    Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-1521, EKI-1522 and EKI-1524 can be connected to other hubs or switches through a twisted-pair straight through the cable or a crossover cable up to 100m long. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual...

  • Page 30: Wireless Connection

    Ethernet network first. Then build up the connection between the access point and the EKI-1351 and EKI-1352. While the host PC can not connect to EKI-1351 and EKI-1352, you might switch the EKI-1351 and EKI-1352 as Diag mode.
