In addition to this guide, a Quick Installation Guide is also released with each TP-LINK router, you are suggested to configure your router for quick Internet setup by following the published Quick Installation Guide before you get started with a further configuration.
Chapter Get to Know About Your 4G LTE Router This chapter introduces what the router can do and shows its main features and appearance. This chapter contains the following sections: • Product Overview • Main Features • Panel Layout Downloaded from www.Manualslib.com manuals search engine...

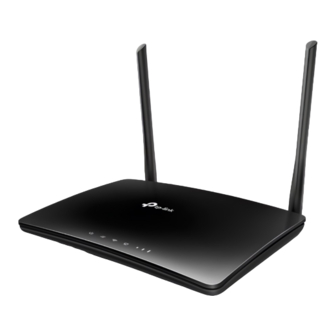

Product Overview What This Product Does The AC750 Wireless Dual Band 4G LTE Router, Archer MR200, shares the latest generation 4G LTE network with multiple Wi-Fi devices, anywhere you want. It creates simultaneous dual band 802.11ac Wi-Fi, with speeds up to 300Mbps on 2.4GHz band and 433Mbps on 5GHz band.
Chapter 1 Get to Know About Your 4G LTE Router 1. 3. Panel Layout 1. 3. 1. Top View The router’s LEDs are located on the top panel (view from top to bottom). You can check the router’s working status by following the LED Explanation table. LED Explanation Indication Name...
Chapter 1 Get to Know About Your 4G LTE Router LED Explanation Indication Name Status Turns On when a WPS synchronization is established and On/ Off automatically turns Off about 5 minutes later. A wireless device is trying to connect to the network via WPS. Flashing This process may take up to 2 minutes.
Chapter 1 Get to Know About Your 4G LTE Router Description Item The switch for the WPS and RESET function. RESET: There are two ways to reset the router to its factory defaults. Method one: With the router powered on, use a pin to press and hold the WPS/RESET RESET button until the Power LED starts flashing.
Chapter Connect the Hardware This chapter contains the following sections: • Requirements for Operation • Requirements for Operation • Connect Your 4G LTE Router Downloaded from www.Manualslib.com manuals search engine...
Chapter 2 Connect the Hardware 2. 1. Requirements for Operation To connect and use the router for Internet sharing, you must have the following: • SIM card with Internet access enabled. • PCs with an active Ethernet Adapter and an Ethernet cable with RJ45 connectors. •...
TP-LINK. 2. Connect your computer to the router. Method 1: Wired Connect your computer’s Ethernet port to one of the LAN ports on Archer MR200 via an Ethernet cable. Method 2: Wirelessly Use the default SSID (Wireless Network Name) and Wireless Password printed on the product label of the router to connect wirelessly.
Chapter 2 Connect the Hardware Downloaded from www.Manualslib.com manuals search engine...
Chapter Log into Your 4G LTE Router Downloaded from www.Manualslib.com manuals search engine...
Chapter 3 Log into Your 4G LTE Router With a Web-based management page, it is easy to configure and manage the Archer MR200 AC750 Wireless Dual Band 4G LTE Router. The Web-based management page can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Chapter Set Up Internet Connections This chapter introduces how to connect your router to the Internet. The router is equipped with a web-based Quick Setup wizard. It has many ISP information built in, automates many of the steps and verifies that those steps have been successfully completed.
Chapter 4 Set Up Internet Connections 4. 1. Use Quick Setup Wizard To set up your router with several easy steps quickly: 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 2. Click Quick Setup, confirm the parameters with the information provided by your ISP and click Next.
Chapter 4 Set Up Internet Connections 5. Click to make the settings effective and the new profile will be used to set up a new connection. Tips: You can view all Internet connections or edit connections that are set up manually on this page. 4.
Chapter 4 Set Up Internet Connections 3. Click Start to test the Internet connectivity and you will see the test result in the gray box. Downloaded from www.Manualslib.com manuals search engine...
Chapter Bandwidth Control The Bandwidth Control feature is used to fully utilize your limited bandwidth and optimize the load respectively. With this feature enabled, you can assign a specific minimum or maximum bandwidth for each computer, thus minimizing the impact caused when the connection is under heavy load.
Chapter 5 Bandwidth Control I want to: Use an independent bandwidth and enjoy a good Internet experience without being affected by other users who are sharing the same router. example, my roommate and I share 512Kbps Upstream Bandwidth and 8Mbps Downstream Bandwidth via this router, she likes to watch live show and play online games, which may take up much bandwidth.
Chapter 5 Bandwidth Control IP Range: Enter the IP address. The field can be single IP address or IP address range according to your demands. When you enter a single IP address, the computer with this IP address will get independent given bandwidth. When you enter an IP address range, all computers in the range will share the given bandwidth.
Chapter 5 Bandwidth Control Done! Now you and your roommate have an independent bandwidth. Downloaded from www.Manualslib.com manuals search engine...
Chapter Network Security This chapter guides you on how to protect your home network from unauthorized users by implementing these three network security functions. You can block or allow specific client devices to access your wireless network using MAC Filtering, or using Access Control for wired and wireless networks, or you can prevent ARP spoofing and ARP attacks using IP &...
Chapter 6 Network Security 6. 1. MAC Filtering This function exploits the uniqueness of the MAC (Medium Access Control) address, a unique 12-digit hexadecimal address (for example, D8:5D:4C:B4:46:EA) of every network device, to determine if the device can or cannot access your wireless network. I want to: Prevent unauthorized users from accessing my wireless network by utilizing the network device’s MAC address and IP address.
Chapter 6 Network Security 3. Select the filtering rule to either block (recommended) or allow the device(s) in the list. To block specific device(s) 1 ) Select Block wireless access from the devices in the list below and click Save. 2 ) Select the device(s) to be blocked in the Devices Online table.
Chapter 6 Network Security 3 ) Enter the MAC Address (You can copy and paste the MAC Address from Devices Online list if the device is connected to your wireless network) and the Description of the device. 4 ) Select the checkbox to enable this entry, and click OK. Done! Now MAC Filtering is implemented to protect your wireless network.
Chapter 6 Network Security 3. Select the access mode to either block (recommended) or allow the device(s) in the list. To block specific device(s) 1 ) Select Blacklist and click Save. 2 ) Select the device(s) to be blocked in the Devices Online table.
Chapter 6 Network Security 3 ) Enter the Device Name MAC Address (You can copy and paste the information from Devices Online table if the device is connected to your network). 4 ) Click OK. Done! Now you can block or allow specific client devices to access your network (via wired or wireless) using the Blacklist or Whitelist.
Chapter 6 Network Security 3. Bind your device(s) according to your needs. To bind the connected device(s) 1 ) Select the device(s) to be bound in the List. 2 ) Click Bind to add to the Binding List. To bind the unconnected device 1 ) Click Add.
Chapter Parental Controls This function allows you to block inappropriate, explicit and malicious websites, and control access to specified websites at specified time. Downloaded from www.Manualslib.com manuals search engine...
Internet. example,I want to allow my children’s devices (e.g. a computer or a tablet) to access only www.tp-link.com and Wikipedia.org, from 18:00 (6PM) to 22:00 (10PM) on weekdays and not other times.
Chapter 7 Parental Controls 4. Click View Existing Devices, and select the device to be controlled. Or, enter the Device Name MAC Address manually. 5. Click the icon to set the Internet Access Time. Drag the cursor over the appropriate cell(s) and click OK. 6.
Blacklist and Whitelist. Below are some sample entries to allow access. 1 ) Enter a web address (e.g. www.tp-link.com) or a web address keyword (e.g. wikipedia) to only allow or block access to the websites containing that keyword.
Chapter This chapter introduces how to use the SMS functions to view and write messages, keep drafts and specify the message center number. You can easily monitor your data usage by sending a message to your carrier. This chapter includes the following sections: •...
Chapter 8 8. 1. View Messages 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 1. Go to Advanced > > Inbox page. 2. Click the icon to unfold and read the content of the message. Tips: indicates the message is read, while indicates the message is unread.
Chapter 8 You can enter up to 160 letters or numbers, and any exceeding characters will be sent in the next message. You can send up to 5 messages each time. 4. Click Send to send the message or click Save to save the message to the Drafts.
Chapter 8 8. 5. SMS Settings SMS Settings allows you to configure the Message Center. When the Message Center is enabled, you can change the Message Center Number via which messages will be sent. It is not recommended to change it for a wrong message center number will affect the SMS function of the router.
Chapter Guest Network This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can assign network authorities and bandwidth for guests to ensure network security, privacy, and fluency.
Chapter 9 Guest Network 9. 1. Create a Network for Guests 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 2. Go to Advanced > Guest Network. Locate the Wireless Settings section. 3. Create a 2.4GHz or 5GHz guest network according to your needs. 1 ) Enable 2.4GHz 5GHz...
Chapter 9 Guest Network • Allow guests to see each other Select this checkbox if you to allow the clients in your guest network to access each other. • Allow guests to access my local network Select this checkbox if you want to allow the clients in your guest network to access your local network, not just Internet access.
Internet to initiatively communicate with the devices in the local network, thus to realize some special functions. TP-LINK router includes four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Virtual Servers, Port Triggering, UPnP and DMZ.
Chapter 10 NAT Forwarding 10. 1. Share Local Resources in the Internet by Virtual Server When you build up a server in the local network and want to share it on the Internet, Virtual Server can realize the service and provide it to the Internet users. At the same time virtual server can keep the local network safe as other services are still invisible from the Internet.
Chapter 10 NAT Forwarding 4. Click View Existing Services, and choose HTTP. The external port, internal port and protocol will be auto-populated. Enter the PC’s IP address 192.168.1.100 in the Internal IP field. 5. Click to save the settings. Tips: 1.
Chapter 10 NAT Forwarding router can forward them to the corresponding host. Port triggering is mainly applied to online games, VoIPs and video players. Common applications include MSN Gaming Zone, Dialpad and Quick Time 4 players, etc. Follow the steps below to configure the port triggering rules: 1.
Chapter 10 NAT Forwarding all ports opened. When you are not clear about which ports to open in some special applications, like IP camera and database software, you can set the PC to be a DMZ host. Note: DMZ is more applicable in the situation that users are not clear about which ports to open. When it is enabled, the DMZ host is totally exposed to the Internet, which may bring some potential safety hazard.
Chapter 10 NAT Forwarding to use applications for multiplayer gaming, peer-to-peer connections, real-time communication (such as VoIP or telephone conference) or remote assistance, etc. Tips: 1. UPnP is enabled by default in this router. 2. Only the application supporting UPnP protocol can use this feature. 3.
Chapter Specify Your Network Settings This chapter introduces how to change the default settings or adjust the basic configuration of the router using the web-based management page. This chapter contains the following sections: • PIN Management • Data Settings • Data Settings •...
Chapter 11 Specify Your Network Settings 11. 1. PIN Management PIN (Personal Identification Number) is used to protect the SIM card from embezzlement. PIN Management allows you to easily change the PIN settings of your SIM card appropriate to your needs. Follow the steps below to change your PIN settings.
Chapter 11 Specify Your Network Settings 11. 2. Data Settings Data Settings is used to monitor the data usage of your router in real-time. You can limit your data usage according to your monthly allowance or total allowance and you will receive a warning if your data usage reaches the specified level.
Chapter 11 Specify Your Network Settings 11. 3. LAN Settings 11. 3. 1. Change the LAN IP Address The router is preset with a default LAN IP 192.168.1.1, which you can use to log in to its web-based management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on.
Chapter 11 Specify Your Network Settings 3. Select DHCP to enable the DHCP function and select DHCP Server. 4. Specify the IP Address Pool, the start address and end address must be on the same subnet with LAN IP. The router will assign addresses within this specified range to its clients.
Chapter 11 Specify Your Network Settings 3. Scroll down to locate the Address Reservation table and click to add an address reservation entry for your device. 4. Enter the MAC address of the device for which you want to reserve IP address. 5.
Chapter 11 Specify Your Network Settings ¾ To enable or disable the wireless function: Enable the Wireless Network 2.4GHz or 5GHz. If you don’t want to use the wireless function, just uncheck the box. If you disable the wireless function, all the wireless settings won’t be effective.
Chapter 11 Specify Your Network Settings • 802.11ac/n mixed (5Ghz): Select if you are using both 802.11ac and 802.11n wireless clients. • 802.11a/n/ac mixed (5Ghz): Select if you are using a mix of 802.11a, 802.11n and 802.11ac wireless clients. It is strongly recommended that you select 11a/n/ac mixed. Channel: Select the channel you want to use from the drop-down list.
Chapter 11 Specify Your Network Settings 2. Go to Advanced > Wireless >WPS page. Select the wireless network 2.4GHz or 5GHz according to your wireless client. 3. Keep the default WPS status as Enabled and select the PIN Code radio button. 4.
Chapter 11 Specify Your Network Settings 1. The WPS LED on the router will light green for five minutes if the device has been successfully added to the network. 2. The WPS function cannot be configured if the wireless function of the router is disabled. Please make sure the wireless function is enabled before configuring the WPS.
Chapter 11 Specify Your Network Settings 4. Set the time. Drag the mouse to cover the time area and click Save to make the settings effective. The selected time will be in green 5. Repeat steps 3 and 4 to set time for 5GHz wireless network. Note: 1.
Chapter 11 Specify Your Network Settings 11. 4. 5. Advanced Wireless Settings Advanced wireless settings are for those have a network concept. If you are not familiar with the settings on this page, it’s strongly recommended that you keep the provided default values;...
Chapter 11 Specify Your Network Settings • AP Isolation: Select this checkbox to enable the AP Isolation feature that allows you to confine and restrict all wireless devices on your network from interacting with each other, but still able to access the Internet. AP isolation is disabled by default. •...
Chapter 11 Specify Your Network Settings 11. 6. Create Static Routes A static route is a pre-determined path that network information must travel to reach a specific host or network. Data from one point to another will always follow the same path regardless of other considerations.
Chapter 11 Specify Your Network Settings 4. Click to add a new static routing entry. Finish the settings according to the following explanations: • Destination IP: The destination IP address that you want to assign to a static route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of the router.
Chapter 11 Specify Your Network Settings Router 2 and then to the Server, so the gateway should be 192.168.1.2 • Interface: Determined by the port (LTE/LAN) that sends out the data packets. In the example, the data is sent to the gateway through the LTE port, so LTE should be selected.
Chapter 11 Specify Your Network Settings Site A Site B WAN: 22.214.171.124 WAN: 126.96.36.199 Router 2 Router 1 LAN: 192.168.1.1 LAN: 192.168.2.1 Subnetmask: 255.255.255.0 Subnetmask: 255.255.255.0 PC 2 PC 1 How can I 1. 1. Make sure of the topology you want to build and record do that? site A (local network) and site B (remote network)’s LAN IP and WAN IP.
Chapter 11 Specify Your Network Settings 3 ) In the IPSec Connection Name column, specify a name. 4 ) In the Remote IPSec Gateway (URL) column, Enter Site B’s WAN IP address. 5 ) To configure Site A’s LAN: In the Tunnel access from local IP addresses column, here we take...
Chapter 11 Specify Your Network Settings 8 ) Enter the Pre-Shared Key for IKE authentication. Then keep Perfect Forward Secrecy enabled. Note: The key should consist of visible characters without blank space. Make sure Site A and Site B use the same key. 9 ) Leave the Advanced Settings as default value.
Chapter 11 Specify Your Network Settings If Ping proceeds successfully (gets replies from host in Site B), the IPSec connection is working properly now. Done! Now IPSec VPN is implemented to establish a connection. Note: 1. The product supports a maximum of ten simultaneous connections. 2.
Chapter Administrate Your Network This chapter introduces how to change the system settings and administrate your router’s network. This chapter contains the following sections: • Set System Time and Region • Update the Firmware • Back up and Restore Configuration Settings •...
Chapter 12 Administrate Your Network 12. 1. Set System Time and Region System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls and Wireless Schedule.
Administrate Your Network 12. 2. Update the Firmware TP-LINK is dedicated to improving and enriching the product features, giving you a better network experience. We will release the latest firmware at TP-LINK official website, you can download the latest firmware file from our website: www.tp-link.com...
Chapter 12 Administrate Your Network previous settings from the backup file when needed. Moreover, if needed you can erase the current settings and reset the router to the default factory settings. To back up configuration settings: 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 2.
Chapter 12 Administrate Your Network 3. Enter the old password. Enter the new password and enter again to confirm. 4. Click Save to make the settings effective. 12. 5. Local Management You can control the local devices’ authority to manage the router via Local Management feature.
Chapter 12 Administrate Your Network 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 2. Go to Advanced > System Tools> Administration page. Locate the Remote Management section. 3. Tick the checkbox to enable Remote Management.
Chapter 12 Administrate Your Network To view the system logs: 1. Select the log Type. Select to view all kinds of logs, or select DHCPD IGMP view the specific logs. 2. Select the log Level and you will see the logs with the specific or higher levels. 3.
Chapter 12 Administrate Your Network • Save Locally: Select this option to cache the system log to the router’s local memory, select the minimum level of system log to be saved from the drop-down list. The logs will be shown in the table in descending order on the System Log page. •...
Chapter 12 Administrate Your Network 12. 9. CWMP Settings The router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server). 1. Visit http://tplinkmodem.net, and log in with the password you set for the router. 2.
Chapter 12 Administrate Your Network • Enable CWMP: Toggle On to enable the CWMP (CPE WAN Management Protocol) feature. • Inform: Enable this feature to send an Inform message to the ACS (Auto Configuration Server) periodically. • Inform Interval: Enter the time in seconds when the Inform message will be sent to the ACS.
Chapter 12 Administrate Your Network • Connection Request Port: Enter the port that connects to the ACS server. • Connection Request URL: Enter the URL that connects to the ACS server. • Get RPC methods: Click to get the methods to support CWMP. Click Save to make the settings effective.
Chapter 12 Administrate Your Network • Read Community: Displays the default public community string that protects the router from unauthorized access. • Set Community: Displays the default read and write community string that protects the router from unauthorized changes. • System Name: Displays the administratively-assigned name for this managed device.
Appendix B: Troubleshooting T1. How do I restore my router’s configuration to its factory default settings? With the router powered on, press and hold the WPS/RESET button on the rear panel until the Power LED starts flashing. Note: Once the router is reset, the current configuration settings will be lost and you will need to re-configure the router.
4 ) Click settings, deselect the following three options and click OK; 5 ) Go to Advanced > Restore advanced settings, click to save the settings. Downloaded from www.Manualslib.com manuals search engine...
• Use another web browser or computer and log in again. • Reset the router to factory default settings: With the router powered on, press and hold the WPS/RESET button on the rear panel of the router until the Power LED starts flashing.
2 ) Go to Advanced > Network > Internet to verify the parameters (including the APN, Username and Password) provided by your ISP are correctly entered. If the parameters are incorrect, click Create Profile and enter the correct parameters, then select the new profile from the Profile Name list. 6.
The router support two operation modes, 3G/4G Router Mode and Wireless Router mode. If you already have a modem or your Internet comes via an Ethernet cable from the wall, you can set up the router as a regular wireless router to share the Internet 1.
5. Click the connect icon and then the SSID and MAC will be auto-populated. Configure the Security settings as the AP you choose to be bridged. 6. Click Save to make the settings effective. 7. Go to Advanced > Network >...
2 ) Exit the wireless configuration tool (the TP-LINK Utility, for example); 3 ) Select and right click on My Computer...
5 ) Select Wireless Zero Configuration, right click it, and then select Properties; 6 ) Change Startup type to Automatic, click on Start button and make sure the Service status is Started. And then click OK. Downloaded from www.Manualslib.com manuals search engine...
7 ) Connect to wireless network. ¾ If you can find other wireless network except your own, please follow the steps below: 1. Check the WLAN LED indicator on your router; 2. Make sure your computer/device is still in the range of your router/modem, move closer if it is currently too far away;...
Password/Network Security Key, usually you can only find it on the back of your wireless router/modem; 2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a security key instead, and then type in the Network Security Key/Wireless Password;...
2. Windows was unable to connect to XXXX /Cannot join this network/Taking longer than usual to connect to this network. 1 ) Check the wireless signal strength of your network, if it is weak (1~3 bars), please move the router closer and try again; 2 ) Change the wireless Channel of the router to 1,6,or 11 to reduce interference from other networks;...
Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Reason/remark...
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à...
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information • When product has power button, the power button is one of the way to shut off the product;...
DECLARATION OF CONFORMITY For the following equipment: Product Description: AC750 Wireless Dual Band 4G LTE Router Model No.: Archer MR200 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...
