User Guide

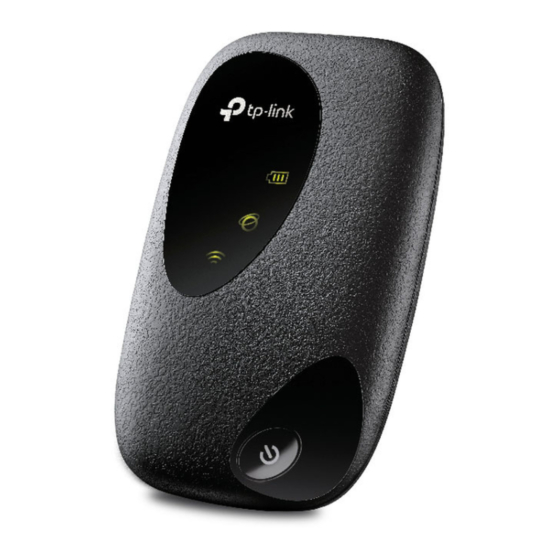

4G LTE Mobile Wi-Fi
M7200
REV2.0.1
1910012754

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7200 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link M7200

Summary of Contents for TP-Link M7200

  • Page 1 User Guide 4G LTE Mobile Wi-Fi M7200 REV2.0.1 1910012754...

  • Page 2: Table Of Contents

    Contents About This Guide ......................1 Chapter 1. Get to Know About Your Mobile Wi-Fi..... . 3 1. 1. Product Overview............3 1.
  • Page 3 6. 1. Translate Address and Port by ALG......... . 28 6.

  • Page 4: About This Guide

    The latest software, management app and utility are available at the Download Center at www.tp-link.com/support. The Quick Installation Guide can be found in the same place you found this guide or inside the package of the Mobile Wi-Fi. Specifications can be found on the product page at https://www.tp-link.com.
  • Page 5 TP-Link Community is provided for you to discuss our products and share knowledge at https://community.tp-link.com. Our Technical Support contact information can be found at Contact Technical Support page at www.tp-link.com/support.
  • Page 6 Chapter Get to Know About Your Mobile Wi-Fi This chapter introduces what the Mobile Wi-Fi can do and its appearance. It includes the following sections: • Product Overview • Physical Description...

  • Page 7: Chapter 1 Get To Know About Your Mobile Wi-Fi

    Artful Little Gadget and Built-in Battery for Life on the Go The TP-Link Mobile Wi-Fi features a compact, elegant design and rechargeable powerful battery very suitable for travel, business trips and outdoor activities. With added flexibility, the device can be charged via a micro USB cable connected to an adapter, laptop or portable charger for endless hours of 4G sharing.

  • Page 8: Physical Description

    Chapter 1 Get to Know About Your Mobile Wi-Fi 1. 2. Physical Description 1. 2. 1. The Exterior Micro USB Port LEDs Power Button LED Explanation Status Indication Wi-Fi is enabled. (Wi-Fi) Wi-Fi is disabled. Internet service is available. (Internet) Internet service is unavailable.

  • Page 9: The Interior

    Chapter 1 Get to Know About Your Mobile Wi-Fi 1. 2. 2. The Interior SIM Card Slot Reset Button Item Explanation Item Description Insert a SIM card into the slot. A micro or nano SIM card must be converted SIM Card Slot using a SIM card adapter.

  • Page 10: Chapter 2. Set Up Internet Connection

    Chapter Set Up Internet Connection This chapter introduces how to install the Mobile Wi-Fi and connect your wireless or smart devices to the internet. It includes the following sections: • Install the Mobile Wi-Fi • Connect to the Internet...

  • Page 11: Install The Mobile Wi-Fi

    Note: • A micro or nano SIM card must be converted using a SIM card adapter. • The SIM card and SIM card adapter are not provided by TP-Link. 3. Install the provided battery. 4. Note down the default SSID and Wireless Password.

  • Page 12: Connect To The Internet

    Chapter 2 Set Up Internet Connection SSID: TP-Link_XXXX Wireless Password: XXXXXXXX 5. Replace the cover. 2. 2. Connect to the Internet 1. Press and hold the Power button until all LEDs are lit. Wait until the Internet turns solid green. Note: •...
  • Page 13 Chapter 2 Set Up Internet Connection 2. Connect your wireless device to the Mobile Wi-Fi using the SSID and the Wireless Password you have noted down. SSID: < Settings Wi-Fi TP-Link_XXXX Wireless Password: Wi-Fi XXXXXXXX CHOOSE A NETWORK... TP-Link_XXXX Other... Note: If you use a computer to connect to the Mobile Wi-Fi, set it to obtain an IP address automatically.

  • Page 14: Chapter 3. Log In

    Chapter Log In This chapter introduces how to log in to the web management page. Demonstrations in this guide use the phone web management interfaces, while some use the PC ones as those functions are only available on the PC web management page.

  • Page 15: Via Phone Login Entry

    Chapter 3 Log In 3. 1. Via Phone Login Entry 1. On your smart phone, visit http://tplinkmifi.net, and log in with the default password: admin. 1. Create a new login password for security purposes and click Done. 2. Use the password you just created for future logins 3.

  • Page 16: Via Tpmifi App

    Chapter 3 Log In 2. Go to Wizard, create a new login password for security purposes and use it for future logins. 3. Follow web instructions to complete the settings. 3. 3. Via tpMiFi App 1. Search “tpMiFi“ at the App Store or Google Play or simply scan the QR code to download the tpMifi app.
  • Page 17 Chapter 3 Log In 2. Connect your device to the Mobile Wi-Fi. 3. Launch the tpMiFi app, and log in with the default password: admin. 4. Create a new password for security purposes and use it for future logins.

  • Page 18: Chapter 4. Manage Your Data Usage

    Chapter Manage Your Data Usage This chapter explains how to manage the data usage of your Mobile Wi-Fi. It includes the following sections: • Track Data Usage • Limit Data Usage • Set Up Free Data Period • Enable Mobile Data •...

  • Page 19: Track Data Usage

    Chapter 4 Manage Your Data Usage 4. 1. Track Data Usage This feature allows you to monitor the amount of data you have used on your Mobile Wi-Fi and revise the displayed data usage as needed. 4. 1. 1. Check Data Usage on the Web Management Page 1.

  • Page 20: Revise Data Usage

    Chapter 4 Manage Your Data Usage 2. Go to SMS. 3. Tap Message. 4. Create a message to your carrier and then tap to send it. And a few minutes later, you will receive a message of data usage information. For the phone number and message content, check from your carrier.

  • Page 21: Limit Data Usage

    Chapter 4 Manage Your Data Usage Note: 1. You can obtain the exact data usage from your carrier. Please refer to Check Data Usage via SMS. 2. The page above displays the monthly data usage if you have enabled Monthly Data Statistics. 4.

  • Page 22: Limit Monthly Data Usage

    Chapter 4 Manage Your Data Usage 6. Tap Done. Done! Now your data usage is limited according to your settings. 4. 2. 2. Limit Monthly Data Usage I want to: Limit my data usage so that I will not exceed my monthly data package (800MB). I wish to: 1.

  • Page 23: Set Up Free Data Period

    Chapter 4 Manage Your Data Usage 7. Tap Done. Done! Now your data usage is limited according to your settings. 4. 3. Set Up Free Data Period In the free data period, you will not be charged for data by the mobile carrier. If your carrier has provided this data service to you, you can specify the free data period during, so the data usage will not be counted for data alert and limitation.

  • Page 24: Enable Mobile Data

    Chapter 4 Manage Your Data Usage 5. Tap Done. 4. 4. Enable Mobile Data With Mobile Data (also known as cellular data) enabled, devices connected to the Mobile Wi-Fi can access the internet. This feature is enabled by default. 1. Visit http://tplinkmifi.net, and log in with the password you set for the Mobile Wi-Fi.

  • Page 25: Enable Data Roaming

    Chapter 4 Manage Your Data Usage 4. 5. Enable Data Roaming If you are out of your carrier’s service area, the icon will appear on the Mobile Wi-Fi’s PC management page, and you will need to enable data roaming to access the internet.

  • Page 26: Chapter 5. Secure Your Network

    Chapter Secure Your Network This chapter explains how to secure your network in various ways. You can change the SSID, manage the blacklist and lock your SIM card to safeguard your network. It includes the following sections: • Secure Wireless Network •...

  • Page 27: Secure Wireless Network

    Chapter 5 Secure Your Network 5. 1. Secure Wireless Network The SSID (wireless network name), wireless password of the Mobile Wi-Fi and security options are preset as default. The default SSID and password can be found inside the back cover of your Mobile Wi-Fi. You can customize the wireless settings as needed.

  • Page 28: Block Unwelcome Devices

    Chapter 5 Secure Your Network 5. 2. Block Unwelcome Devices This feature allows you to restrict unwelcome devices to accessing the wireless network of your Mobile Wi-Fi. 1. Visit http://tplinkmifi.net, and log in with the password you set for the mobile Wi-Fi.
  • Page 29 Chapter 5 Secure Your Network as a smartphone or tablet) with this SIM card inserted, you need to enter the PIN code to access the internet. If you don’t wish to enter the PIN code when using this SIM card on your Mobile Wi-Fi, you can enable the Auto-unlock PIN upon Power-on function.
  • Page 30 Chapter 5 Secure Your Network 4. Once enabled, you can save the trouble of entering the PIN code on your Mobile Wi-Fi upon power-on. • To reset PIN code: 1. On your computer or tablet, visit http://tplinkmifi.net, and log in with the password you set for the Mobile Wi-Fi.

  • Page 31: Chapter 6. Nat Forwarding

    TP-Link Mobile Wi-Fi includes four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Virtual Servers, Port Triggering, UPNP and DMZ.

  • Page 32: Translate Address And Port By Alg

    Chapter 6 NAT Forwarding 6. 1. Translate Address and Port by ALG ALG (Application Layer Gateway) allows customized NAT (Network Address Translation) traversal filters to be plugged into the gateway to support address and port translation for certain application layer “control/data” protocols: FTP, TFTP, H323 etc. Enabling ALG is recommended.

  • Page 33: Share Local Resources Over The Internet By Virtual Server

    Chapter 6 NAT Forwarding 6. 2. Share Local Resources over the Internet by Virtual Server When you build up a server in the local network and want to share it on the internet, Virtual Server can realize the service and provide it to the internet users. At the same time virtual server can keep the local network safe as other services are still invisible from the internet.

  • Page 34: Open Ports Dynamically By Port Triggering

    Chapter 6 NAT Forwarding 4. Click View Existing Applications, and choose HTTP. The external port, internal port and protocol will be automatically filled with contents. Enter the PC’s IP address 192.168.0.100 in the Internal IP field. 5. Click to save the settings. Tips: 1.

  • Page 35: Make Applications Free From Port Restriction By Dmz

    Chapter 6 NAT Forwarding applied to online games, VoIPs and video players. Common applications include MSN Gaming Zone, Dialpad, Quick Time 4 players, and so on. Follow the steps below to configure the port triggering rules: 1. On your computer or tablet, visit http://tplinkmifi.net, and log in with the password you set for the Mobile Wi-Fi.

  • Page 36: Make Xbox Online Games Run Smoothly By Upnp

    Chapter 6 NAT Forwarding applications, like IP camera and database software, you can set the PC to be a DMZ host. Note: DMZ is most applicable when you don’t know which ports to open. When it is enabled, the DMZ host is totally exposed to the internet, which may bring some potential safety hazard.
  • Page 37 Chapter 6 NAT Forwarding to use applications such as multiplayer gaming, peer-to-peer connections, real-time communication (for example, VoIP or telephone conference), or remote assistance. Tips: 1. UPnP is enabled by default in this Mobile Wi-Fi. 2. Only the application supporting UPnP protocol can use this feature. 3.

  • Page 38: Chapter 7. Customize Your Network

    Chapter Customize Your Network This chapter guides you on how to configure network settings of your Mobile Wi-Fi. It contains the following sections: • Specify Network Mode • Configure Dial-up • Configure DHCP Server...

  • Page 39: Specify Network Mode

    Chapter 7 Customize Your Network 7. 1. Specify Network Mode This Mobile Wi-Fi supports three modes of network connection: 4G Preferred, 4G Only and 3G Only. If your SIM card supports WCDMA, select 3G Only; if your SIM card supports FDD-LTE or TDD-LTE, select 4G Preferred or 4G Only as needed.

  • Page 40: Configure Dial-Up

    Chapter 7 Customize Your Network 7. 2. Configure Dial-up 7. 2. 1. Configure Dial-up Settings If you are in a location beyond your mobile carrier’s service area, you may need to configure the dial-up settings to access the internet provided by a local mobile carrier.

  • Page 41: Configure Network Search

    Chapter 7 Customize Your Network 3. You can click View profile details to check the current profile. If any parameter is wrong, you can click Create to build a new one. 7. 2. 2. Configure Network Search The Mobile Wi-Fi provides two types of network connection: Auto and Manual. •...
  • Page 42 Chapter 7 Customize Your Network 2. If you have changed the IP address of your Mobile Wi-Fi, you should use the new IP address or http://tplinkmifi.net to log in to the web management page. 4. Enter the lease time in the Lease Time field.

  • Page 43: Chapter 8. Manage Your Mobile Wi-Fi

    Chapter Manage Your Mobile Wi-Fi This chapter presents how to manage and maintain your Mobile Wi-Fi. It includes the following sections: • Save the Mobile Wi-Fi’s Power • Change Login Password • Set Up System Time • Restore Configuration Settings •...

  • Page 44: Save The Mobile Wi-Fi's Power

    Chapter 8 Manage Your Mobile Wi-Fi 8. 1. Save the Mobile Wi-Fi’s Power The Power Saving feature allows you to slow down the power consumption of your Mobile Wi-Fi, by adjusting the Wi-Fi range or enabling the Wi-Fi Auto- disable Time feature. 1.

  • Page 45: Change Login Password

    Chapter 8 Manage Your Mobile Wi-Fi 3. Tap Done. If there are no devices connected to the Mobile Wi-Fi for the time your specified, the Wi-Fi will be disabled automatically. Note: To resume the Wi-Fi, press the Power button. 8. 2. Change Login Password This feature allows you to change your login password of the web management page.

  • Page 46: Set Up System Time

    Chapter 8 Manage Your Mobile Wi-Fi 8. 3. Set Up System Time The system time you configure here will be used for time-based functions. Note: Make sure your Mobile Wi-Fi has access to the internet. Otherwise, it can not synchronize the current time. 1.

  • Page 47: Update The Firmware

    8. 5. Update the Firmware TP-Link is committed to improving product features, giving you a better network experience. We will inform you web management page if there’s any newly released update firmware. Also, you can download it from the Support page of our website www.tp-link.com.

  • Page 48: Update Isp Parameters

    Update ISP Parameters You can update the ISP information. 1. Download the latest ISP update file from the Support page at www.tp-link.com. 2. On your computer or tablet, visit http://tplinkmifi.net, and log in with the password you set for the Mobile Wi-Fi.

  • Page 49: System Log

    Chapter 8 Manage Your Mobile Wi-Fi 8. 7. System Log When the Mobile Wi-Fi does not work normally, you can save the system log and send it to our technical support for troubleshooting. • To save the system logs locally: 1.

  • Page 50: Faq

    Q1. What should I do if I cannot log in to the web management page? • Verify that your device is connected to the Mobile Wi-Fi’s SSID. • Verify that you have entered http://tplinkmifi.net http://192.168.0.1 correctly. • Verify that your computer is set to obtain an IP address automatically. Q2.
  • Page 51 Q4. How do I reset the Mobile Wi-Fi to its factory default settings? • With the Mobile Wi-Fi powered on, remove the cover. Use a pin to press and hold the Reset button until all LEDs turn on momentarily. • On your computer or tablet, log in to the Mobile Wi-Fi’s web management page.
  • Page 52 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
  • Page 53 WCDMA: (24dBm+1/-3dB) LTE: (23dBm+2/-2dB) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/ EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the...
  • Page 54 電信規定作業之無線電信。低功率射頻電機需忍受合法通信或工業、科學以及醫 療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 BSMI Notice 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清 潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆 蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉 位置中。 • 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此 項工作。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件名稱 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 CrVI PBDE ○ ○ ○ ○ ○ ○ 外殼 ○...
  • Page 55 • Do not use any other chargers than those recommended • Do not use the device where wireless devices are not allowed. • Do not disassemble, crush, puncture, short external contacts, or dispose of the battery in fire or water. •...
