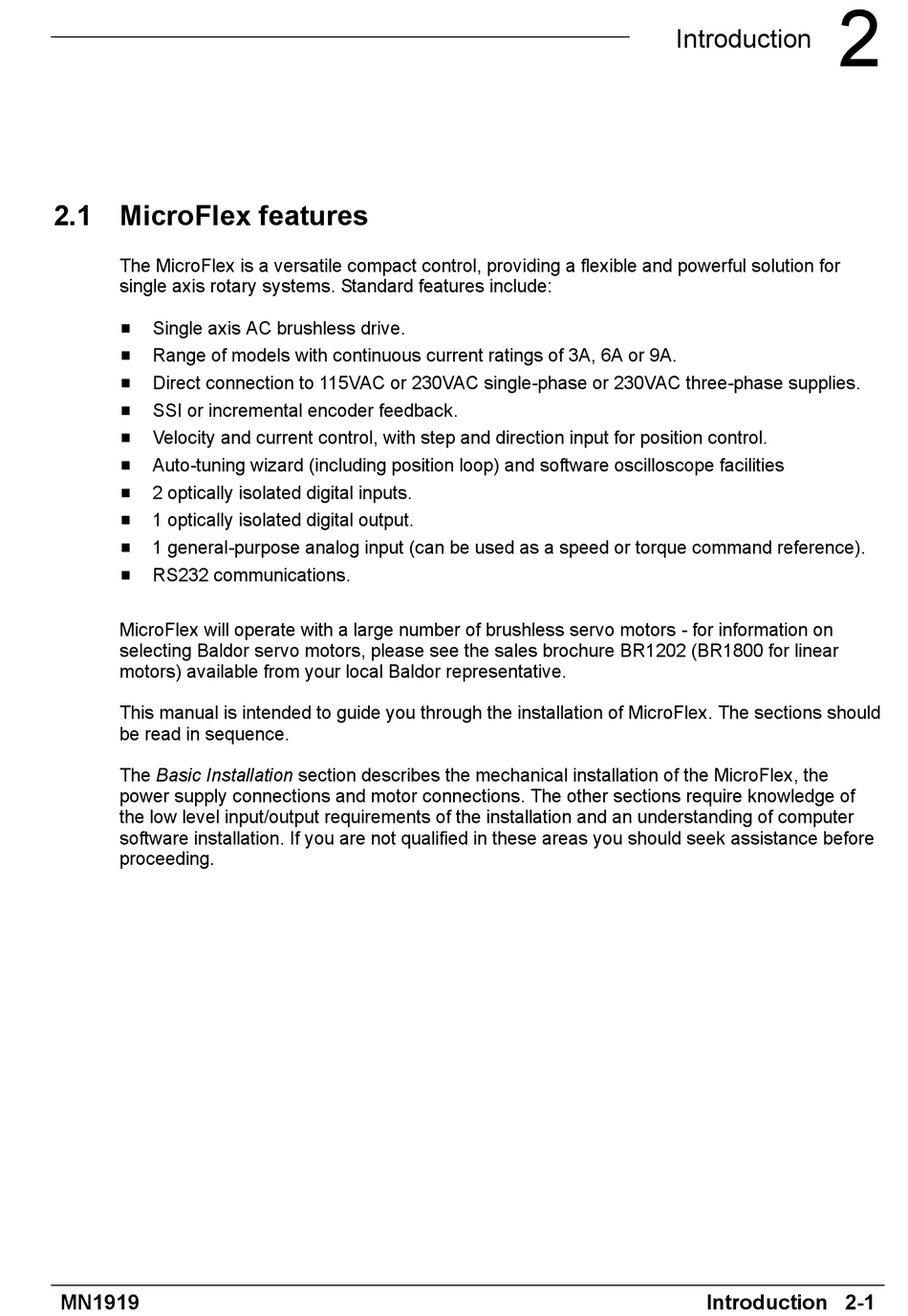

2.1 MicroFlex features

The MicroFlex is a versatile compact control, providing a flexible and powerful solution for
single axis rotary systems. Standard features include:
Single axis AC brushless drive.
H
Range of models with continuous current ratings of 3A, 6A or 9A.
H
Direct connection to 115VAC or 230VAC single-phase or 230VAC three-phase supplies.
H
SSI or incremental encoder feedback.
H
Velocity and current control, with step and direction input for position control.
H
Auto-tuning wizard (including position loop) and software oscilloscope facilities
H
2 optically isolated digital inputs.
H
1 optically isolated digital output.
H
1 general-purpose analog input (can be used as a speed or torque command reference).
H
RS232 communications.
H
MicroFlex will operate with a large number of brushless servo motors - for information on
selecting Baldor servo motors, please see the sales brochure BR1202 (BR1800 for linear
motors) available from your local Baldor representative.
This manual is intended to guide you through the installation of MicroFlex. The sections should
be read in sequence.
The Basic Installation section describes the mechanical installation of the MicroFlex, the
power supply connections and motor connections. The other sections require knowledge of
the low level input/output requirements of the installation and an understanding of computer
software installation. If you are not qualified in these areas you should seek assistance before
proceeding.
