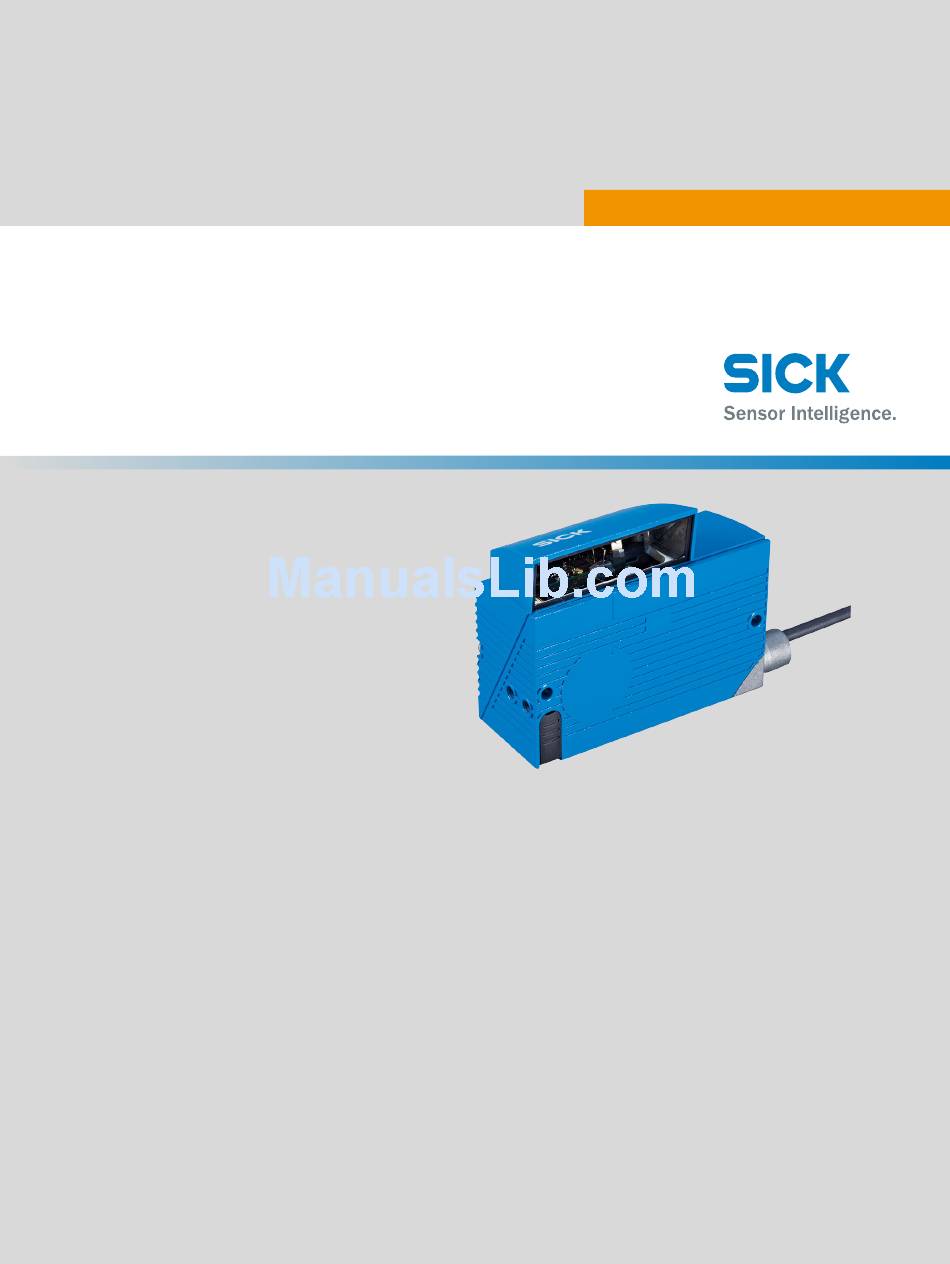

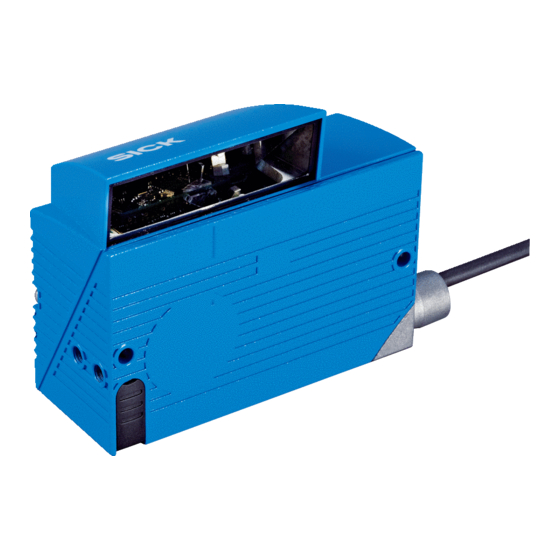

O P E R A T I N G I N S T R U C T I O N S
CLV61x Dual Port (PROFINET)
Bar code scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLV61x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK CLV61x

Summary of Contents for SICK CLV61x

  • Page 1 O P E R A T I N G I N S T R U C T I O N S CLV61x Dual Port (PROFINET) Bar code scanner...
  • Page 2 This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 3: Table Of Contents

    Install and launch the SOPAS ET configuration software...... Adjust the device..................8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 4 14.7 List of figures.................... 14.8 List of tables....................O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...

  • Page 5: About This Document

    8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 6: Further Information

    Before calling, make a note of all type label data such as type designation, serial num‐ ber, etc. to ensure faster telephone processing. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 7: Safety Information

    8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 8: Limitation Of Liability

    The following qualifications are required for various activities: O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 9: Hazard Warnings And Operational Safety

    The entire reading window is a laser output aperture. 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 10 During GSD configuration with the "10_Object Trigger Ctrl" module. At the default setting, laser timeout is deactivated. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 11: Switching Off The Device

    SICK AG. 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 12: Product Description

    2: Line scanner, reading window on side 3: Grid scanner, reading window on side O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 13: Product Characteristics

    M5 blind tapped holes, 5 mm deep (2 x), for mounting the device 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 14 Cover for USB connection, female connector, 4-pin, Micro B type ã O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 15 Scanner Decoder Interfaces Diagnostics 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 16 Trigger input, type-dependent (CLV61x-Dx52x) ■ O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...
  • Page 17 POWER + trigger input connection (female connector, M12, 5-pin, A-coded) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 18 Various installation options via comprehensive range of mounting accesso‐ ■ ries O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...

  • Page 19: Transport And Storage

    8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 20: Mounting

    "Dimensional drawings", page O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 21 (SICK accessories). Illustration of the device may differ. Plastic insulation panes 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 22: Mounting Location

    (reading field height) depends on the reading distance. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 23 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 24: Avoiding Surface Reflections On The Example Line Scanner: Angle Between Light Emitted And Bar Code (Tilting Away From Vertical)

    Figure 14: Example for count direction and RA value determination in a device with a side read‐ ing window O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 25: Mounting The Device

    "Adjust the device", page 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 26: Electrical Installation

    Only operate in idle state (no mounting or connection work). ■ O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 27: Prerequisites For The Safe Operation Of The Device In A System

    This is achieved by complying with the following conditions, for example: 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 28: Occurrence Of Equipotential Bonding Currents In The System Configuration

    EN 60950-1. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 29 Insulated mounting Grounding point 2 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 30: Pin Allocation Of The Connections

    (Do not use.) Ground O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...
  • Page 31 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 32: Wiring The Profinet Interface

    Cable 1:1 (male connector, M12, 4-pin, D-coded / male connector, M12, 4-pin, D-coded) Reading cycle trigger (local) O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 33 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 34: Commissioning

    SOPAS ET establishes communication with the device and loads the associated device description file. The device project tree opens. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 35: Adjust The Device

    Tighten the screws on the device. 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 36: Operation

    After switching on: Parameter download to the device O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...
  • Page 37 BF = Bus Failure 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 38: Maintenance

    Avoid any movements that could cause scratches or abrasions on the reading win‐ dow. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 39 SICK must be arranged immediately due to safety reasons. 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 40 Figure 23: Cleaning the external optical sensors (read pulse encoder) O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 41: Troubleshooting

    (see "Status log", page 42). 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 42: Status Log

    Do not dispatch devices to the SICK Service department without consultation. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 43 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 44: Decommissioning

    SICK AG does not currently take back devices that cannot be repaired. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 45: Technical Data

    1 x hardware (type-dependent, CLV61x-Dx52x) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 46: Mechanics/Electronics

    Devices with integrated heating: ‒35 °C ... +40 °C O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 47: Reading Fields

    Reading distance in mm (inch) Resolution 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 48 Reading distance in mm (inch) Resolution O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...
  • Page 49 Reading distance in mm (inch) Resolution 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 50: Accessories

    • Part no. 2058082 O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...

  • Page 51: Dimensional Drawings Brackets

    Width across flats, size 3 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 52 ACCESSORIES Mounting bracket O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK Subject to change without notice...

  • Page 53: Appendix

    Properties of the CC-B 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 54: Configuration Of The Device Using Command Strings

    <STX> and <ETX> are omitted. O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...

  • Page 55: Eu Declaration Of Conformity

    Structure and device dimensions with reading window on side (in mm or inch)... 14 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...

  • Page 56: List Of Tables

    15. Technical data on ambient data................46 16. Reading conditions for reading field diagrams............47 O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) 8017842/ZMG5/2017-06-12 | 8M_DR | SICK...
  • Page 57 APPENDIX 8017842/ZMG5/2017-06-12 | 8M_DR | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x Dual Port (PROFINET) Subject to change without notice...
  • Page 58 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 4033 8333 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
