Summary of Contents for CDA HN7242FR

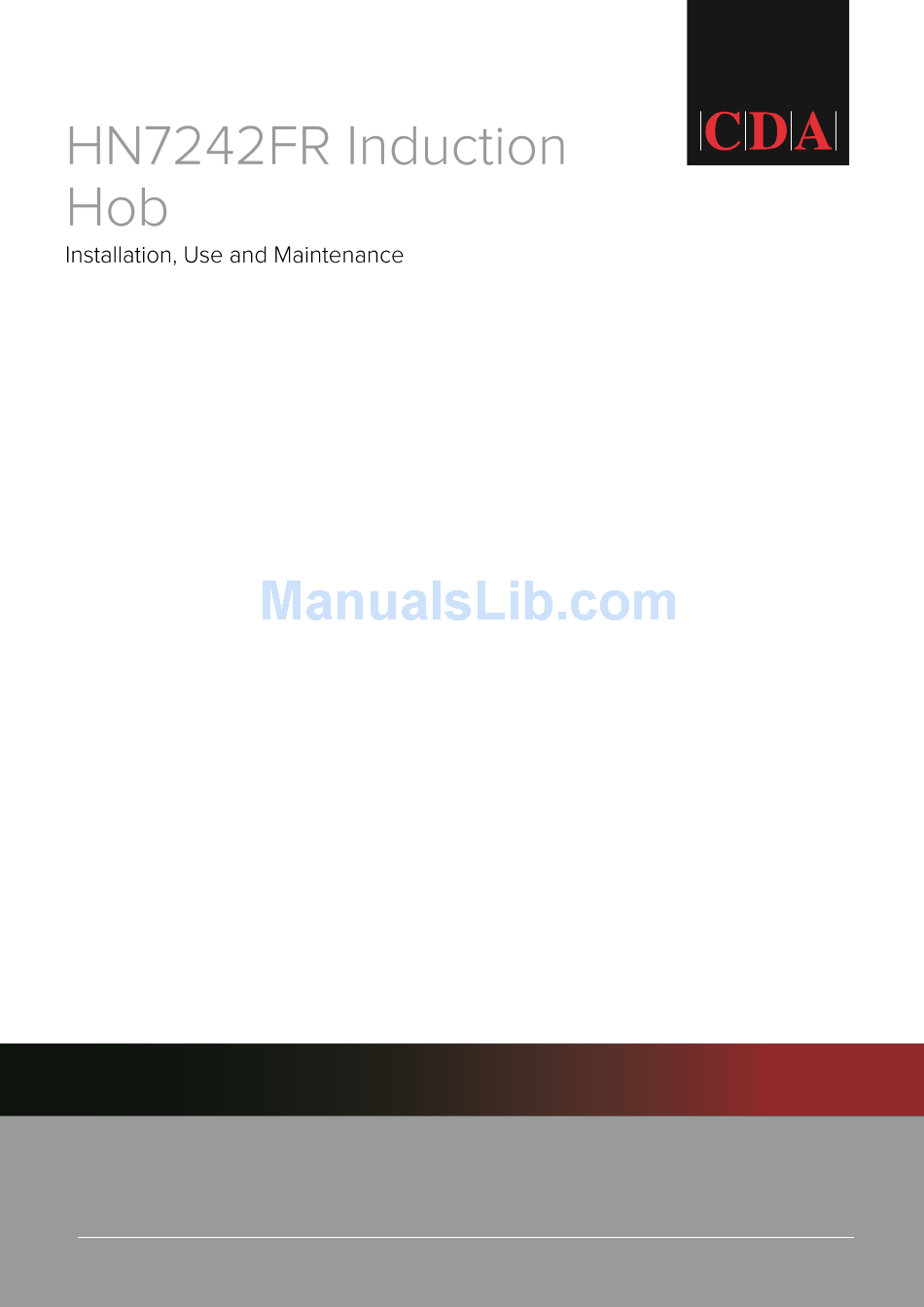

- Page 1 Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
- Page 2 The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
-
Page 3: Table Of Contents
Dear customer, Thank you for having chosen our induction hob. In order to make the best use of your appliance, we would advise you to carefully read the following notes and to keep them in a safe place for future reference. SUMMARY SAFETY ............................ -
Page 4: Safety
SAFETY Precautions before using Unpack all the materials. The installation and connection of the appliance has to be done by approved specialists. The manufacturer cannot be responsible for damage caused by errors in installation. To be used, the appliance must be correctly installed in a kitchen unit and an approved work surface. -
Page 5: Precautions Not To Damage The Appliance
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Do not place any metallic object except heating containers on the glass surface. Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire. -
Page 6: Precautions In Case Of Appliance Failure
Never place any hot container over the control panel. If a drawer is situated under the appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2 cm minimum). This is essential to guarantee correct ventilation. -
Page 7: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical data Type HN7242FR Total power 3700 W Energy consumption for the hob EC 167.1 Wh/kg Left heating zone Ø 215 mm Minimum detection Ø 100 mm Nominal power* 2000 W Booster power* 2300 W Standardised cookware category** Energy consumption EC 167.4 Wh/kg... -
Page 8: Display
Display Display Designation Function Zero The heating zone is activated 1…9 Power level Selection of the cooking level Heat accelerator Automatic cooking Booster The booster function is active Pan Detection No pan or inadequate pan Error message Electronic failure Residual heat The heating zone is hot Ventilation The cooling system is fully automatic. -
Page 9: Pan Detection
Start-up/ switch off the heating zone : Action Control panel Display Increase power Press key [ + ] [ 4 ] to [ 9 ] Decrease power Press key [ - ] [ 9 ] to [ 1 ] Stop Press [ + ] and [ - ] simultaneously [ 0 ] or [ H ]... -
Page 10: Automatic Cooking
To stop the cooking time Action Control panel Display To select « Timer » Press key [ The remaining time To stop the « Timer » Press key [ - ] then [ Displays [ 00 ] then stops If both zones are being timed then you must repeat this operation. -
Page 11: Control Panel Locking
Safety key lock To avoid accidental use or activation of the appliance, for example whilst cleaning the hob, the control panel can be locked (with exception to the on/off [ ] key). Locking Action Control panel Display Start Press key [ [ 0 ] or [ H ] on displays Hob locking Press key [... -
Page 12: Cooking Advices
COOKING ADVICES Pan quality Suitable materials: cast iron (these can scratch the hob), ferromagnetic stainless-steel, aluminium with ferromagnetic bottom Unsuitable materials: aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain The cookware manufacturers usually specify whether their products are suitable to induction. To check if pans are compatible: ... -
Page 13: Examples Of Power Setting
Examples of power level setting and use (the values below are for guidance only) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steaming Vegetables, fish, meat... - Page 14 5) Take your fingers away from the keys and press again the [ - ] key during a few seconds until some [ E ] appear. 6) You will hear a "beep" sound and the [ E ] will blink. 7) The [ E ] are automatically transformed into [ C ] →...
-
Page 15: Environment Protection
The control panel displays [ E3 ] ou [ E7 ] : The pan is not recognised, change the pan. If one of the symbols above persists, call customer care/after sales service. -
Page 16: Maintenance And Cleaning
MAINTENANCE AND CLEANING Switch-off the appliance before cleaning. Do not clean the hob if the glass is too hot because there is a risk of burns. Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly. -
Page 17: Installation Instructions
INSTALLATION INSTRUCTIONS The installation must be performed by a qualified electrical contractor. The contractor should take entire responsibility for the installation. The installation has to comply with the legislation and the standards in force in your country. How to apply the gasket: The gasket supplied with the hob prevents the intrusion of liquids into the cabinet below. -
Page 18: Electrical Connection
ELECTRICAL CONNECTION The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician who operates in conformance with the normative regulations. Protection against the parts under tension must be ensured after installation. ... - Page 20 Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY www.cda.eu Copyright © CDA 2016...
