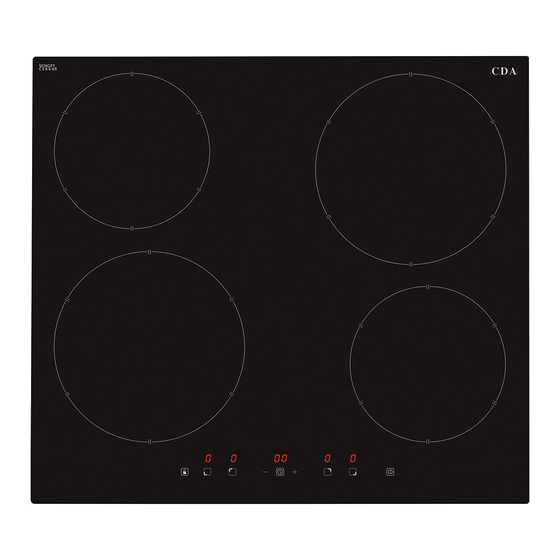

- Page 1 HN6111/6412 Induction hob Installation, use and maintenance www.cda.eu...
-
Page 2: Table Of Contents
Contents: Important information Important safety warnings/notes Important notes for safety, use and care Pacemaker and active implants information Important safety warnings Cooking on induction (and pan compatibility) Hob layout Using your hob Booster function Operating time limiter Auto-heat function Timer/minute minder Keep warm function Safety key lock Residual heat indicator(s) - Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 4: Important Information
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. - Page 5 To avoid interference between your hob and a pacemaker, your pacemaker must be designed and programmed in compliance with the regulations that apply to it. As such, CDA guarantee only that our product is compliant. With regard to the compliance of the pacemaker or any potential incompatibility, you should obtain information from the manufacturer or your attending physician.
-
Page 6: Cooking On Induction (And Pan Compatibility)
Cooking on Induction The principle of induction cooking is based on magnetic effect. When you put your cookware on an induction zone and switch it on, the electronic boards in the hob produce induced currents in the base of the cookware and instantly raise its temperature. This heat is then transferred to the food inside the cookware. -
Page 7: Using Your Hob
3. Back right 2 - 3kW 220 mm 2. Back left 1.2 - 1.4kW 180 mm 4. Front right 1.2 - 1.4kW 180 mm Fig. 2 - CONTROL PANEL FROM HN6111. APPEARANCE DIFFERS FROM HN6412 BUT FUNCTIONS THE SAME Control panel (Fig. 2): 5. On/off sensor 10. - Page 8 Using your hob To switch the hob on • To switch the power on, touch and hold the "On/off sensor" (5) approximately two seconds. The hob will beep and all four cooking zone indicators will show “0”. Please note: If a zone is not selected nor a power level set within ten seconds, the hob will switch off automatically.
-
Page 9: Booster Function
To turn the power off to a zone • To switch off a zone, touch the cooking zone selector (9) so that the cooking zone indicator (7) pulsates. Then press and hold the cooking zone selector (9) for approximately three seconds. The cooking zone indicator will display a "0"... -
Page 10: Operating Time Limiter
Please note: The booster function cannot be used on two vertically arranged cooking zones at the same time. This is to prevent damage to the internal modules caused by overheating. If the appliance's electronic circuits or induction coils overheat whilst the booster function is in operation then the function will be automatically deactivated and the zone will continue to operate at its nominal power. -
Page 11: Auto-Heat Function
Operating time limiter durations Zone heat setting Maximum operating time (minutes) Auto-heat function • Every zone is equipped with an auto-heat function, which reduces the warming up time for the zone. To turn on the auto-heat function, touch the cooking zone selector (9) for the required zone, then set the desired heat setting using the "+"... -
Page 12: Timer/Minute Minder
Timer/Minute minder The hob is equipped with a timer that allows a finish time to be set for the end of cooking on any zone, between a minimum of 1 minute and a maximum of 99 minutes. This timer can be used separately for each zone, and an LED will indicate the zone positions for each of the active timers. - Page 13 Please note: The timer duration can be adjusted at any time during the countdown. Simply touch the relevant cooking zone selector (9) so that the zone indicator (7) pulsates, then press the timer sensor (10) within 10 seconds and adjust the minutes using the higher (6) and lower (8) heat setting selectors.
-
Page 14: Keep Warm Function
Keep warm function Each zone is equipped with a keep warm function that is designed to keep food at a stable temperature. This allows the serving of food to be delayed. The "Keep warm" function is available between "0" and "1" heat settings and is shown on a cooking zone indicator as "... -
Page 15: Residual Heat Indicator(S)
Please note: Disconnecting the appliance from the mains will deactivate the safety key lock. To activate the safety key lock To switch on the lock, turn on the hob and touch the safety key lock sensor (11) for approximately 5 seconds. The safety key lock indicator light (13) should illuminate. -
Page 16: Efficient Use Of Your Hob
Efficient use of your hob The hob is equipped with zones designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms and choose an appropriate zone depending on the size of the pan. The most efficient use of the hob is shown below, where the pan and zone are correctly chosen. -
Page 17: Care And Maintenance
Care and maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. Important: • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 18 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the hob please advise CDA Customer Care. Contact CDA Customer Care...
-
Page 19: Troubleshooting
Troubleshooting Problem Possible Causes Possible Remedy The appliance does not The appliance has no Check the fuse and work and no indicators are power replace if blown. lit. Appliance is not turned on Turn on the appliance A sensor field has been Touch the sensor field touched too briefly (less again and for longer... - Page 20 Should any error code show on the zone displays, or the above steps not resolve an issue, please contact CDA Customer Care for assistance. Contact details are on page 18. IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking –...
-
Page 21: Fitting The Hob (Ventilation, Furniture Requirements Etc.)
Fitting the hob Unpacking the hob: Installation above a cupboard unit Take care not to lose, drop or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 55mm away from any adjacent vertical surfaces, e.g. a tall cupboard end panel. - Page 22 If fitting a cooker hood above the hob: If a cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the instructions supplied with the hood dictate that the hood must be installed at a height greater than 600mm, then that height is the minimum required.
- Page 23 Important notes: • Never place perishable foods, cleaning products or flammable items in the cupboard below the appliance. • If an oven is to be installed below the hob, the thermal safety system on the hob may not allow the hob to be used at the same time as a pyrolytic programme on the oven.
- Page 24 2. Make sure that the worktop is clean and dust free and insert the hob into the cut-out opening. Press the hob firmly into place so that the seal connects with 1 - Worktop the worktop (Fig. 7). 2 - Hob seal 3 - Induction hob Fig.7 Rear wall...
-
Page 25: Mains Electrical Connection
Mains electrical connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown Neutral N: BU - blue Earth PE: GNYE -green/yellow This appliance is intended to be... - Page 26 • This appliance is intended to be connected to the mains supply with a cable of cross sectional area 4mm 2 . • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. •...
-
Page 27: Energy Efficiency Information
