Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
EDS-728/828

Moxa EtherDevice Switch

Edition 4.0, February 2017
Technical Support Contact Information
www.moxa.com/support
 2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802008280013
*1802008280013*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDS-828 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies EDS-828

Summary of Contents for Moxa Technologies EDS-828

  • Page 1: Moxa Etherdevice Switch

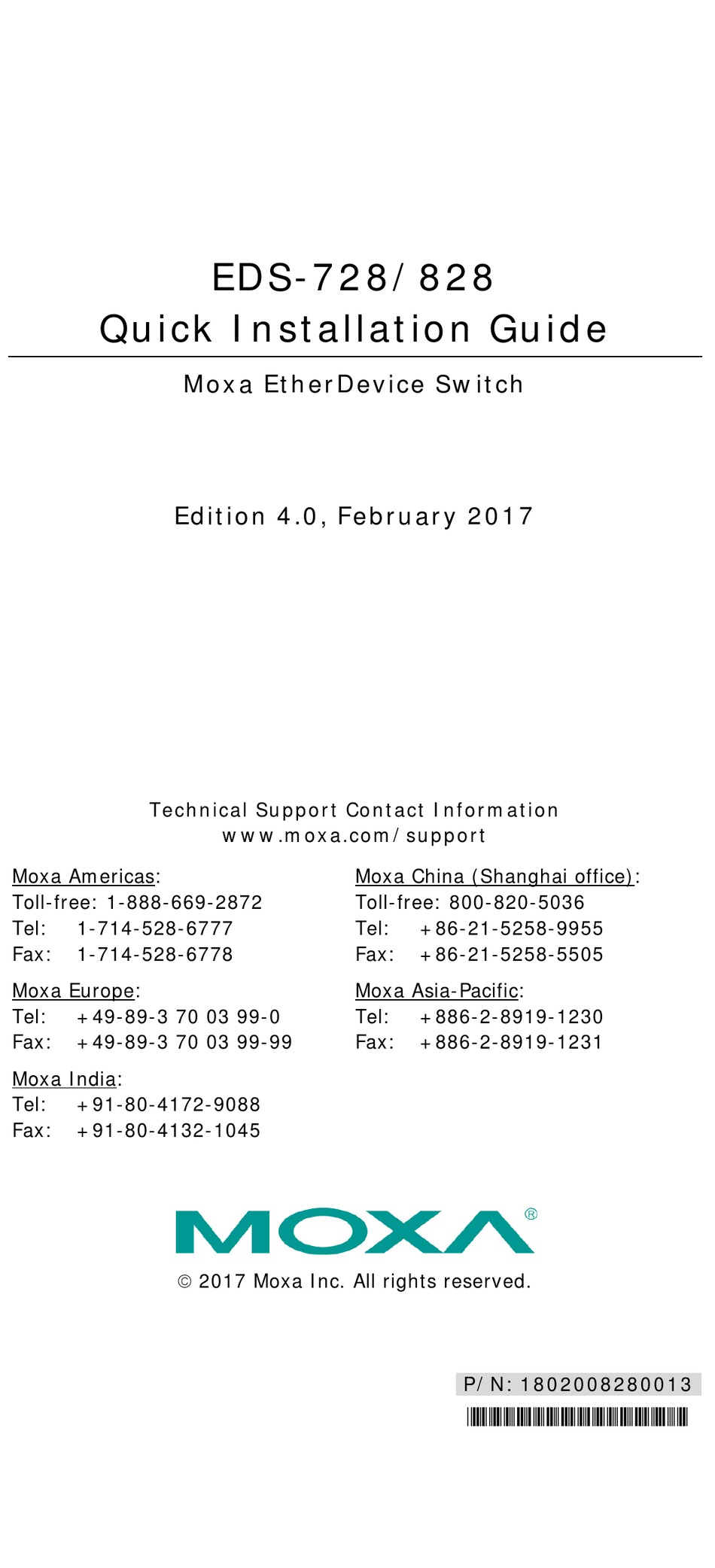

    EDS-728/828 Quick Installation Guide Moxa EtherDevice Switch Edition 4.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...
  • Page 2 EDS-728/828 Series Panel Layout 1. System status LEDs 2. Push-button switch to select mode for Interface Module 3. Interface Module mode LEDs 4. Fast Ethernet Interface Module port LEDs 5. Terminal block for 2 power inputs, 2 DIs, and 2 DOs 6.

  • Page 3: Mounting Dimensions (Unit = Mm)

    Mounting Dimensions (unit = mm) DIN-Rail Mounting The DIN-Rail attachment plates are permanently fixed to the back panel of the EDS-728/828. Do not attempt to remove the attachment plates, since doing so could damage the product. To Install: Lock the brace by pressing the clips and then insert the top of the DIN-Rail into the notches at the bottom of the top array of heat radiating ribs.

  • Page 4: Wall Mounting (Optional)

    To Release: Use a flat-blade screw driver as a lever to force the braces downwards, and then pull the EDS-728/828 out away from the DIN-Rail. Wall Mounting (optional) For some applications, you will find it convenient to mount the EDS-728/828 on the wall, as illustrated below. STEP 1: Remove the aluminum DIN-Rail attachment plate from the EDS-728/828’s rear panel, and then attach the wall mounting plates, as shown in the diagram.

  • Page 5: Wiring Requirements

    NOTE Before tightening the screws into the wall, make sure the screw head and shank size are suitable by inserting the screw into one of the keyhole-shaped apertures of the Wall Mounting Plates. Do not screw the screws in all the way—leave about 2 mm to allow room for sliding the wall mount panel between the wall and the screws.

  • Page 6: Wiring The Relay Contact

    You should also pay attention to the following guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring in the same wire conduit.

  • Page 7: Wiring The Redundant Power Inputs

    Wiring the Redundant Power Inputs The EDS-728/828 has two sets of power input—power input 1 and power input 2. The top two contacts and the bottom two contacts of the 6-pin terminal block connector on EDS’s top panel are used for EDS’s two digital inputs.

  • Page 8: Pin Description

    10-pin RJ45 Console Pinouts 10-Pin Description – – – – 10/100BaseT(X) Ethernet Port Connection Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal Signal 1000BaseT Ethernet Port Connection 1000BaseT data is transmitted on differential TRD+/- signal pairs over copper wires.

  • Page 9: Led Indicators

    ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. LED Indicators Color State Description System LEDs System has passed self-diagnosis test on boot-up and is ready to run. GREEN STAT Blinking System is undergoing the self-diagnosis test.
  • Page 10 Color State Description Mode LEDs The corresponding module port’s link is active. LNK/ The corresponding module port’s data is GREEN Blinking being transmitted. The corresponding module port’s link is inactive. The corresponding module port’s data is being transmitted at full duplex. FDX/ GREEN The corresponding module port’s data is not...

  • Page 11: Specifications

    Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, Modbus TCP, LLDP, IEEE 1588 PTP, IPv6 EDS-828: RIP V1/V2, OSPF, VRRP MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2.3, Flow Control IEEE802.3x flow control/back pressure...
  • Page 12 Power Input Voltage 24 VDC (12 to 45 VDC), redundant dual inputs Connection Two removable 6-pin terminal blocks Power EDS-72810G/82810G 22.9 W Consumption IM-4TX 2.5 W IM-2MSC/2TX IM-2MST/2TX IM-2SSC/2TX IM-4MSC 7.2 W IM-4MST 7.2 W IM-4SSC 7.2 W IM-1LSC/3TX IM-2GTX IM-2GSFP Overload Current Present...
  • Page 13 Optical Fiber/SFP-1GxxxLC Series SFP Modules: Wavelength 850 nm 1310 nm 1310 nm 1310 nm Max. Tx -4 dBm -3 dBm 1 dBm +5 dBm Min. Tx -9.5 dBm -9.5 dBm -4 dBm 0 dBm Rx Sensitivity -18 dBm -20 dBm -24 dBm -24 dBm Link Budget...
  • Page 14 IM-1LSC/3TX: Interface Module with 1 single mode 100BaseFX port, 80 km SC connector and 3 10/100BaseT(X) ports, RJ45 connectors. IM-4TX IM-4MSC, IM-4MST IM-2MSC/ IM-2MST/ IM-1LSC/ IM-4SSC, IM-2SSC/ Interface LED Indicators PWR, P1, P2, P3, P4 port status RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Distance 100 m...

  • Page 15: Regulatory Approvals

    Environmental Operating 0 to 60°C (32 to 140°F) Temperature Storage -40 to 85°C (-40 to 185°F) Temperature Ambient Relative 5 to 95% (non-condensing) Humidity Regulatory Approvals Safety UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 Hazardous UL/cUL Class I, Division 2, Groups A, B, C and D Location (Pending) ATEX Class I, Zone 2, EEx nC IIC (Pending)
