Programming software „GridVis"
The UMG511 can be programmed and read out
using the GridVis programming software (Down-
load: www.janitza.com). In order to do so, a PC
must be connected to the UMG511 using a serial
interface (RS485/Ethernet).
Features of GridVis
• Prgramming the UMG511
• Configuration of recordings.
• Analysis of the read data according to
EN 61000-2-4.
• Reading out recordings.
• Saving data in a database.
• Graphic presentation of measurement values.
• Programming special customer applications.

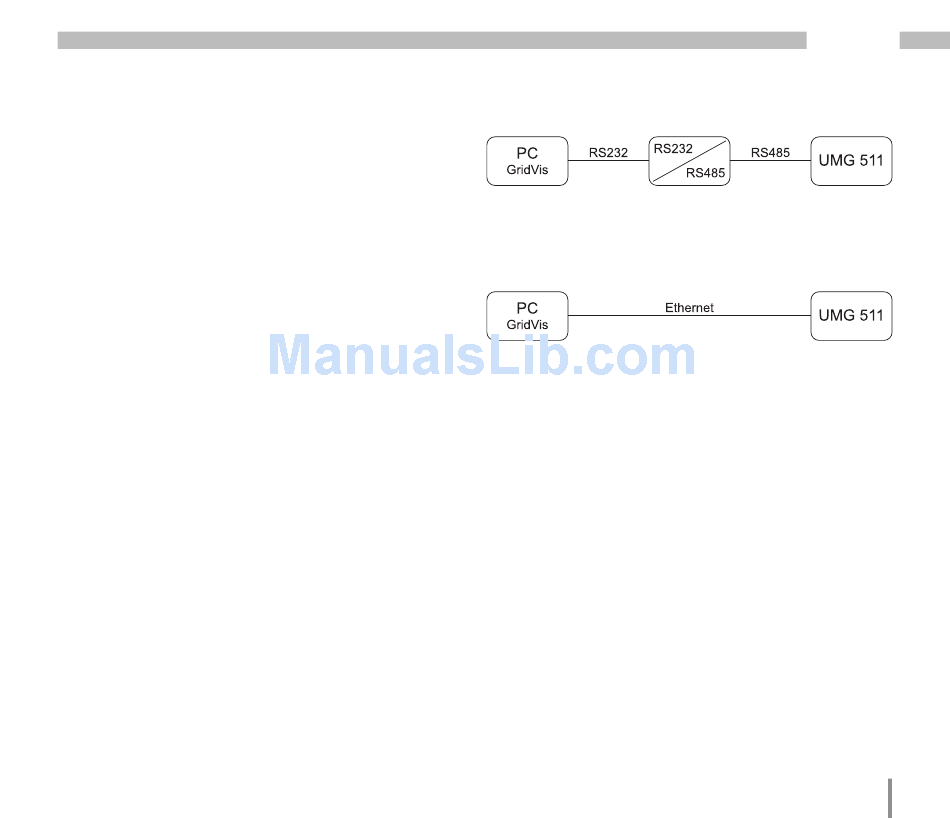

Fig. 13.2 connection of an UMG511 to a PC using
an interface converter
Fig. 13.3 connection of an UMG511 to a PC with
Ethernet.
