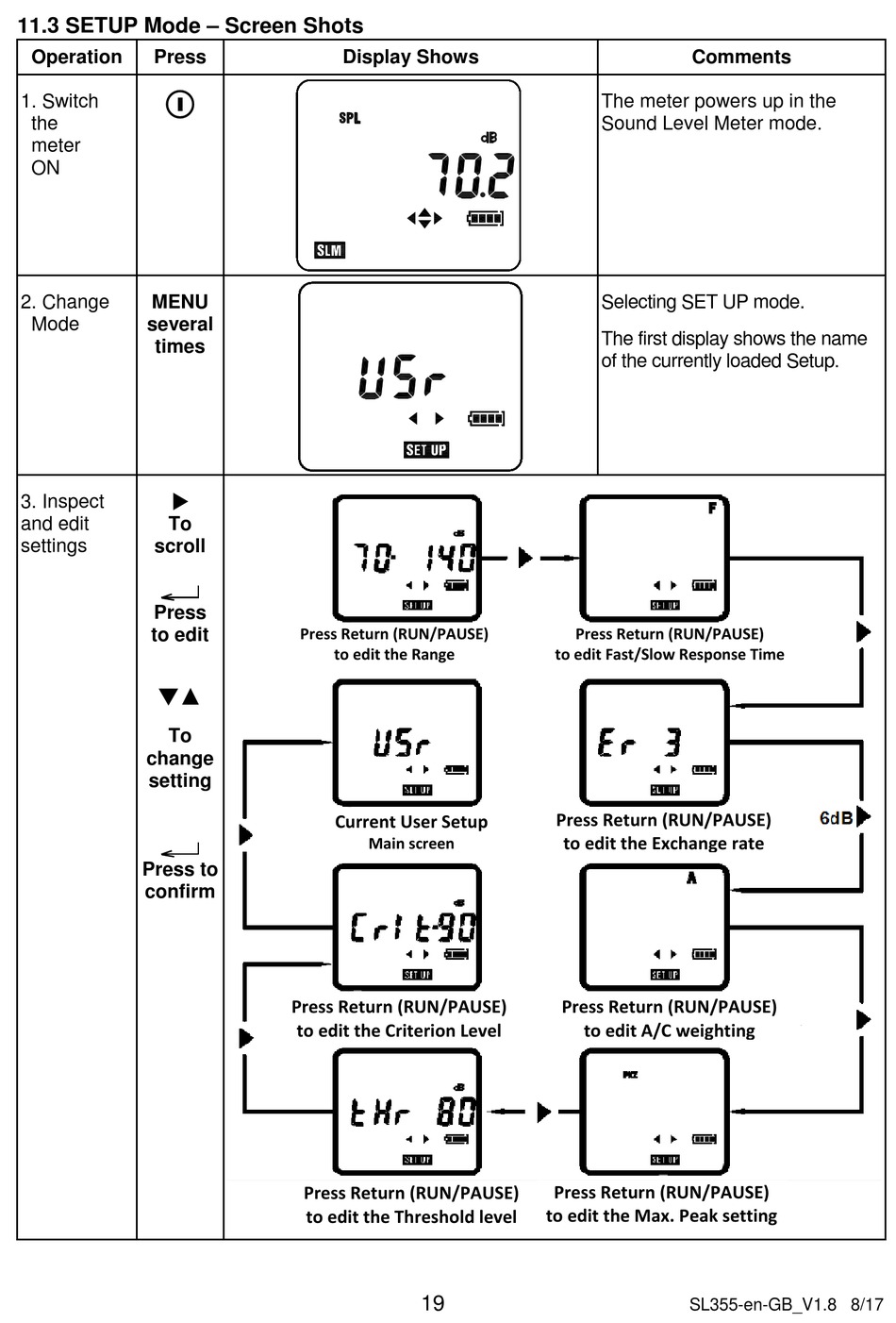

11.3 SETUP Mode – Screen Shots
Operation Press
1. Switch
the
meter
ON
2. Change MENU
Mode several
times

3. Inspect
and edit To
scroll
settings
Press
to edit
▲

To
change
setting
Press to
confirm
Display Shows
Press Return (RUN/PAUSE)
to edit the Range
Current User Setup
Main screen
Press Return (RUN/PAUSE)
to edit the Criterion Level
Press Return (RUN/PAUSE)
to edit the Threshold level
19
Comments
The meter powers up in the
Sound Level Meter mode.
Selecting SET UP mode.
The first display shows the name
of the currently loaded Setup.
Press Return (RUN/PAUSE)
to edit Fast/Slow Response Time
Press Return (RUN/PAUSE)
to edit the Exchange rate
Press Return (RUN/PAUSE)
to edit A/C weighting
Press Return (RUN/PAUSE)
to edit the Max. Peak setting
SL355-en-GB_V1.8 8/17
