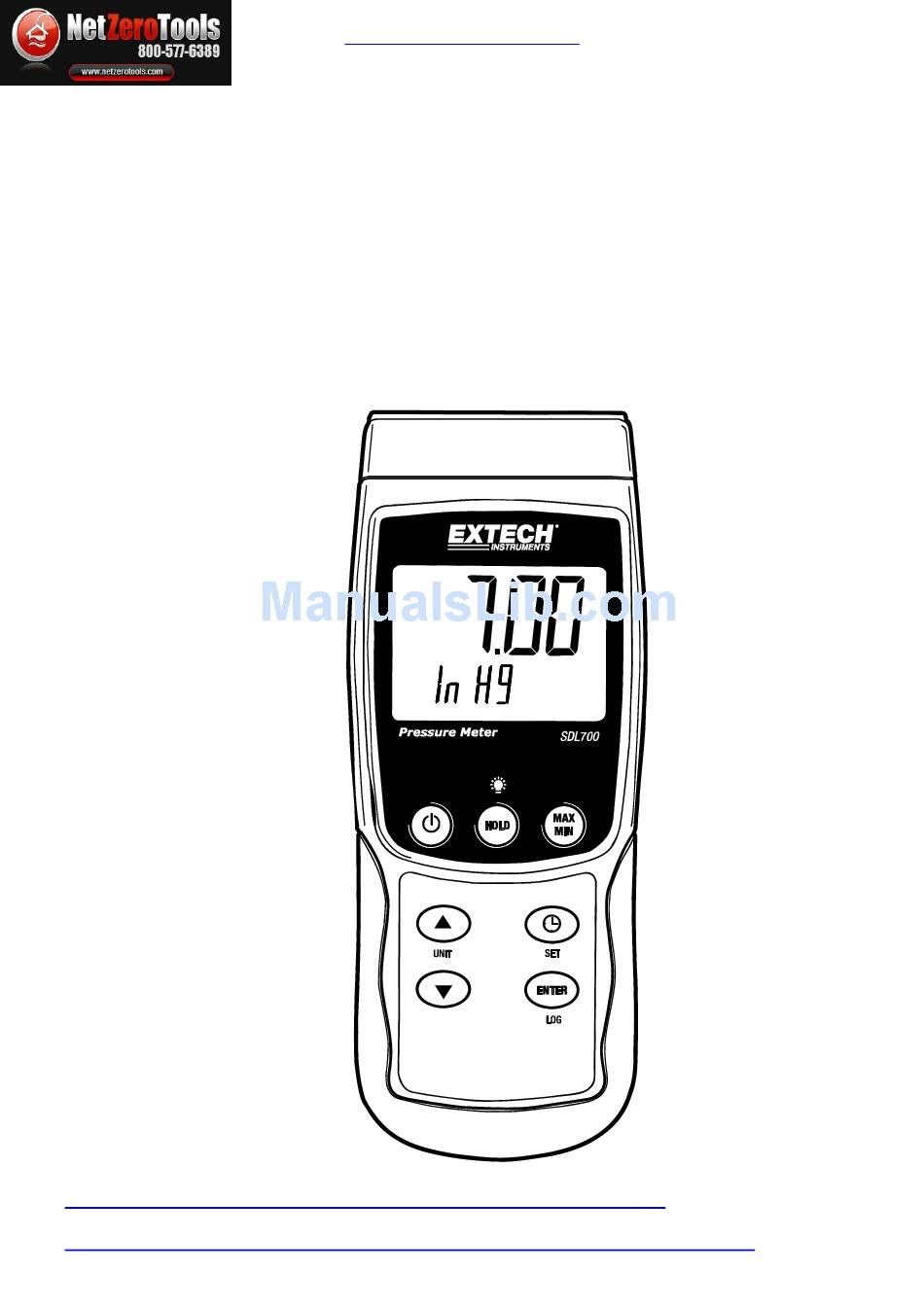

- Page 1 User's Guide Pressure Meter SD Card real-time datalogger Model SDL700 Extech SDL700 Pressure Meter Datalogger Extech SDL700-NIST Pressure Meter Datalogger netzerotools.com...
-
Page 2: Meter Description
Introduction Congratulations on your purchase of the Extech SDL700 Pressure Meter, an SD Logger Series meter. This meter displays and stores pressure readings from optional pressure sensors in the range of 30, 150, 300 psi. Supported measurement units are bar, psi, Kg/cm... -
Page 3: Getting Started
Pressure sensors are connected to the meter via the DIN jack at the top of the meter. Pressure sensors of 2Bar (30psi), 10Bar (150psi) and 20Bar are available for use with the SDL700. Note that re-calibration is not necessary when changing sensors; however the user must select the appropriate sensor range in the Setup Mode. -
Page 4: Setup Mode
4. Press the ENTER button to confirm the entry. 5. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL700-EU-EN V1.4 03/12 netzerotools.com... - Page 5 After pressing the Reset button, switch the instrument ON by pressing and holding the POWER key for at least 1.5 seconds. If using the power adaptor unplug the adaptor and then plug it back in again to power the meter. SDL700-EU-EN V1.4 03/12 netzerotools.com...
-
Page 6: Data Logging
4. Use the ▲ and ▼ buttons to select one of the 99 data memory positions in which to record. 5. To exit the manual datalogging mode, press and hold the LOG button for at least 1.5 seconds. The DATALOGGER icon will switch off. SDL700-EU-EN V1.4 03/12 netzerotools.com... - Page 7 SD card adaptor (available at most outlets where computer accessories are sold). Power the PC and run a spreadsheet software program. Open the saved documents in the spreadsheet software program (see example spreadsheet data screen below). SDL700-EU-EN V1.4 03/12 netzerotools.com...
-
Page 8: Battery Replacement And Disposal
Replace the battery compartment cover with the two (2) Phillips screws. All EU users are legally bound by the battery ordinance to return all used batteries to collection points in your community or wherever batteries / accumulators are sold! Disposal in the household garbage is prohibited! SDL700-EU-EN V1.4 03/12 netzerotools.com... -
Page 9: Specifications
With backlight OFF and datalogging ON: approx. 25mAdc With backlight ON add approx. 12mAdc Weight 343g (0.75 lbs.) w/ batteries; 241g (0.53 lbs.) w/o batteries Dimensions 182 x 73 x 47.5mm (7.1 x 2.9 x 1.9”) SDL700-EU-EN V1.4 03/12 netzerotools.com... - Page 10 ± 2% Full Scale (10ºC to 40ºC) Operating Temperature 32ºF to 140ºF (0ºC to 40ºC) Operating Humidity Max 80% RH Output Full capacity output = 100 mV DC Size 30 mm diameter x 85mm Weight 5.65oz. (160g) Cable length 39” (1m) SDL700-EU-EN V1.4 03/12 netzerotools.com...
