Page 1: Sound Level Meter

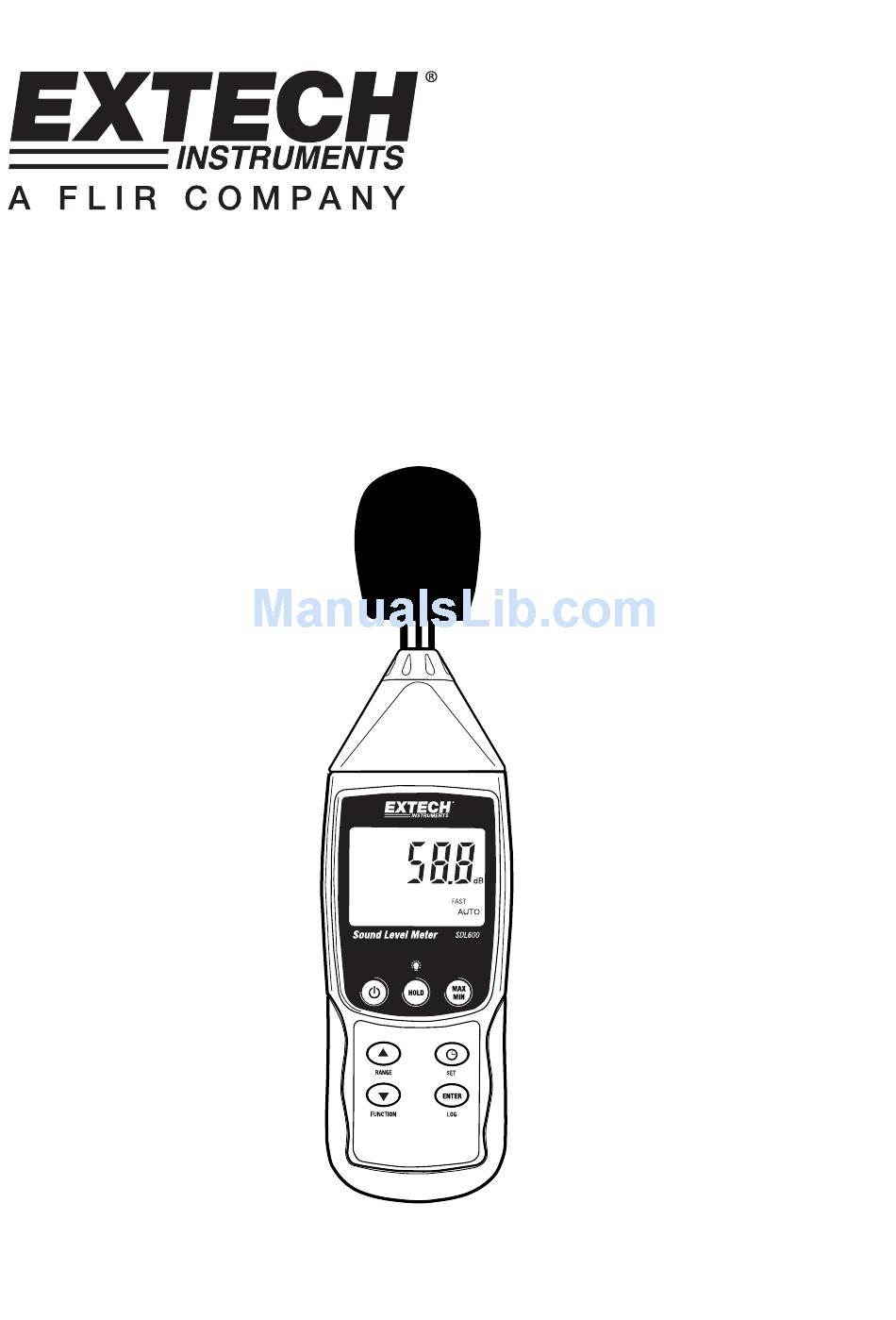

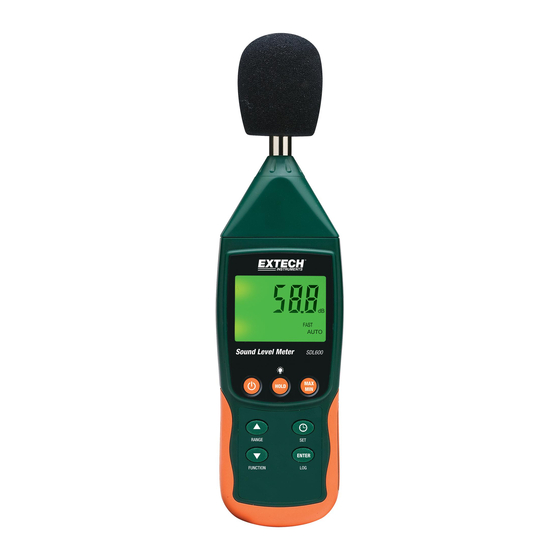

User's Guide Sound Level Meter SD Card real-time Datalogger Model SDL600... -
Page 2: Meter Description
Introduction Congratulations on your purchase of the Extech SDL600 Sound Level Meter. This meter displays and stores sound level readings in the 30 to 130 db range. The SDL600meets ANSI and IEC 61672 class 2 standards and includes ‘A’ and ‘C’ frequency weighting and FAST and SLOW response time. -
Page 3: Getting Started
Getting Started Accessories • The SDL600 includes batteries, SD card, windscreen, and carry case. If items are missing please contact the distributor through which this product was purchased • An optional AC adaptor is available through Extech distributors • Optional sound level calibrators are available through Extech distributors. Calibrators are highly recommended for best accuracy and repeatability. - Page 4 4. To exit the MAX-MIN mode, press and hold the MAX-MIN button for at least 1.5 seconds. The meter will beep, the REC-MAX-MIN icons will switch off, the MAX-MIN memory will clear, and the meter will return to the normal operating mode. SDL600-EU-EN-V1.2-10/11...
-
Page 5: Setup Mode
3. Press the ENTER key to confirm the entry. 4. Press and hold the SET button for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL600-EU-EN-V1.2-10/11... - Page 6 Press ENTER to confirm setting. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL600-EU-EN-V1.2-10/11...
- Page 7 Use the ▲ and ▼ buttons to select one of the 99 data memory positions in which to record. To exit the manual datalogging mode, press and hold the LOG button for at least 1.5 seconds. The DATALOGGER icon will switch off. SDL600-EU-EN-V1.2-10/11...
- Page 8 Plug the SD Card directly into a PC SD card reader. If the PC does not have an SD card slot, use an SD card adaptor (available at most outlets where computer accessories are sold). Power the PC and run a spreadsheet software program. Open the saved documents in the spreadsheet software program (see example spreadsheet data screen below). SDL600-EU-EN-V1.2-10/11...
- Page 9 RS232 Output jack. AC Power Adaptor This meter is normally powered by six (6) 1.5V ‘AA’ batteries. An optional 9V power adaptor is available. When the adaptor is used, the meter is permanently powered and the power button will be disabled. SDL600-EU-EN-V1.2-10/11...
-
Page 10: Battery Replacement And Disposal
4. Replace the battery compartment cover with the two (2) Phillips screws. All EU users are legally bound by the battery ordinance to return all used batteries to collection points in your community or wherever batteries / accumulators are sold! Disposal in the household garbage is prohibited! SDL600-EU-EN-V1.2-10/11... -
Page 11: Specifications
Note: Specifications tested at 23°C ± 5°C and under an environmental RF Field Strength lower than 3 V/M and a frequency lower than 30 MHz Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form www.extech.com...
