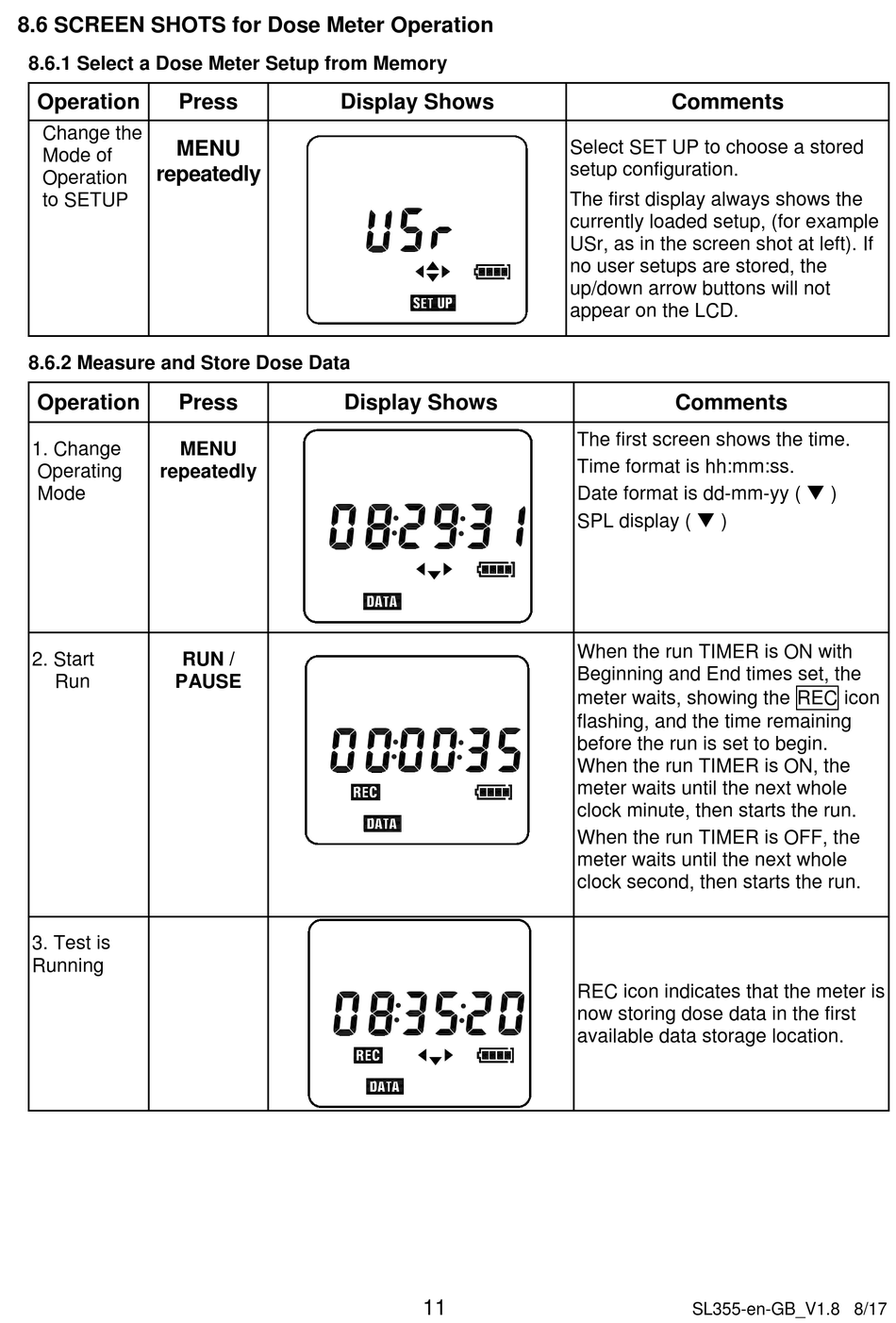

8.6 SCREEN SHOTS for Dose Meter Operation
8.6.1 Select a Dose Meter Setup from Memory
Operation Press
Change the
MENU
Mode of
repeatedly
Operation
to SETUP

8.6.2 Measure and Store Dose Data

Operation Press
1. Change MENU
Operating repeatedly
Mode
2. Start RUN /
Run PAUSE
3. Test is
Running
Display Shows
Display Shows
11
Comments
Select SET UP to choose a stored
setup configuration.
The first display always shows the
currently loaded setup, (for example
USr, as in the screen shot at left). If
no user setups are stored, the
up/down arrow buttons will not
appear on the LCD.
Comments
The first screen shows the time.
Time format is hh:mm:ss.
Date format is dd-mm-yy (  )
SPL display (  )
When the run TIMER is ON with
Beginning and End times set, the
meter waits, showing the REC icon
flashing, and the time remaining
before the run is set to begin.
When the run TIMER is ON, the
meter waits until the next whole
clock minute, then starts the run.
When the run TIMER is OFF, the
meter waits until the next whole
clock second, then starts the run.
REC icon indicates that the meter is
now storing dose data in the first
available data storage location.
