Summary of Contents for Extech Instruments SDL470

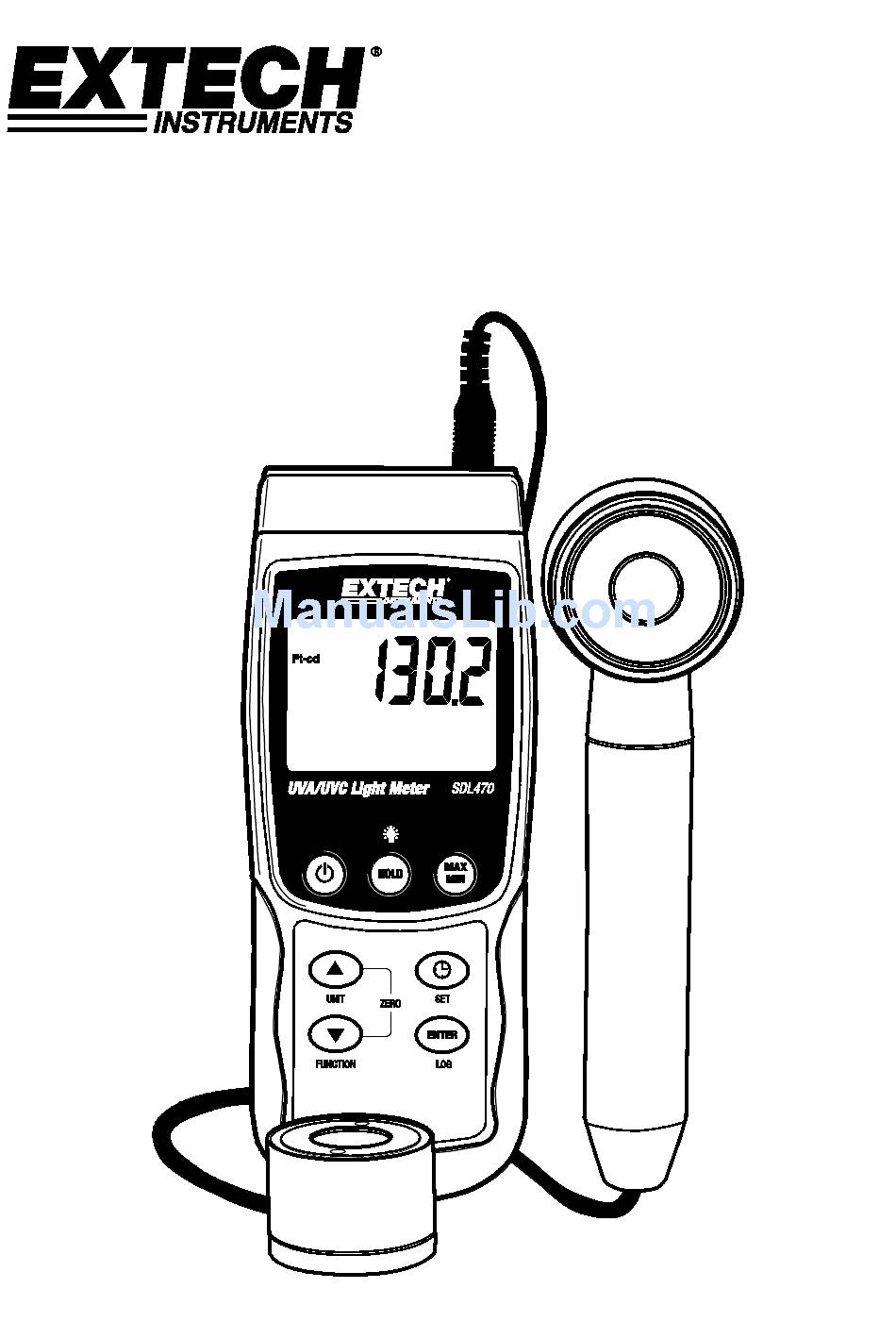

- Page 1 USER MANUAL UVA, UVC Light Meter with Temperature Model SDL470...

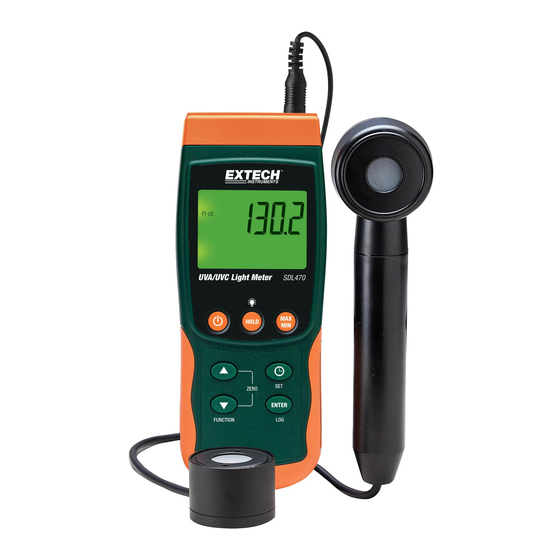

- Page 2 Thank you for selecting the Extech Instruments Model SDL470 Ultraviolet Light Meter. The SDL470 measures UVA and UVC light plus temperature. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User Guide, Product Updates, and...
-
Page 3: Meter Description
13. UVC sensor 14. UVA probe handle 15. UVA sensor (protective cover not shown) Note: Battery compartment, tilt stand, and tripod mount are located on rear of meter DC 9V power adaptor jack Reset button RS-232 output port SDL470-en-GB_v1.4 3/17... -
Page 4: Operation
• If the meter display does not read zero, press and hold both the up and down arrow buttons simultaneously for at least 3 seconds. • The display will automatically zero. • Remove the sensor cover to begin taking measurements. SDL470-en-GB_v1.4 3/17... -
Page 5: Type K/J Thermometer Measurements (Probe Is Optional)
• To exit the MAX-MIN mode, press and hold the MAX-MIN button for at least 2 seconds. The meter will beep, the REC-MAX-MIN icons will switch off, the MAX-MIN memory will clear, and the meter will return to the normal operating mode. SDL470-en-GB_v1.4 3/17... -
Page 6: Accessing The Setup Mode
(or wait 7 seconds for the meter to automatically exit). The clock will keep accurate time even when the meter is switched off. However, if the battery expires the clock will have to be reset after fresh batteries are installed. SDL470-en-GB_v1.4 3/17... - Page 7 Press ENTER to confirm setting and to move to the next parameter. If desired, press and hold the SET button for 2 seconds to exit to the normal operation mode (or wait 7 seconds for the meter to automatically exit). SDL470-en-GB_v1.4 3/17...
-
Page 8: System Reset
• After pressing the Reset button, switch the instrument ON by pressing and holding the POWER key for at least 2 seconds. If using the power adaptor unplug the adaptor and then plug it back in again to power the meter. SDL470-en-GB_v1.4 3/17... -
Page 9: Sd Card Information
Repeat steps 5 and 6 for up to 99 readings. To exit the manual Datalogging mode, press and hold the LOG button for at least 2 seconds. The Pn and LOGGER icons will switch off. SDL470-en-GB_v1.4 3/17... -
Page 10: Automatic Datalogging
(UVA01002.xls) where another 30,000 readings can be stored. This method continues for up to 99 documents, after which another folder is created (UVA02) where another 99 spreadsheet documents can be stored. This process continues in this same fashion with folders UVA03 through UVA10 (last allowable folder). SDL470-en-GB_v1.4 3/17... -
Page 11: Ac Power Adaptor
For streaming of data to a PC via the RS232 Output jack (3.5mm), the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software (available free at www.extech.com/SDL470) are required. AC Power Adaptor This meter is normally powered by six (6) 1.5V ‘AA’ batteries (located in the rear battery compartment). -
Page 12: Battery Replacement
Battery Safety Reminders o Please dispose of batteries responsibly; observe local, state, and national regulations. o Never dispose of batteries in a fire; batteries may explode or leak. o Never mix battery types; install new batteries of the same type. SDL470-en-GB_v1.4 3/17... -
Page 13: General Specifications
UVC probe: 38mm diameter x 25 mm (1.5 dia. x 1.0”) Accessories included Instruction manual, UVA light sensor, UVC light sensor, hard-shell carrying case, batteries, 9V AC adapter, and user guide Optional Accessories Type K thermocouple probe, USB cable (407001-USB) and data acquisition software (407001) SDL470-en-GB_v1.4 3/17... -
Page 14: Electrical Specifications
Note: Above specifications tested with an RF strength less than 3V/M and a frequency less than 30MHz Copyright © 2014-2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com SDL470-en-GB_v1.4 3/17...
