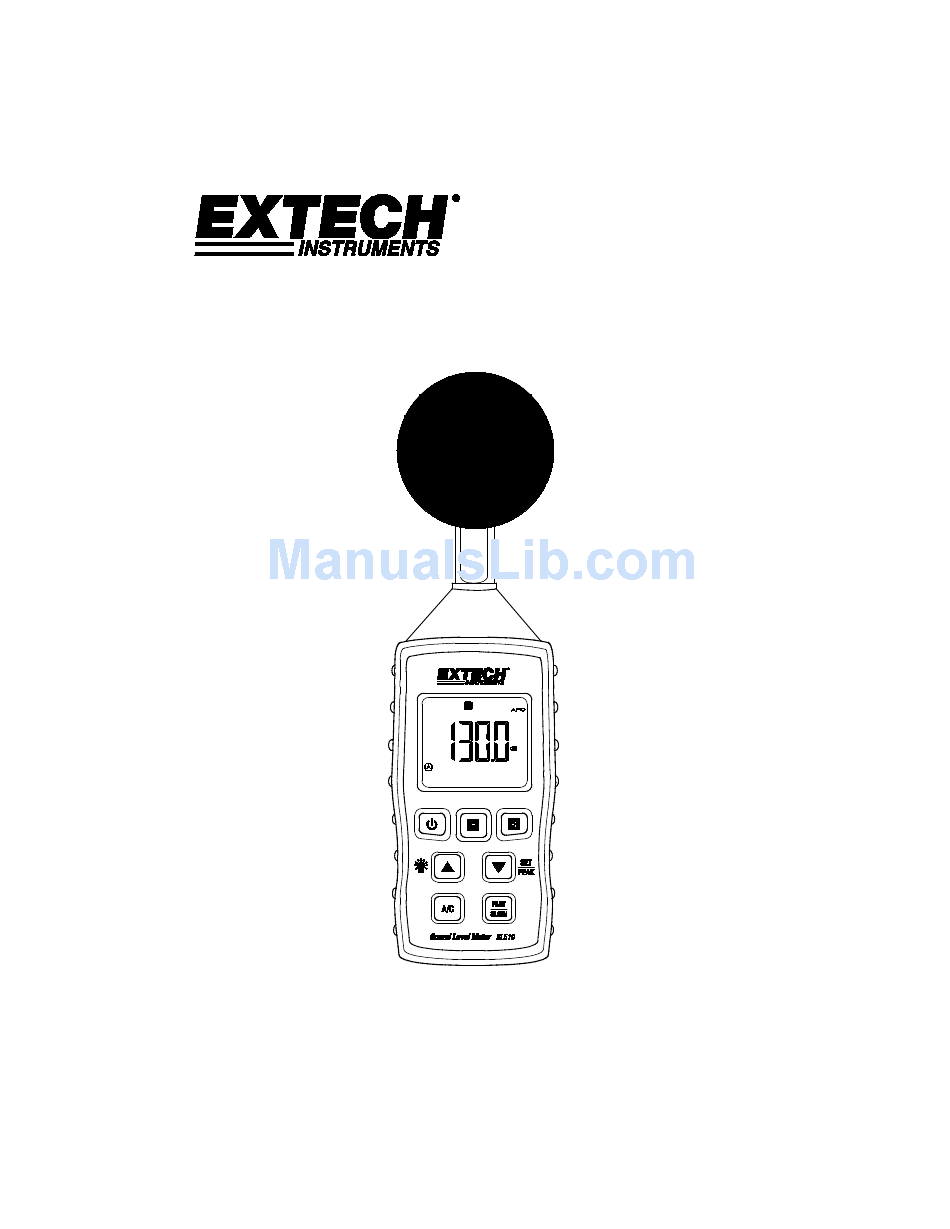

- Page 1 USER MANUAL Digital Sound Level Meter Model SL510 Additional User Manual Translations available at GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Thank you for selecting the Extech Model SL510 The SL510 measures sound levels in decibels. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website ( ) to check for the latest version and translations...
-
Page 3: Meter Description
3. Do not store or operate the instrument in areas of high temperature or humidity. 4. Keep meter and microphone dry. 5. Avoid severe vibration. 6. Remove the battery when the meter is to be stored for long periods of time. SL510-en-GB_V1.0 8/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 4: Operation
Backlight The LCD is equipped with backlighting for easier viewing, especially in dimly lit areas. Press the backlight button to turn the backlight on. The backlight will automatically turn off after 10 seconds. SL510-en-GB_V1.0 8/17 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 5: Max-Min Recording
Short press the power button or wait approximately 10 seconds for the meter to return to normal operation. Note: APO is not operational in the Record mode. SL510-en-GB_V1.0 8/17 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 6: Maintenance
Calibration To calibrate the SL510, an external calibrator that can provide a 94.0dB signal at 1 kHz is required. Turn the meter ON Put the meter in the ‘A’ weighting mode. Put the meter in the ‘FAST response mode. Place the microphone into the calibrator. Set the calibrator to output a 1kHz sine wave @ 94dB. -
Page 7: Specifications
10 to 75% RH Dimensions/weight 167 x 57 x 25mm (6.6 x 2.3 x 1.1”) /146g (5.1oz) ±1dB high accuracy meets Class 2 standards (IEC 61672-2013 and ANSI/ASA S1.4/Part 1 SL510-en-GB_V1.0 8/17 GlobalTestSupply www. .com Find Quality Products Online at:... - Page 8 Sound studio Threshold of hearing Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified SL510-en-GB_V1.0 8/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
