User's Guide
Vane Thermo-Anemometer /
Datalogger
Model SDL300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDL300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extech Instruments SDL300

Summary of Contents for Extech Instruments SDL300

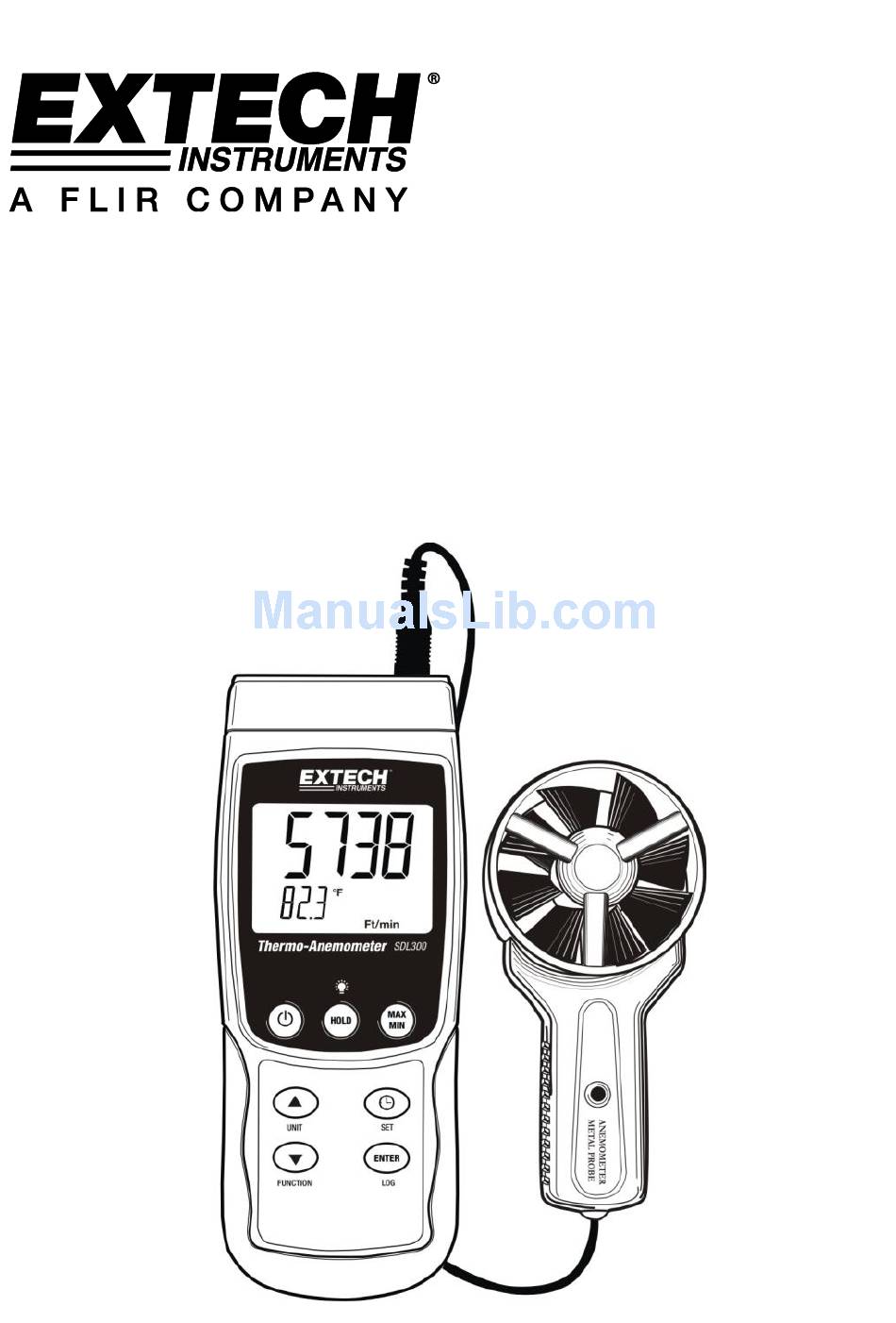

  • Page 1 User's Guide Vane Thermo-Anemometer / Datalogger Model SDL300...

  • Page 2: Meter Description

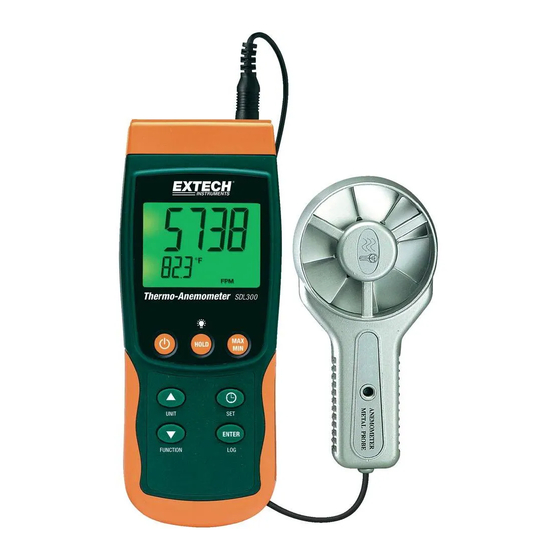

    Introduction Congratulations on your purchase of the Extech SDL300 Thermo-Anemometer Datalogger. This meter displays and stores air velocity and temperature readings. Temperature readings from the thermometer built into the vane probe or from an externally connected type K or J thermocouple temperature probe can be displayed and recorded.

  • Page 3: Operation

    To freeze a measurement on the display, press the HOLD key momentarily. The meter will emit a beep, the reading will hold, and the HOLD display icon will switch on. Press the HOLD key again to release the display and exit the Data Hold mode returning the meter to the normal operating mode. SDL300-EN-V1.3 -10/11...
  • Page 4 (under the snap-off compartment cover); plug the other end of the adaptor into an AC power source. The meter will now be permanently powered (as long as the adaptor is used) and the power key will be disabled. SDL300-EN-V1.3 -10/11...
  • Page 5 (AMC01002.xls) where another 30,000 readings can be stored. This method continues for up to 99 documents, after which another folder is created (AMC02) where another 99 spreadsheet documents can be stored. This process continues in this same fashion with folders AMC03 through AMC10 (last allowable folder). SDL300-EN-V1.3 -10/11...
  • Page 6 (see examples of spreadsheet displays below). Spreadsheet data example Spreadsheet example (Plotting the data) RS-232/USB PC Interface The optional 407001A software kit (software and cable) allows streaming of data to a PC via the RS232 Output jack. SDL300-EN-V1.3 -10/11...

  • Page 7: Setup Mode

    Press ENTER to confirm setting. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL300-EN-V1.3 -10/11...
  • Page 8 Press ENTER to confirm setting. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL300-EN-V1.3 -10/11...

  • Page 9: Battery Replacement And Disposal

    Replace the battery compartment cover with the two (2) Phillips screws. All EU users are legally bound by the battery ordinance to return all used batteries to collection points in your community or wherever batteries / accumulators are sold! Disposal in the household garbage is prohibited! SDL300-EN-V1.3 -10/11...

  • Page 10: Specifications

    Normal operation (backlight & datalogger OFF): Approx. 15 mA dc With backlight OFF and datalogging ON: Approx. 36 mA dc Weight 0.76 lbs. (347g); meter only Main instrument: 7.1 x 2.9 x 1.9” (182 x 73 x 47.5mm) Dimension Anemometer sensor head: 2.8” (72mm) diameter SDL300-EN-V1.3 -10/11...
  • Page 11 Note: Above specifications tested under an environmental RF Field Strength lower than 3 V/M and a frequency lower than 30 MHz Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form www.extech.com...

  • Page 12: Warranty

    Warranty EXTECH INSTRUMENTS CORPORATION (a FLIR company) warrants this instrument to be free of defects in parts and workmanship for three years from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
  • Page 13 Garantía EXTECH INSTRUMENTS CORPORATION garantiza este instrumento libre de defectos en partes o mano de obra durante tres años a partir de la fecha de embarque (se aplica una garantía limitada a seis meses para los cables y sensores). Si fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a Clientes al teléfono...
