SIGLENT SDS1004X-E Series Additional Manual

Adding Digital Input/MSO Capability to the SDS1004X-E
Series of Oscilloscopes
February 26, 2018
Mixed Signal Oscilloscopes (MSO's for short) feature the ability to show both analog and digital signals
using the same timebase. In this way, you can more accurately determine the timing of digital and analog
events.

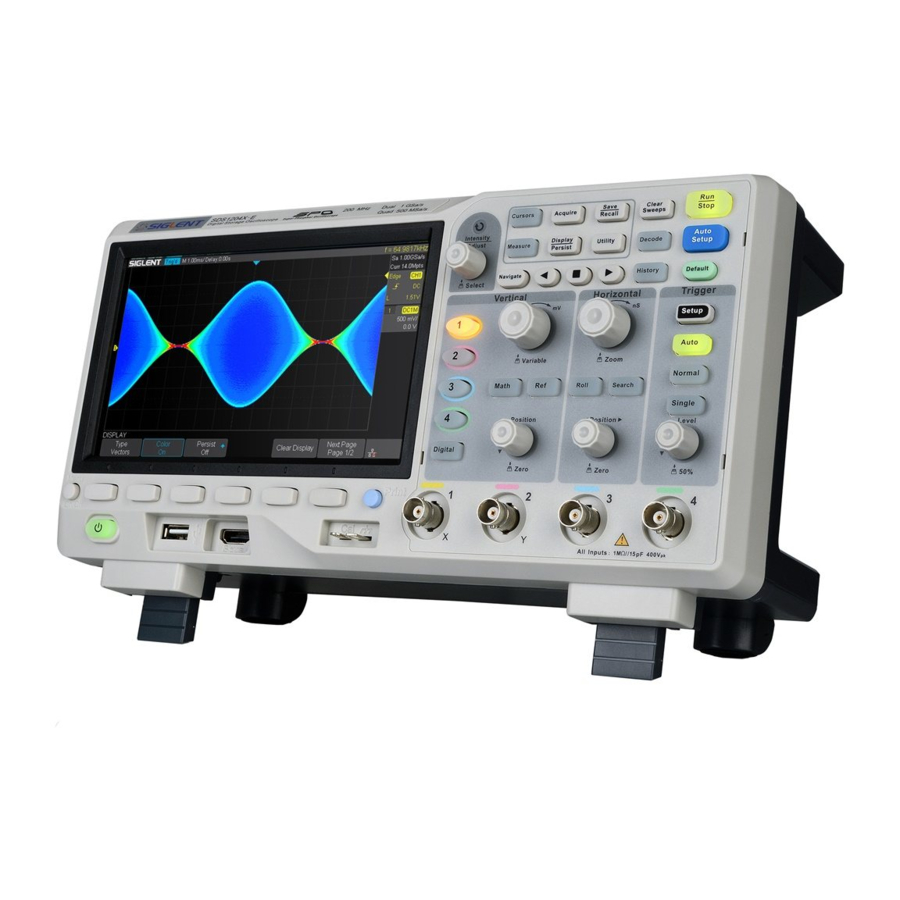

The SIGLENT 4 channel SDS1004X-E series of oscilloscopes (currently the 100 MHz SDS1104X-E and 200
MHz SDS1204X-E models) can be upgraded to include the ability to measure up to 16 digital/logic
channels. This allows the user to conveniently view up to 4 analog (8-bit resolution) and 16 digital (1-bit
resolution) channels on the same timebase which can quickly correlate analog and digital events.
To add MSO capability to your SDS1004X-E:
1. Update the firmware of the oscilloscope to
version here on the

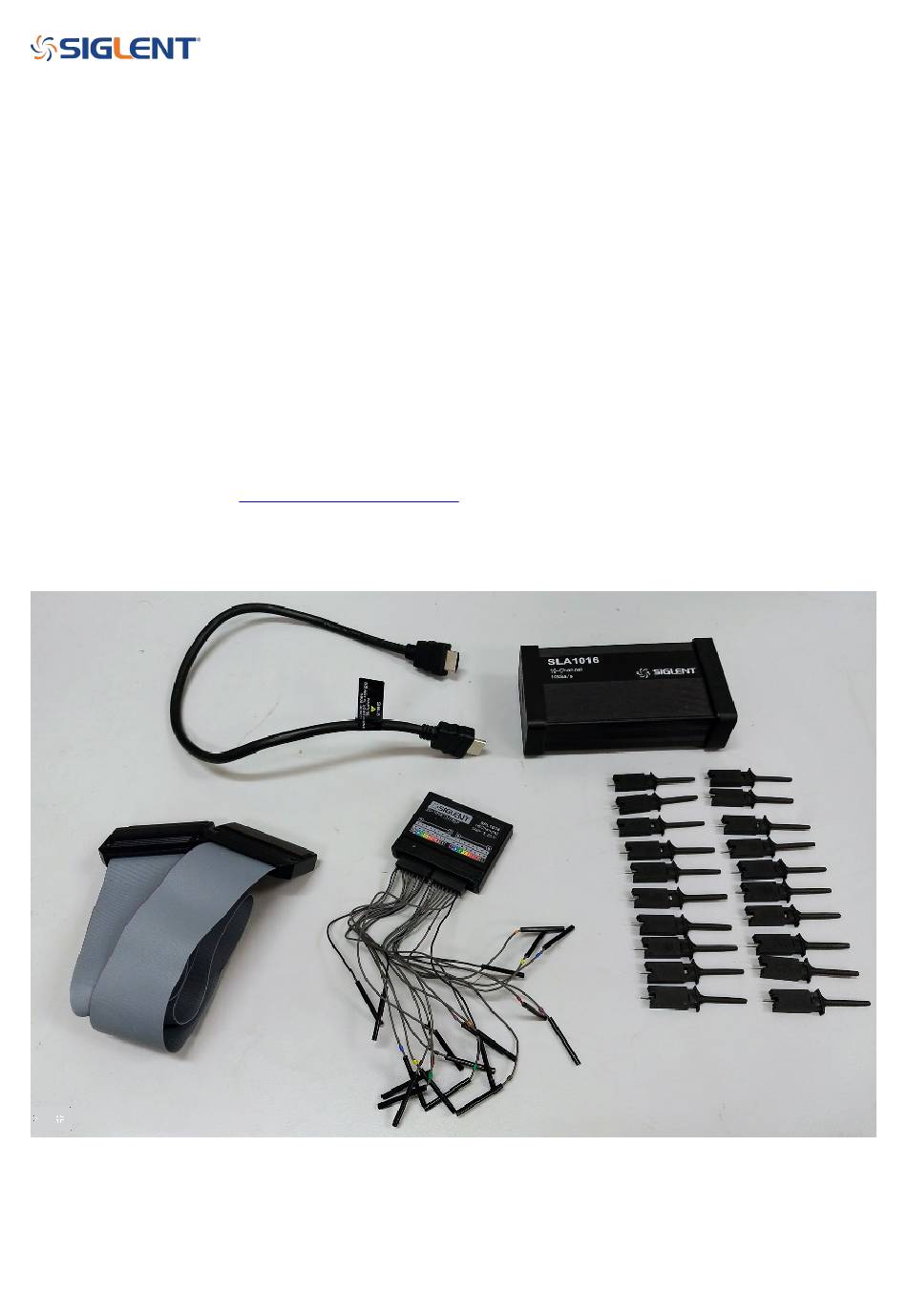

2. Purchase the SLA1016 hardware. This includes the wiring harnesses and modules to physically connect
to the instrument and Device Under Test (DUT):
3. Purchase the SDS1000X-E-16LA activation license and follow the included instructions to generate the
code. Enter it into the scope to unlock the MSO/LA features.
SDS1000X-E Firmware
version 7.6.1.20 or higher. You can find the latest
Page.
