MP-73/53 G3 Wireless Option

MP-73/53 G3 WIRELESS OPTION
Note: This chapter contains information on the MP-73/53 G3 Wireless Option
which were available on January 2011 with firmware version 3.0 or higher.
•
MP-70/50 W
•
MP-72/52 G2 W

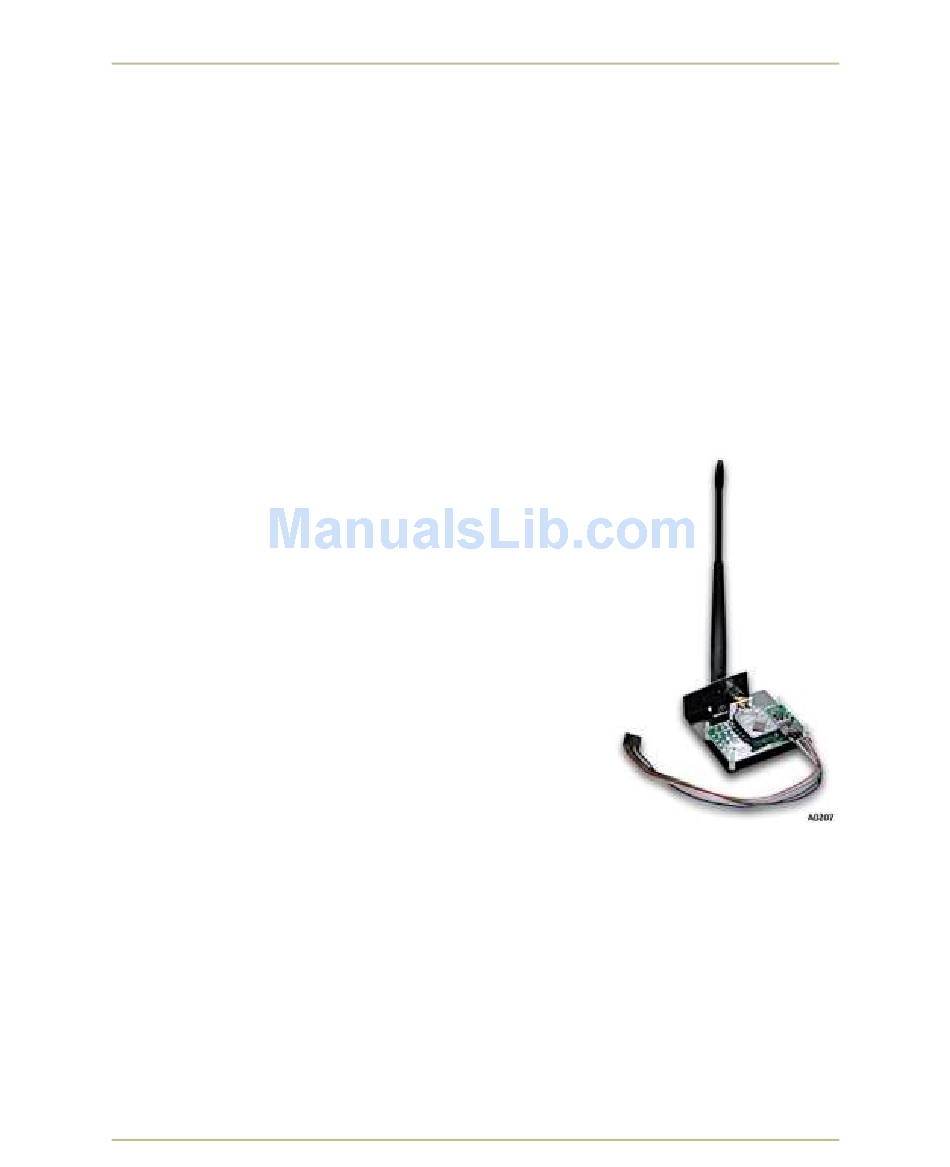

The MP-73/53 Wireless G3 Option is the upgrade and replacement for the MP-
70/50 Wireless Option and the MP-72/52 Wireless G2 Option.
The MP-73/53 Wireless G3 Option uses the similar Spread Spectrum
technology as the MP-72/52 but it uses a different transceiver hardware and
firmware which results in allowing the user to easily assign scoreboard and
controller combinations.
The MP-73/53 allows you to control most indoor
scoreboards and shot clocks, or most outdoor
scoreboards and field timers from any location in the
gym or on the field — without the need for wiring and
cable conduit.
The wireless MP-73/53 controls are operated in a
similar fashion to the MP-70/50 controls that have a
standard cable connection.
This chapter describes how the wireless control can
be set up and its features programmed into the
control, in the event that you may need to do this. It
also features tips on operating the wireless control
effectively, as well as detailed instructions for how to
set up and run the control during special
circumstances.
Note: The MP-73/53 control has been factory tested with your display, and
should be ready to plug and play.
When equipped with the wireless option, the MP-73/53 can still operate the
scoreboards using conventional control wire. It can also simultaneously operate
devices via the wireless link and via control cables.
If you are using hand switches, they currently require a cable connection to the
control, even when used with a wireless model.
Note: Hand switches cannot be used with the MP-53 control.
118
O
can be found on page 85.
IRELESS PTION
O
can be found on page 102.
IRELESS PTION
MP-70/50 • MP-72/52 • MP-73/53 • PN 98-0002-29 • REV 1709.13
