WattStation Pedestal Installation Manual
S S t t e e p p 1 1 1 1 : : Set the nut flush with the top
of the sleeve anchor
S S t t e e p p 1 1 2 2 : : Insert the sleeve anchor through
the EVSE Baseplate into the hole in
the concrete base until the washer
and nut are tight against the baseplate
S S t t e e p p 1 1 3 3 : : Turn the nut until finger tight
S S t t e e p p 1 1 4 4 : : Fasten anchor bolts to concrete
base, Torque bolts per specification Table 1
S S t t e e p p 1 1 5 5 : : Use a Wrench to set the sleeve
anchor by turning the nut 3 to 4 full turns
1 1 2 2
G G E E E E n n e e r r g g y y

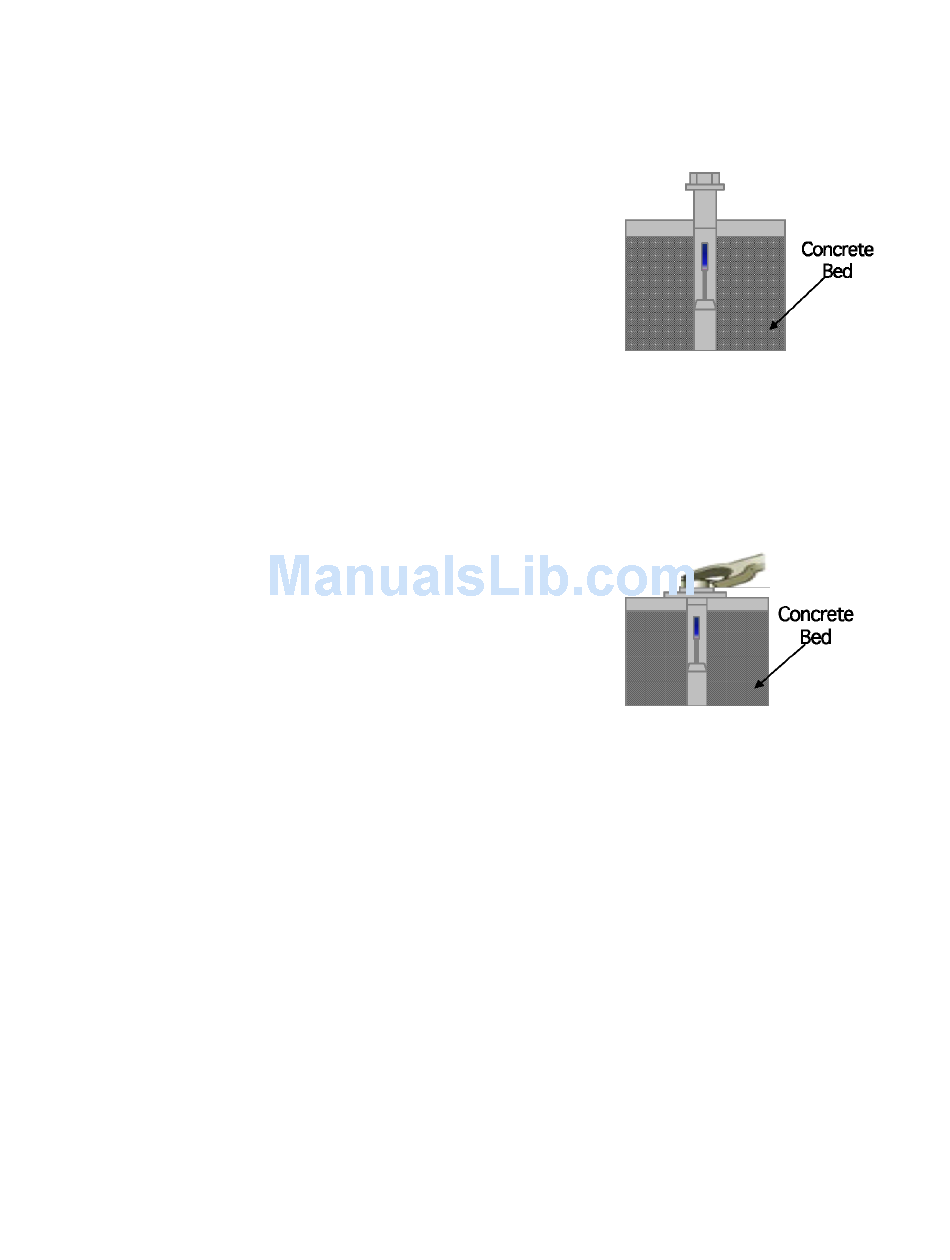

F F i i g g u u r r e e – – 5 5
F F i i g g u u r r e e - - 6 6
