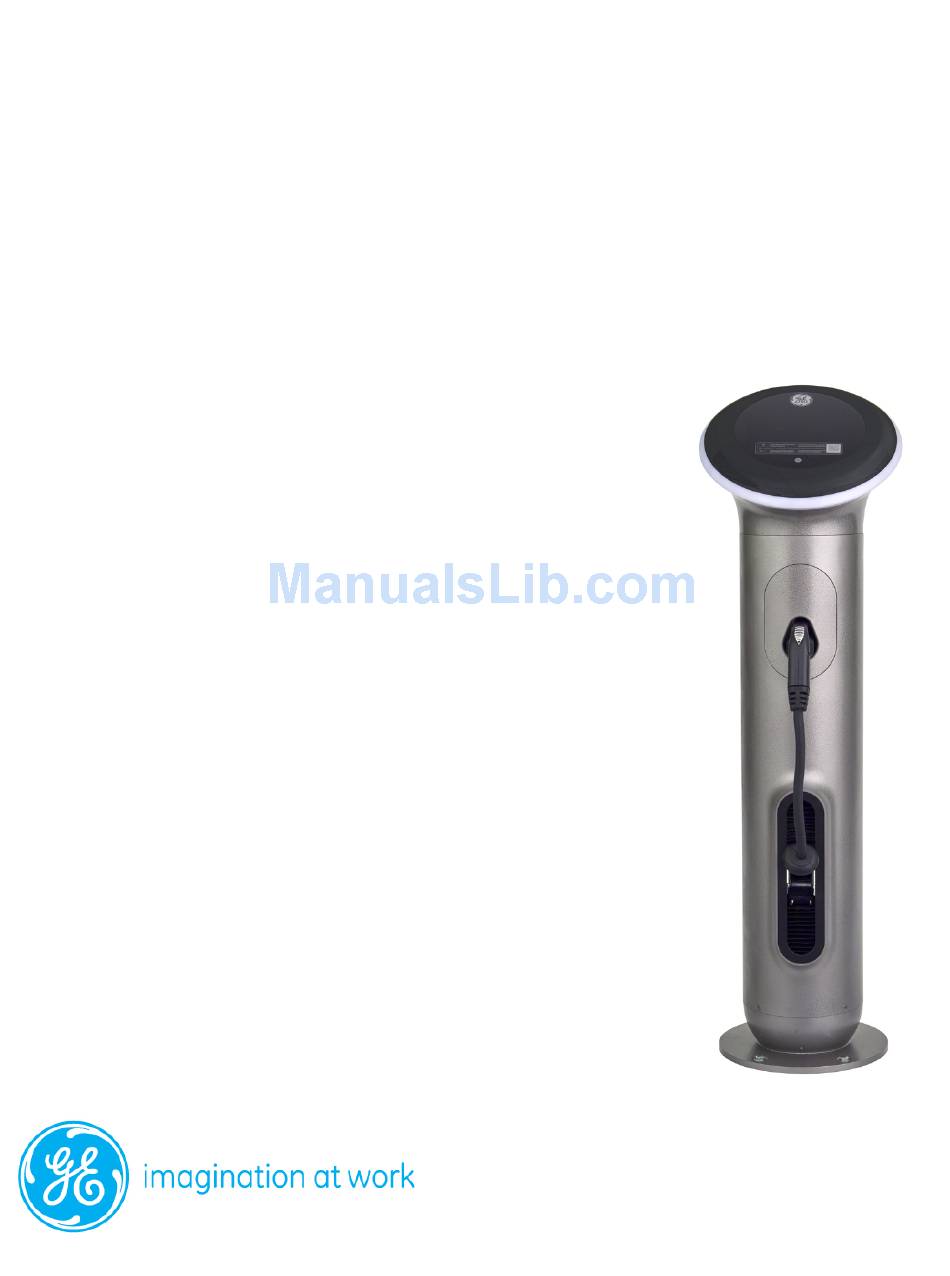

    GE Energy GE WattStation Pedestal EVSE Charger Installation Manual...

  • Page 2: Table Of Contents

    Torque Specification Table ................................8! Installation and Maintenance Tools ............................9! 8.1! Installation Tools....................................9! 8.2! Maintenance tools ..................................... 9! Field cable size..................................... 9! Installation Procedure..................................10! Communication ....................................16! DuraStation Upgrade ..................................17! Warranty ......................................18! GE Energy ©2012 GE Company All Rights Reserved...

  • Page 3: Publications

    WattStation Pedestal Installation Manual 1 Publications Reference Documents Ref. No. Title DEH -41580 WattStation Pedestal User Manual DEH -41581 WattStation Pedestal MODBUS Register Mapping Guide GE Energy ©2012 GE Company All Rights Reserved...

  • Page 4: Introduction

    WattStation Pedestal Installation Manual 2 Introduction GE wishes to thank you for choosing our EVSE (Electric Vehicle Supply Equipment) product. We are committed to being the world’s leading supplier of EV chargers by providing the highest quality products as well as the best documentation and product support available in the industry.

  • Page 5: 3! Important Safety Instructions

    -This document provides instructions for arcing or sparking parts, which should not be installation of WattStation Pedestal EV exposed to flammable vapors. It should not be located in a recessed area or below floor level. GE Energy ©2012 GE Company All Rights Reserved...

  • Page 6: Fcc Requirements

    3.2 FCC Requirements N N o o t t e e : : This equipment has been tested GE Energy could affect the EMC and found to comply with the limits for a compliance and revoke your authority to Class A digital device, pursuant to part operate this product.

  • Page 7: 5! Installation Instruction

    EVSE must be connected to the equipment grounding lug inside the charger. This should be run with circuit conductors and connected to the equipment grounding bar or lead on the EVSE. Connections to the EVSE are the responsibility of the installer and purchaser, not GE and must comply with all applicable electrical codes and ordinances.

  • Page 8: 6! Installation Requirements

    A recommended 40A upstream circuit breaker, located either in a panel board or load center, should be used. GE WattStation EVSE unit has built in GFCI protection; do not provide any additional GFCI protection upstream of the EVSE. 7 Torque Specification Table...

  • Page 9: 8! Installation And Maintenance Tools

    WattStation Pedestal Installation Manual 8 Installation and Maintenance Tools 8.1 Installation Tools T T y y p p e e C C h h a a r r a a c c t t e e r r i i s s t t i i c c s s Slotted Screwdriver 3/16”...

  • Page 10: Installation Procedure

    S S t t e e p p 3 3 : : Check for any damage to the unit, cord and connector. If no damage is noticed, proceed to next step, If damage is noticed, call 1-888-GE-RESOLVE. S S t t e e p p 4 4 : : Locate area (concrete pad/ floor) for EVSE unit S S t t e e p p 5 5 : : Install two conduits, one for power (minimum 1”...

  • Page 11

    WattStation Pedestal Installation Manual S S t t e e p p 6 6 : : Using provided template locate the 4 holes. See figure 2 for reference. Template must be Removed after locating the holes F F i i g g u u r r e e – – 2 2 S S t t e e p p 7 7 : : Using a hammer drill and carbide tipped drill bit, drill a hole (1/2”...

  • Page 12

    WattStation Pedestal Installation Manual S S t t e e p p 1 1 1 1 : : Set the nut flush with the top of the sleeve anchor S S t t e e p p 1 1 2 2 : : Insert the sleeve anchor through...

  • Page 13

    WattStation Pedestal Installation Manual View after Installation F F i i g g u u r r e e - - 7 7 1 1 3 3 G G E E E E n n e e r r g g y y...

  • Page 14

    Connections to the EVSE are the responsibility of the installer and purchaser, not GE, and such connections must comply with all applicable electrical codes and ordinances. Torque all the nuts as per the torque specification in Table 1, Refer Table 2 for recommended tools.

  • Page 15

    WattStation Pedestal Installation Manual S S t t e e p p 1 1 8 8 : : Connect L1 and L2 to the PDB – Power Distribution Block and ground wire to the ground lug shown in Figure 10.

  • Page 16: Communication

    WattStation Pedestal Installation Manual 11 Communication GE recommends that customers planning to use the GE WattStation Pedestal with the cellular option, who want to ensure they will receive adequate coverage, should perform a site survey with a third party, as cellular performance is strongly affected by exact location environment factors and orientation of the pedestal, Figure 12 shows preferred orientations.

  • Page 17

    3. Take out the kiosk skirt by removing 1/2“ – 13 Nut and cut the threaded rods to the concrete bed surface 4. Use the WattStation Pedestal template provided with the package to locate and drill new set of 4 holes (refer step 6 under section 10 in this manual) 5.

  • Page 18: Warranty

    Warranty Period, GE shall the Warranty Period, your sole and exclusive remedy also provide telephone (888-437-3765) technical will be for GE, in its sole discretion and to the extent support assistance. permitted by law, to (1) repair the defect in the...

  • Page 19

    This warranty applies only to the Hardware manufactured TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND by or for GE that can be identified by the “GE” trademark, THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN trade name, or logo affixed to it. This warranty does not...

  • Page 20

    WattStation is a trademark of General Electric Company. Information provided is subject to change without notice. Please verify all details with GE. All Values are design or typical values when measured under laboratory conditions and GE makes no warranty or guarantee, express or implied, that such performance will be obtained under end-use conditions.
