GE EV Application Manual


Quick Links

GE Energy
Industrial Solutions
EV Charging Station
Application Guide
imagination at work


Table of Contents

Summary of Contents for GE EV

  • Page 1 GE Energy Industrial Solutions EV Charging Station Application Guide imagination at work...
  • Page 2 12-18 hours to 4-8 hours with service needs of 208-240VAC at 40A, assuming a 24kWh battery and a full-cycle charge. GE recognizes that this is an industry that will develop and change over time and, as a result, the EV Charging Station is designed to accommodate future changes and technological advances.
  • Page 3: Product Details

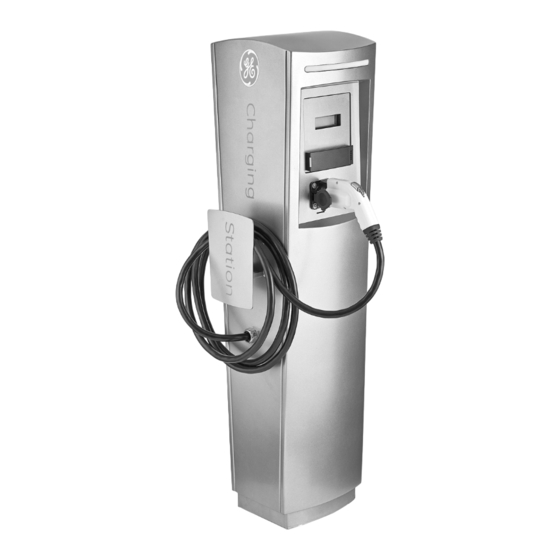

    Product Details The GE EV Charging Station has a list of features that are upgradeable, resulting in a robust and reliable solution for the need of EV charging infrastructure. • The cord holder serves to keep the cord organized and out of the way of parking spaces, sidewalks and streets •...
  • Page 4: Specifications

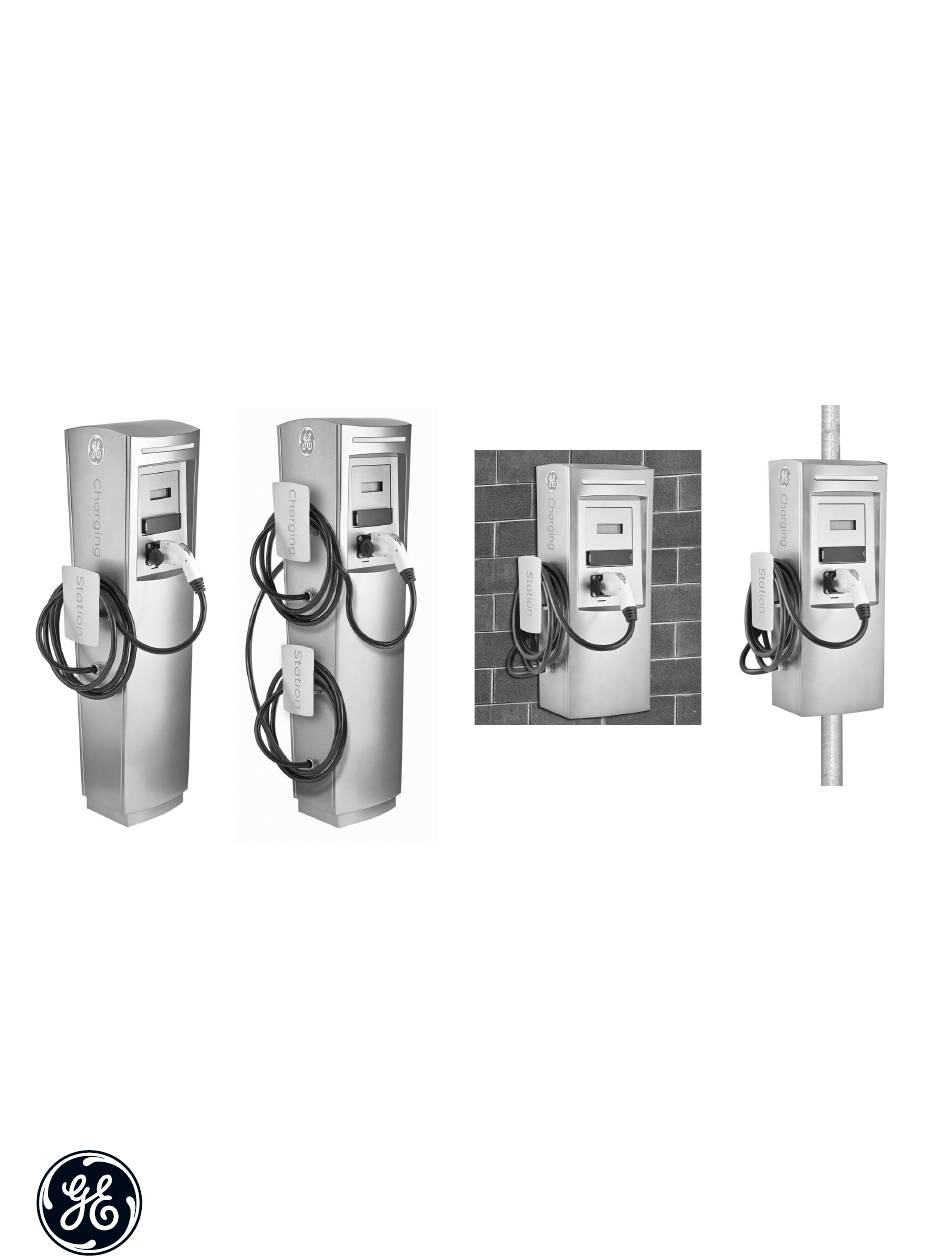

    Double Pedestal: 51.1"H x 14.9"W x 13.8"D Dimensions Pole: 31.52"H x 11.82"W x 11.16"D Wall: 31.52"H x 11.82"W x 11.16"D Enclosure The EV Charging Station features a NEMA 3R enclosure for all four mounting options. Double pedestal Wall mount Pole mount Single pedestal...
  • Page 5: Control Unit

    GE EV Charging Stations offer the option for Radio Frequency Identification (RFID). The ISO 15693 compliant RFID can be used with key cards provided by GE. Users will simply wave their key cards in front of the RFID reader at the particular EV Charging Station intended for use and will be authorized to start charging.
  • Page 6: Safety Features

    • Automatic energizing and de-energizing of charging circuit per NEC 625 and SAE J1772 • Support for personal lock on EVSE connector; enabling driver to lock the connector when charging their EV • Secured key entry on service door of EVSE •...
  • Page 7: Wiring Diagram

    208-240V 30A 1 phase 1 EVWRN3 Preferred Architectures Example 1 Example 2 Example 3 Adding 1 GE EV Charging Station to a Adding 3 EV Charging Stations to a Adding 12 EV Charging Stations to a single-family residence retail outlet hotel, parking garage, etc.
  • Page 8 GE has the domain expertise and channel partners to perform the type of upgrades that may be required to support the use of EV Charging Stations. The following information is a brief overview of upgrades in this space.
