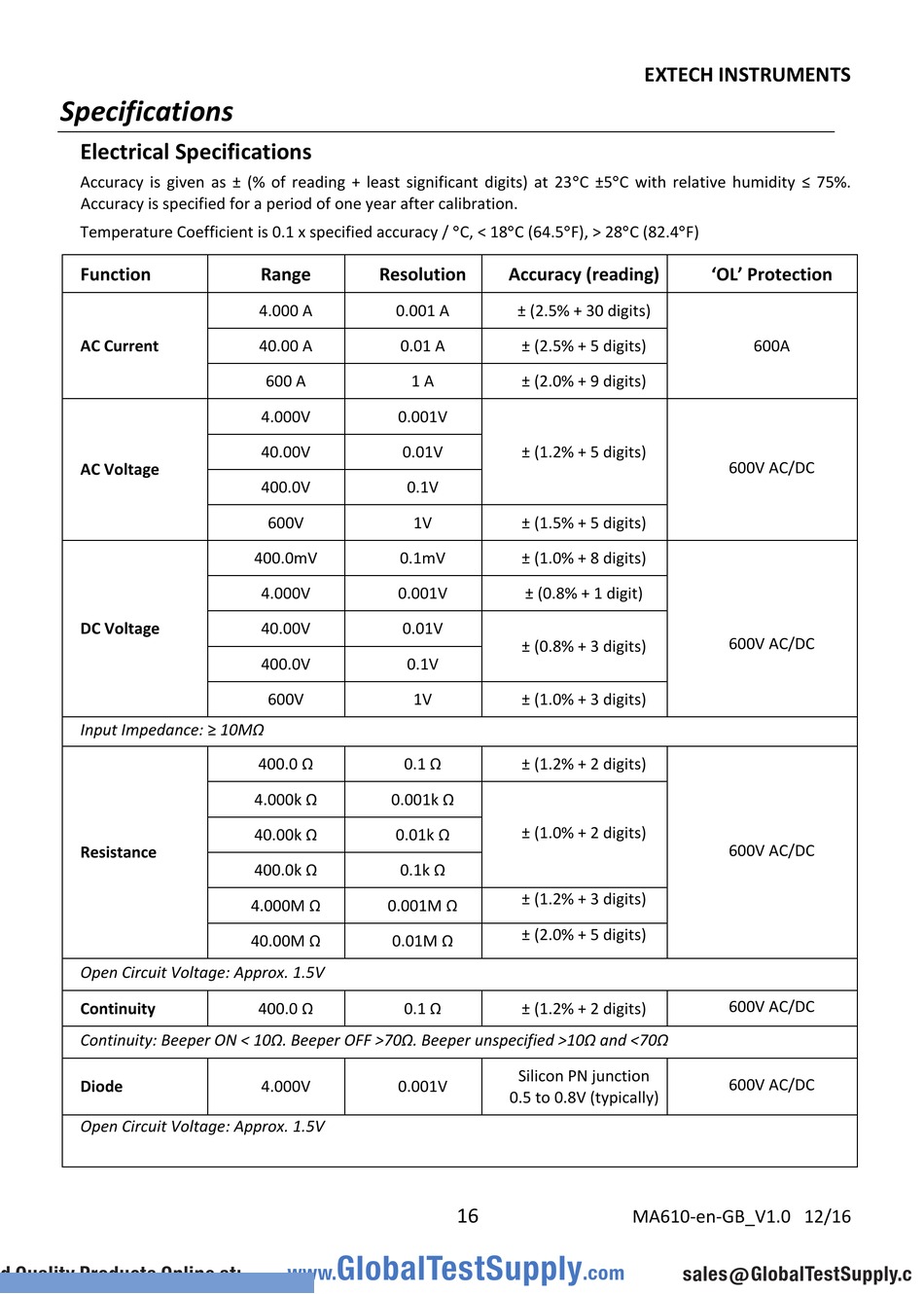

Specifications

Electrical Specifications

Accuracy is given as ± (% of reading + least significant digits) at 23C ±5C with relative humidity ≤ 75%.
Accuracy is specified for a period of one year after calibration.
Temperature Coefficient is 0.1 x specified accuracy / C, < 18C (64.5F), > 28C (82.4F)
Function
AC Current
AC Voltage
DC Voltage
Input Impedance: ≥ 10MΩ
Resistance
Open Circuit Voltage: Approx. 1.5V
Continuity
Continuity: Beeper ON < 10Ω. Beeper OFF >70Ω. Beeper unspecified >10Ω and <70Ω
Diode
Open Circuit Voltage: Approx. 1.5V
d Quality Products Online at:
Range Resolution
4.000 A 0.001 A
40.00 A 0.01 A
600 A 1 A
4.000V 0.001V
40.00V 0.01V
400.0V 0.1V
600V 1V
400.0mV 0.1mV
4.000V 0.001V
40.00V 0.01V
400.0V 0.1V
600V 1V
400.0 Ω 0.1 Ω
4.000k Ω 0.001k Ω
40.00k Ω 0.01k Ω
400.0k Ω 0.1k Ω
4.000M Ω 0.001M Ω
40.00M Ω 0.01M Ω
400.0 Ω 0.1 Ω
4.000V 0.001V
GlobalTestSupply
www.
Accuracy (reading)
± (2.5% + 30 digits)
± (2.5% + 5 digits)
± (2.0% + 9 digits)
± (1.2% + 5 digits)
± (1.5% + 5 digits)
± (1.0% + 8 digits)
± (0.8% + 1 digit)
± (0.8% + 3 digits)
± (1.0% + 3 digits)
± (1.2% + 2 digits)
± (1.0% + 2 digits)
± (1.2% + 3 digits)
± (2.0% + 5 digits)
± (1.2% + 2 digits)
Silicon PN junction
0.5 to 0.8V (typically)
16
.com
EXTECH INSTRUMENTS
'OL' Protection
600A
600V AC/DC
600V AC/DC
600V AC/DC
600V AC/DC
600V AC/DC
