Basys MX3™ Board Reference Manual
1

Programming the Board

1.1

Programming Tools

The Basys MX3 can be used with Microchip's standard MPLAB X IDE. This software suite can be downloaded for
free from the Microchip website and includes a free evaluation copy of the XC32 compiler for use with the PIC32
microcontroller family.
MPLAB X IDE is the tool used to write, compile, program, and debug code running on the Basys MX3 board.
Programming and debugging a program on the Basys MX3 using the MPLAB X IDE is possible using the DEBUG USB
connector. The board contains all the required circuitry for MPLAB X to communicate with the onboard PIC32, so
no additional programming tools need to be purchased.
When creating a new project in MPLAB X, a wizard allows you to setup the environment and device specific tools.
The steps for this include the following:
1. Select Microchip Embedded / Standalone Project, then use the "Select Device" option to specify the PIC32
microcontroller being used: PIC32MX370F512L.
2. Select the programming tool named Basys MX3 corresponding to the board you want to program, under
Licensed Debugger group.
3. Select the compiler you want to use.
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.

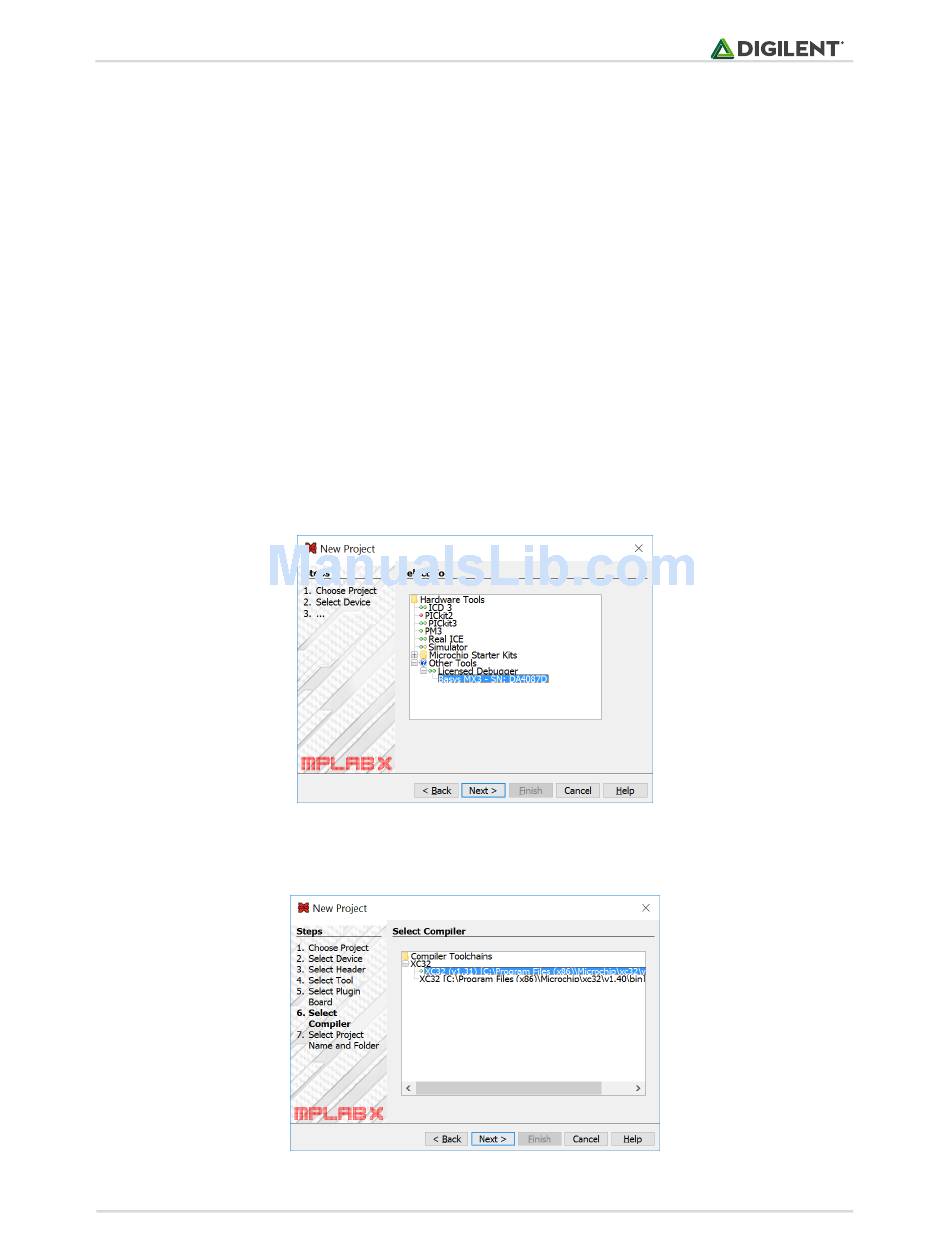

Figure 1.1. MPLAB X tool selection.
Figure 1.2. MPLAB X compiler selection.
