Basys MX3™ Board Reference Manual

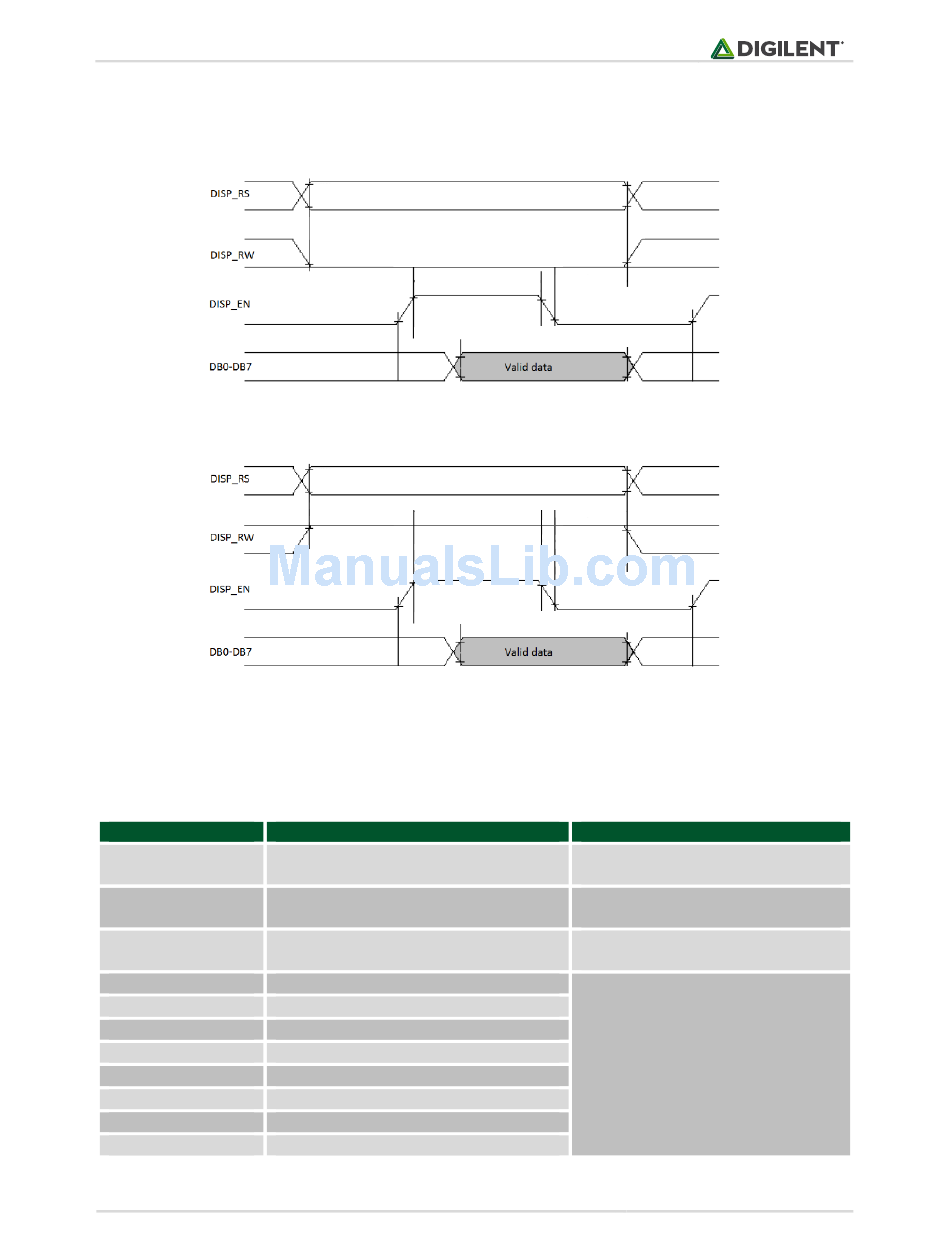

The following timing diagrams detail how write and read processes must be implemented. The essential difference
is the polarity of the DISP_RW signal (0 for write and 1 for read). For more detailed timing information, refer to the
KS0066U datasheet.
8.1

Connectivity

Name PIC32 Pin
DISP_RS AN15/RPB15/OCFB/CTED6/PMA0/RB15
DISP_RW RPD5/PMRD/RD5
DISP_EN RPD4/PMWR/RD4
DB0 PMD0/RE0
DB1 PMD1/RE1
DB2 AN20/PMD2/RE2
DB3 RPE3/CTPLS/PMD3/RE3
DB4 AN21/PMD4/RE4
DB5 AN22/RPE5/PMD5/RE5
DB6 AN23/PMD6/RE6
DB7 AN27/PMD7/RE7
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Figure 8.2. LCD write timing.
Figure 8.3. LCD read timing.
Table 8.1. LCD connectivity.
Description
Register Select: High for Data Transfer,
Low for Instruction Transfer.
Read/Write signal: High for Read
mode, Low for Write mode.
Read/Write Enable: High for Read,
falling edge writes data
Data bits 0 -7.
