Basys MX3™ Board Reference Manual
An external power supply can be used by plugging into Power Jack J11. The supply must use a coaxial, center-
positive 2.0 mm internal-diameter plug, and provide a voltage of 5V DC (4.75V minimum, 5.5V maximum). The
supply should provide a minimum current of 2A if servos are to be used. Ideally, the supply should be capable of
provide 20 Watts of power (5V DC, 4A). Many suitable supplies can be purchased from Digilent or other catalog
vendors.
The onboard motor driver (Texas Instruments DRV8835) may be powered by a 5V supply connected to Power Jack
J11, or by an external supply (0V-11V) connected to pins 1 and 2 of Terminal Block J5. Jumper JP1 is used to select
which power source is used by the motor driver.
Supply Circuits
PIC32MX370, PMODs, and all
onboard peripherals
3.3V
excluding the LCD backlight,
(VCC3V3)
RGB LED, IrDA LED, Servos,
and Motors
3.3V Onboard Microchip
(DBG3V3) Programmer/Debugger
3

User LEDs

Eight LEDs are provided, labeled LD0 – LD7 on the board (and LED0 – LED7 on the schematic), attached to eight
digital I/O pins. Controlling the LEDs is done by basic access to an output I/O pin. Read more details in the
Inputs and Outputs section.

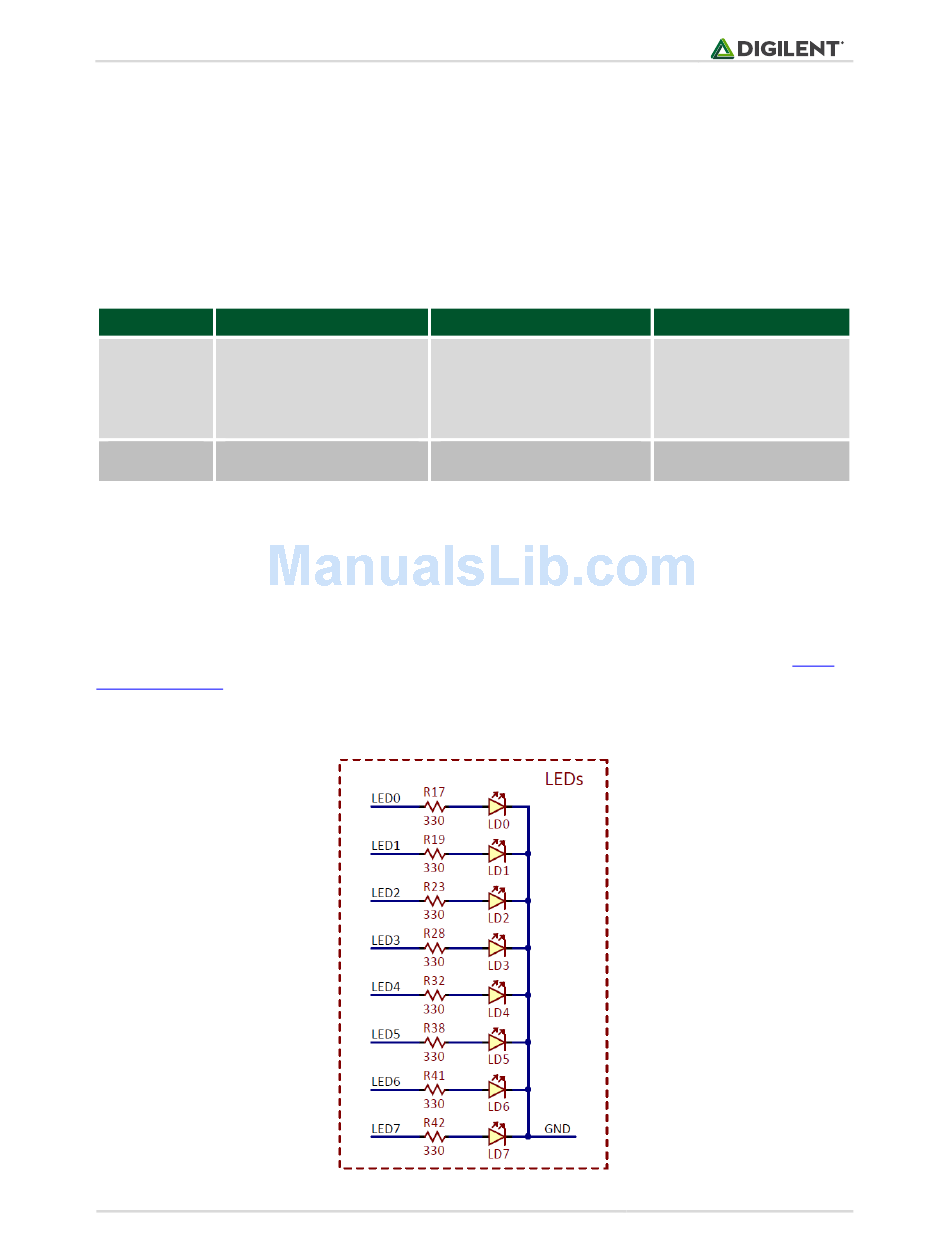

Figure 3.1 shows the way the LEDs are electrically connected on the Basys MX3.
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Device
IC10: Texas Instruments
LMR10515
IC11: Texas Instruments
LP2985IM5-3.3
Table 2.1. Power rail characteristics.
Current (max/typical)
1.5A/NA
150mA/NA
Digital
Page 13 of 56
