Basys MX3™ Board Reference Manual
Although ESD protection is provided between the connector pins and the microcontroller pins, ESD safe handling
procedures should be followed when handling the circuit board. The pins on the microcontroller and other circuits
on the board are exposed and can be damaged through ESD when handling the board.
Digilent Pmods can either be plugged directly into the connectors on the Basys MX3 or attached via cables.
Digilent has a variety of Pmod cables available.
You can read more details about the Digilent Pmod Interface Specification from the most recent specification
document, available on the

21 Analog Discovery Debug Header

The Basys MX3 board provides a 2x15 Debug Header, exposing some pins that allow key onboard peripheral
signals to be visualized with an oscilloscope or logic analyzer.
The connector is designed to match the Analog Discovery and OpenScope connectors, but the pins can be used
with other tools as well.
Table 21.1 below shows the signals exposed by this connector.
Silk Screen
Pin # Type
Name
1 SPI_SI RPF2/RF2
2 BIN2 AN5/C1INA/RPB5/RB5
3 SPI_CE RPF8/RF8
4 BIN1 RPE9/RE9
5 SPI_SO RPF7/RF7
6 AIN2 RPE8/RE8
7 SPI_SCK RPF6/SCK1/INT0/RF6
8 AIN1 PGED3/AN3/C2INA/RPB3/RB3
9 D_RS AN15/RPB15/PMA0/CTED6/RB15
10 IRRX PGEC2/AN6/RPB6/RB6
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Digilent Pmod Wiki.

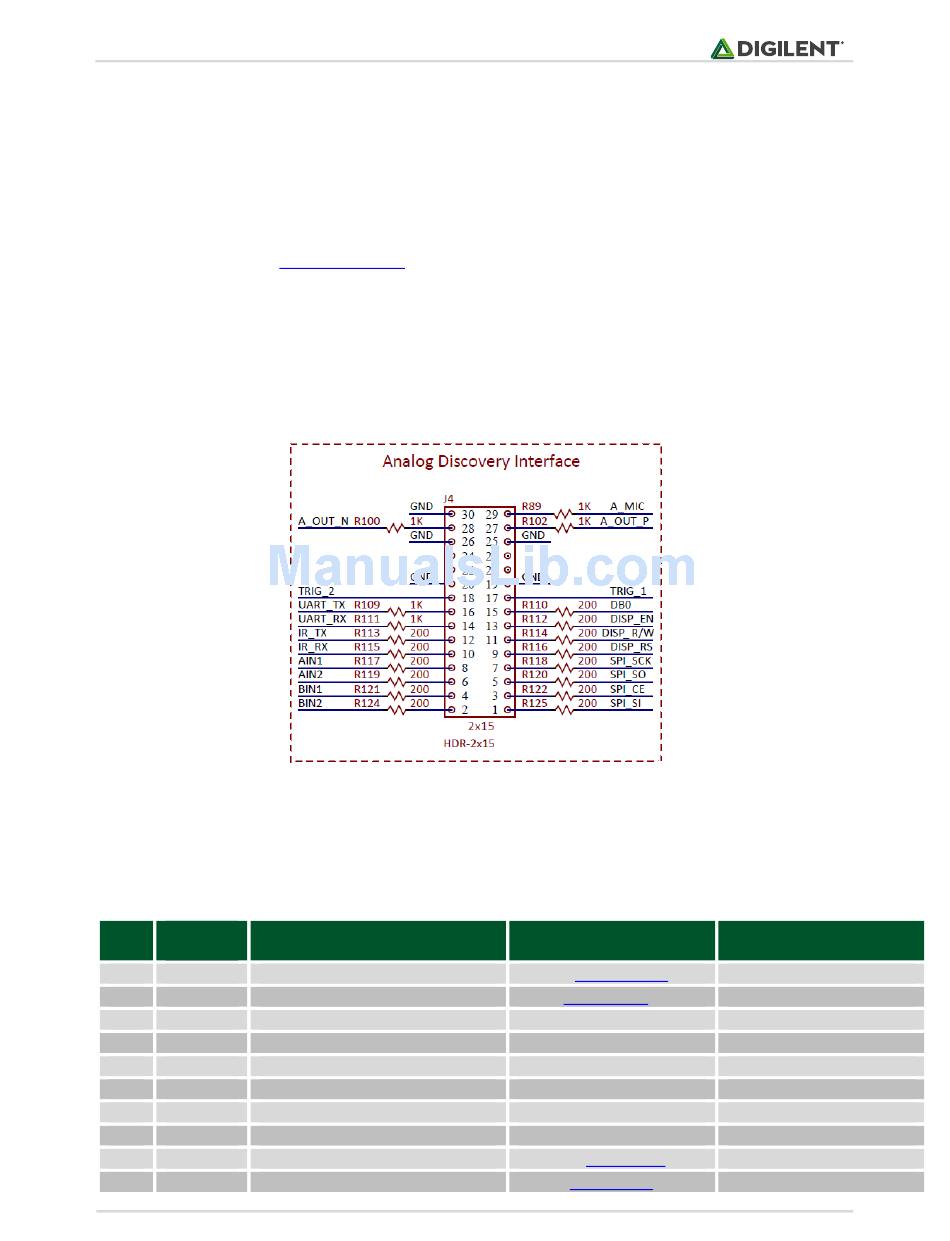

Figure 21.1. Debug header schematic diagram.
Connected to / Module
SPI_SI / Flash memory
BIN2 / Motor driver
SPI_CE / Flash memory
BIN1 / Motor driver
SPI_SO / Flash memory
AIN2 / Motor driver
SPI_SCK / Flash memory
AIN1 / Motor driver
DISP_RS / LCD module
IR_RX / IrDA module
Analog Discovery pin
Digital IO 7
Digital IO 15
Digital IO 6
Digital IO 14
Digital IO 5
Digital IO 13
Digital IO 4
Digital IO 12
Digital IO 3
Digital IO 11
Page 45 of 56
