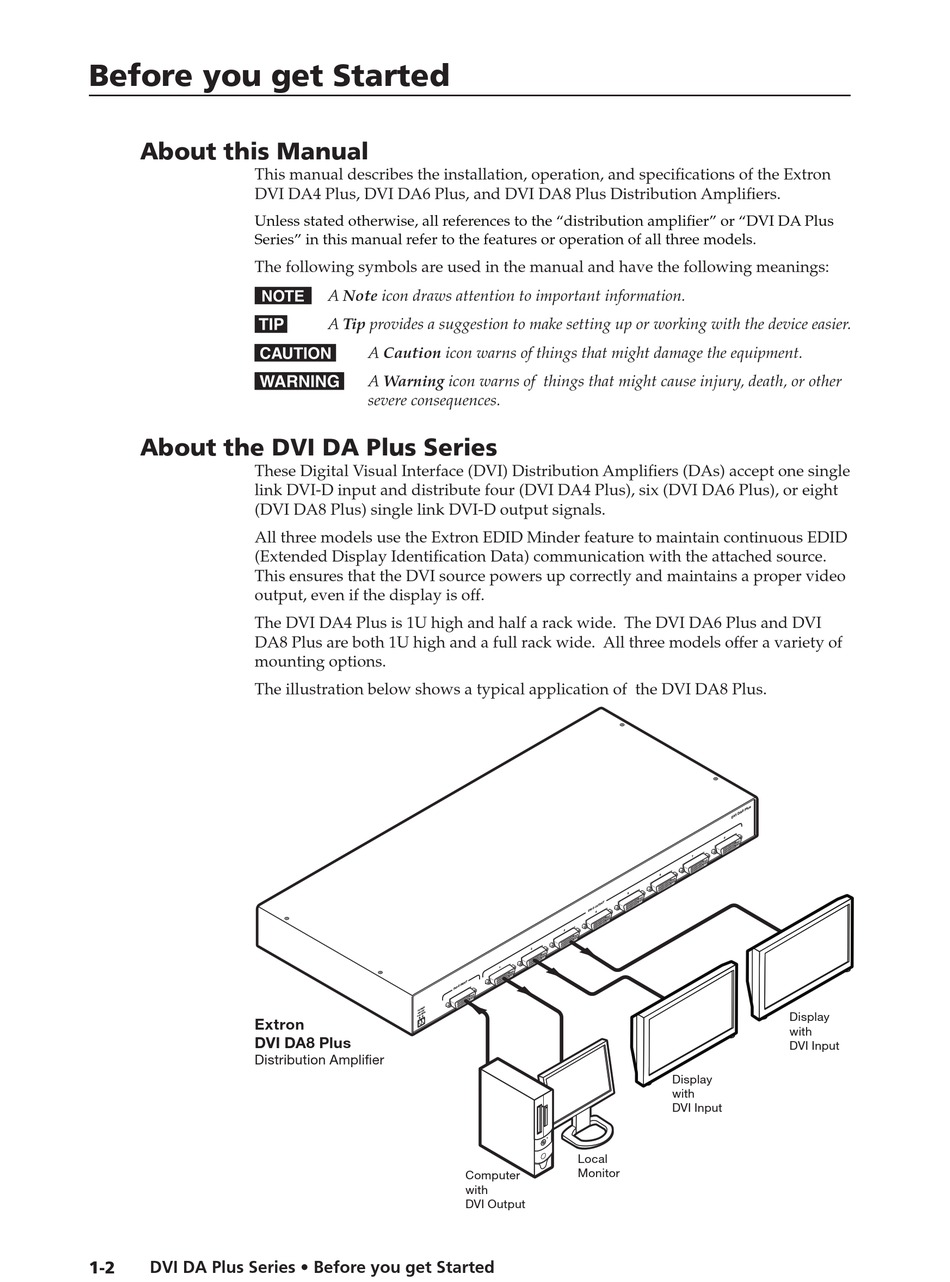

Before you get Started
About this Manual
This manual describes the installation, operation, and specifications of the Extron
DVI DA4 Plus, DVI DA6 Plus, and DVI DA8 Plus Distribution Amplifiers.
Unless stated otherwise, all references to the "distribution amplifier" or "DVI DA Plus
Series" in this manual refer to the features or operation of all three models.
The following symbols are used in the manual and have the following meanings:
N A Note icon draws attention to important information.
T
C
W
About the DVI DA Plus Series
These Digital Visual Interface (DVI) Distribution Amplifiers (DAs) accept one single
link DVI-D input and distribute four (DVI DA4 Plus), six (DVI DA6 Plus), or eight
(DVI DA8 Plus) single link DVI-D output signals.
All three models use the Extron EDID Minder feature to maintain continuous EDID
(Extended Display Identification Data) communication with the attached source.
This ensures that the DVI source powers up correctly and maintains a proper video
output, even if the display is off.
The DVI DA4 Plus is 1U high and half a rack wide. The DVI DA6 Plus and DVI
DA8 Plus are both 1U high and a full rack wide. All three models offer a variety of
mounting options.
The illustration below shows a typical application of the DVI DA8 Plus.
Extron
DVI DA8 Plus
Distribution Ampli er
1-2 DVI DA Plus Series • Before you get Started
A Tip provides a suggestion to make setting up or working with the device easier.
A Caution icon warns of things that might damage the equipment.
A Warning icon warns of things that might cause injury, death, or other
severe consequences.
1
T
P U
IN
I- D
D V
W E R
P O
V A X
1 2
A M
0 .4
Computer
with
DVI Output
7
6
5
U T
T P
O U
I- D
D V
4
3
2
Display
with
DVI Input
Local
Monitor
s
P lu
A 8
I D
D V
8
Display
with
DVI Input
