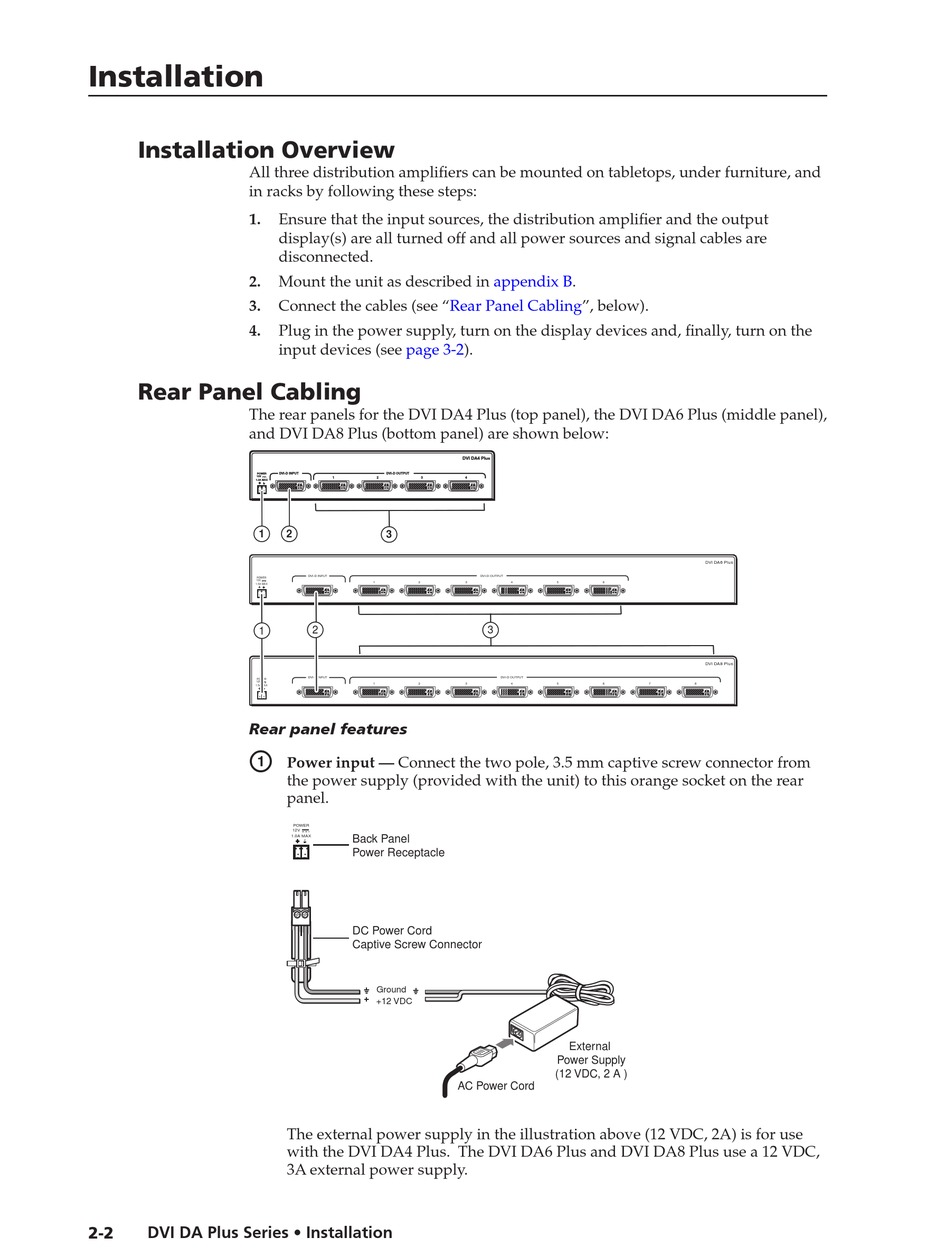

Extron electronics DVI DA4 Plus User Manual page 12

Installation
Installation Overview
All three distribution amplifiers can be mounted on tabletops, under furniture, and
in racks by following these steps:
1.
2.
3.
4.
Rear Panel Cabling
The rear panels for the DVI DA4 Plus (top panel), the DVI DA6 Plus (middle panel),
and DVI DA8 Plus (bottom panel) are shown below:
POWER
12V
1.0A MAX
1
POWER
12V
1.5A MAX
1
POWER
12V
1.5A MAX
Rear panel features
a
2-2 DVI DA Plus Series • Installation
Ensure that the input sources, the distribution amplifier and the output
display(s) are all turned off and all power sources and signal cables are
disconnected.
Mount the unit as described in
Connect the cables (see "Rear Panel
Plug in the power supply, turn on the display devices and, finally, turn on the
input devices (see page 3-2).
DVI-D INPUT DVI-D OUTPUT
1 2 3
2 3
DVI-D INPUT
1 2
2
DVI-D INPUT
1 2
Power input — Connect the two pole, 3.5 mm captive screw connector from
the power supply (provided with the unit) to this orange socket on the rear
panel.
POWER
12V
1.0A MAX Back Panel
Power Receptacle
DC Power Cord
Captive Screw Connector
Ground
+12 VDC
The external power supply in the illustration above (12 VDC, 2A) is for use
with the DVI DA4 Plus. The DVI DA6 Plus and DVI DA8 Plus use a 12 VDC,
3A external power supply.
appendix B.
Cabling", below).
DVI DA4 Plus
4
DVI-D OUTPUT
3 4 5 6
3
DVI-D OUTPUT
3 4 5 6
External
Power Supply
(12 VDC, 2 A )
AC Power Cord
DVI DA6 Plus
DVI DA8 Plus
7 8
