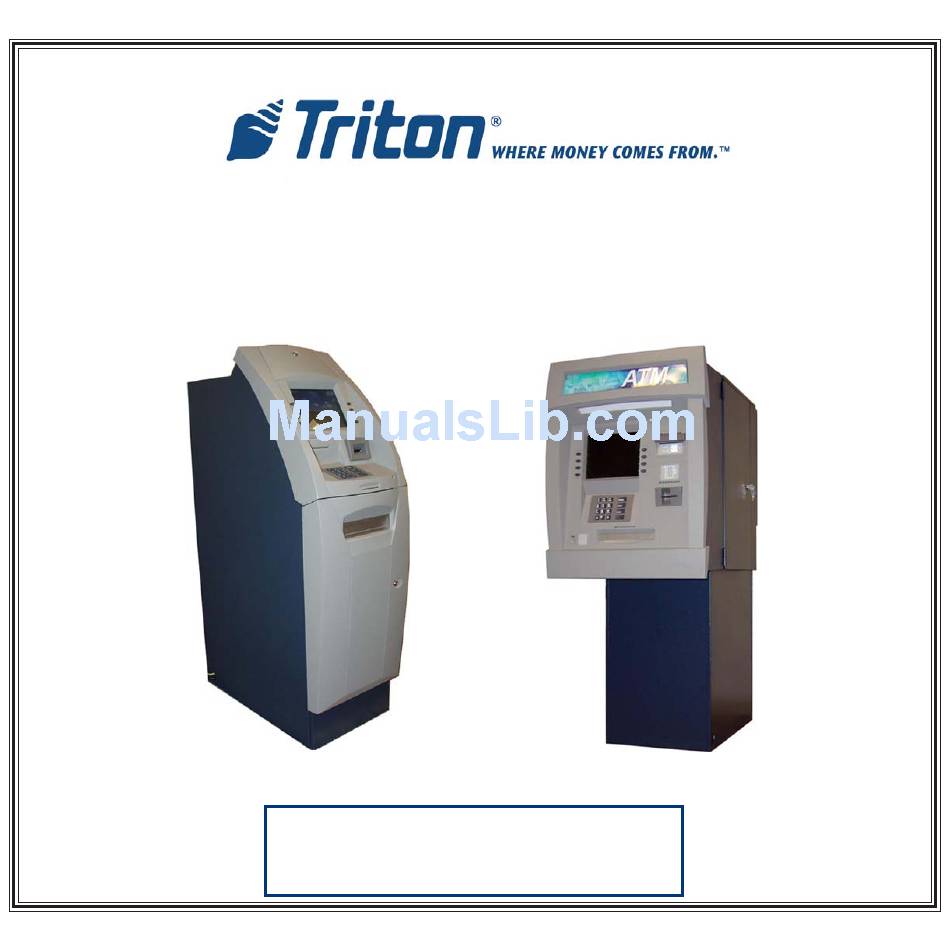

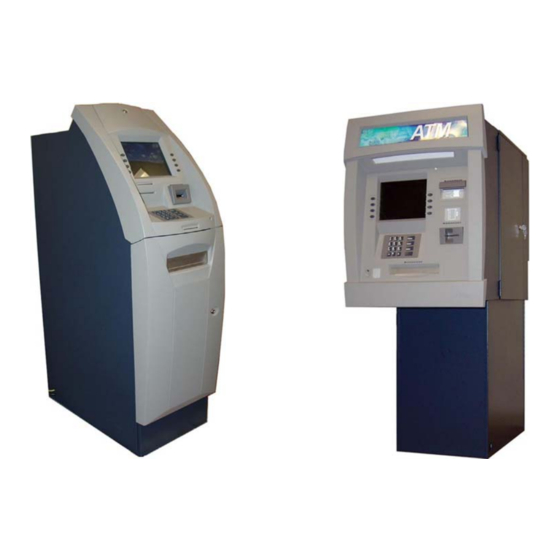

- Page 1 Models RL/FT5000 UICK EFERENCE FT5000 RL5000 THIS AREA FOR SERVICE PROVIDER CONTACT INFORMATION: TDN 07102-00061...
- Page 2 MANAGEMENT FUNCTIONS ACCESS INSTRUCTIONS AT ATM WELCOME SCREEN, PRESS AND HOLD DOWN <CTRL> KEY (LOWER-RIGHT CORNER OF KEYPAD), PRESS <1> KEY, THEN RELEASE BOTH KEYS. THE SECURITY LOGIN SCREEN WILL BE DISPLAYED. ENTER THE 2-DIGIT USER ID. PRESS <ENTER> KEY. ENTER THE USER PASSWORD AND PRESS <ENTER> KEY. THE MAIN MENU IS DISPLAYED.
- Page 3 REPLENISH CASSETTE(S) THE REPLENISH CASSETTE(S) FUNCTION ALLOWS USER TO UNLOCK/LOCK THE CASSETTE(S) FOR CURRENCY REPLENISHMENT. GO TO MAIN MENU FUNCTIONS USING ACCESS INSTRUCTIONS. SELECT TER- MINAL SETTLEMENT FUNCTIONS. CHOOSE REPLENISH CASSETTE(S). A SCREEN WARNING APPEARS THAT THE TIMEOUT FUNCTION NORMALLY ASSOCIATED WITH MANAGEMENT FUNCTIONS IS DISABLED.
- Page 4 REPLENISHING CASSETTE(S) ACTION STEP ACTION STEP UNLOCK/OPEN CABINET. EXTEND THE “PAWLS” GRASP THE CASSETTE FULLY (INSERT) ON THE HANDLE WITH ONE HAND PUSHER PLATE. WHILE HOLDING THE MECHANISM WITH THE OTHER. PULL THE CASSETTE OUT SLIGHTLY, THEN PLACE ONE HAND UNDERNEATH AS YOU SLIDE IT OUT.
- Page 5 REPLACING RECEIPT PRINTER PAPER (RL STEP ACTION ACTION STEP ACTION STEP CUT REMAINING PAPER TO PRESS FEED BUTTON TO CLEAR LIFT SPINDLE TO REMOVE PAPER ALLOW REMOVAL. PAPER FROM PAPER PATH. ROLL AND SPINDLE. Paper feed button PLACE NEW PAPER ROLL ON FEED END OF PAPER OVER THE REMOVE OLD PAPER ROLL.
- Page 6 REPLACING RECEIPT PRINTER PAPER (FT STEP ACTION ACTION STEP ACTION STEP CUT REMAINING PAPER TO PRESS FEED BUTTON TO CLEAR LIFT SPINDLE TO REMOVE PAPER ALLOW REMOVAL. PAPER FROM PAPER PATH. ROLL AND SPINDLE. Paper feed button PLACE NEW PAPER ROLL ON FEED END OF PAPER INTO FEED REMOVE OLD PAPER ROLL.
