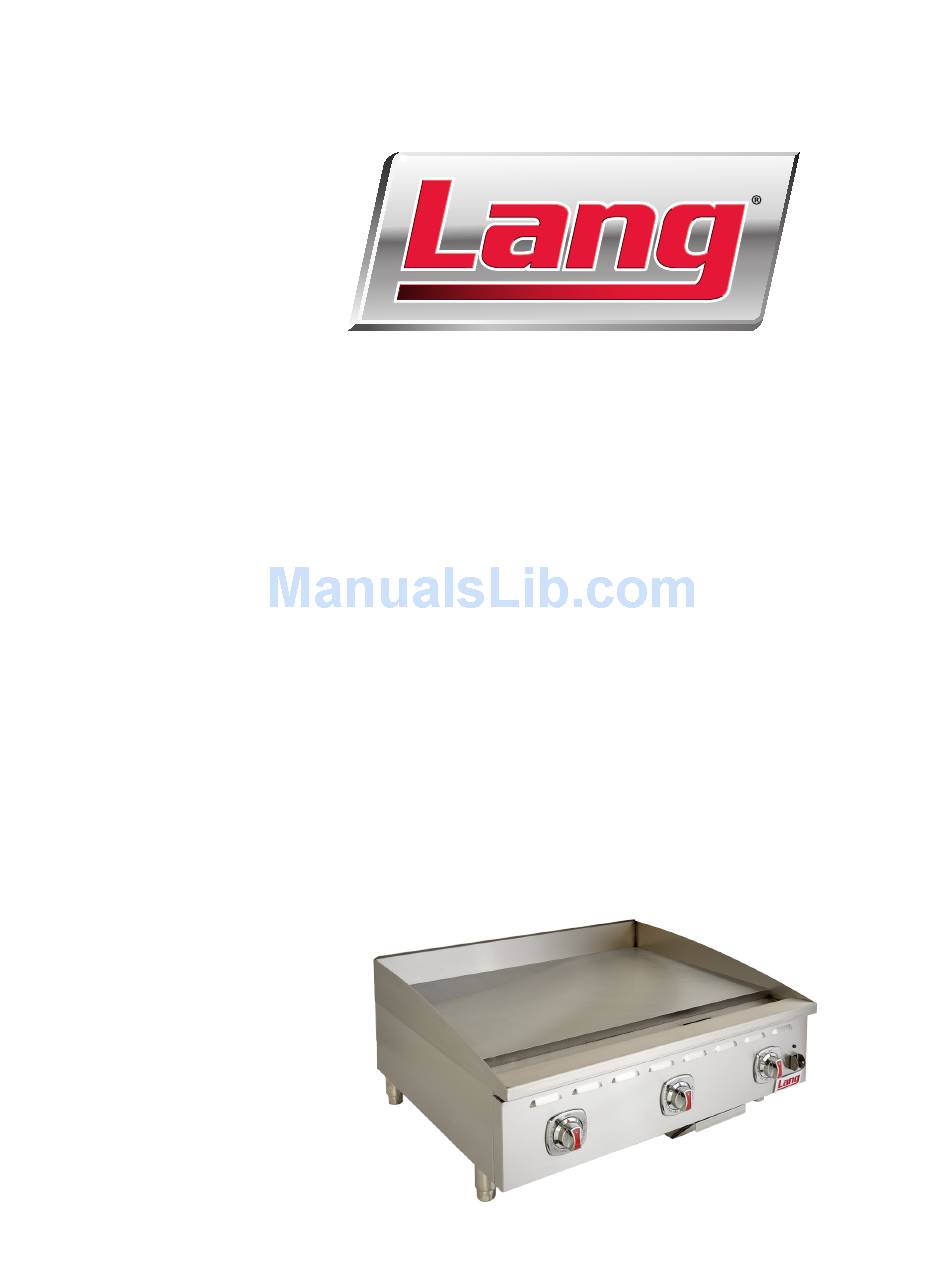

Gas Griddle
Owner's Manual
Models
424T, 436T, 448T, 460T, 472T,
424TC, 436TC, 448TC, 460TC, 472TC,
424S, 436S, 448S, 460S, 472S,
424SC, 436SC, 448SC, 460SC, 472SC
This manual includes material related to installation,
use , cleaning, and care. Exploded view[s], as well
as any available parts list[s] and wiring diagram[s]
pertaining to the unit[s] covered by this manual are
also included.
This manual must be read and understood by all
persons using or installing this appliance. Contact
your Lang dealer if you have any questions concerning
installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
436T
2M-Z22112 • Rev. - • 02.2017
Advertisement
Related Manuals for Lang 424T
Summary of Contents for Lang 424T
- Page 1 This manual must be read and understood by all persons using or installing this appliance. Contact your Lang dealer if you have any questions concerning installation, use, or maintenance of this equipment. DO NOT DISCARD THIS MANUAL. 436T...
- Page 2 Star, Lang, or Toastmaster Email customerservice@star-mfg.com www.star-mfg.com • www.langworld.com • www.toastmastercorp.com parts sold to repair Star, Lang, or 90 days Toastmaster equipment The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
- Page 3 TABLE OF CONTENTS Warranty General Information Installation and Gas Connection Daily Operation Specifications...
- Page 4 NOTES...
- Page 5 SAFETY SYMBOLS These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to ensure delivery of your unit in perfect condition.
-
Page 6: Gas Connection
GENERAL SAFETY INFORMATION This equipment is designed and sold for commercial use only, and is intended for use by personnel trained and experienced in its operation. This is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions and labels associated with the unit prior to putting it into operation. - Page 7 This appliance and its pressure regulator must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG (3.45KPA). For the protection of you and your property, we recommend a qualified installing agency install this unit.
-
Page 8: Lighting Instructions
CONNECTING GAS SUPPLY LINE The gas inlet of the griddle is sealed at the factory to prevent the entry of dirt and debris. Do not remove this seal until the actual connection is made to the gas supply line. CHECKING FOR GAS LEAKS Soap and water solution or other material acceptable for the purpose should be used in locating gas leakage. - Page 9 DAILY OPERATION GRIDDLE CARE SEASONING THE GRIDDLE HEATING SURFACE It takes very little time and effort to keep the griddle After the griddle has been thoroughly cleaned, it should attractive and performing at top efficiency. If grease be seasoned to prevent food from sticking. Before using is permitted to accumulate, it forms a viscous residue and after each thorough scouring, season the griddle and then carbonizes, making it extremely difficult to...
-
Page 10: Specifications
SPECIFICATIONS 424T shown 4 in. (102 mm) 424T shown 18 in. (457 mm) 13.75 in. (607 mm) 0.7 in. 4.8 in. 1.2 in. (18 mm) (122 mm) (30 mm) 23.9 in. (607 mm) CLEARANCES 24 in. The sides and back must be at least six [6] inches (152 mm) from... - Page 12 LANG MANUFACTURING www.langworld.com • Printed in the U.S.A. • 2M-Z22112 • Rev - • 02.2017 Specifications are subject to change without notice. 10 Sunnen Drive Saint Louis, Missouri 63143 • Telephone 314 678 6315 Fax 314 781 3636 •...
