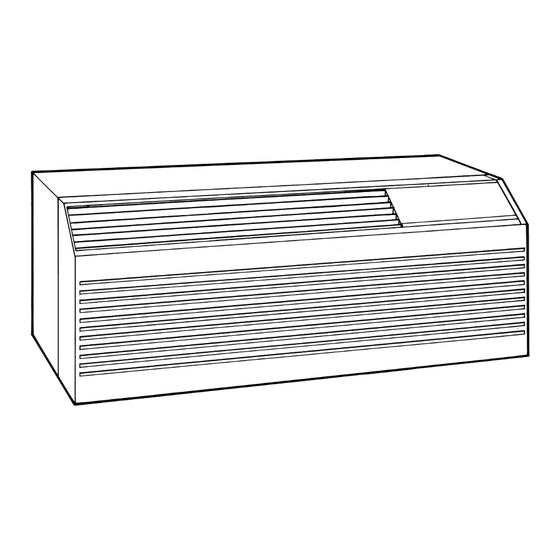

ARCHITECTS AND ENGINEERS' MANUAL
MODEL 52S
PACKAGED TERMINAL
AIR CONDITIONERS
AND HEAT PUMPS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
New Construction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Retrofit/Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Quiet Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Most Efficient Performance . . . . . . . . . . . . . . . . . . . . . . 4
Efficient Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
One-Piece Washable Indoor Filter . . . . . . . . . . . . . . . . . 5
Easy-to-Use Controls . . . . . . . . . . . . . . . . . . . . . . . . . 6
Washable Vent Air Filter . . . . . . . . . . . . . . . . . . . . . . . . 6
Bi-Directional Discharge Grille . . . . . . . . . . . . . . . . . . . 6
Easy Access to Chassis. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Hidden Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Enhanced Copper Tubing . . . . . . . . . . . . . . . . . . . . . . . . 8
Seamless Basepan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
October 2000
CONTENTS
Page
. . . . . . . . . . . . . . . . . . . . . . . 3
. . . . 4-10
Copyright  Carrier Corporation
Condensate Drain Valve. . . . . . . . . . . . . . . . . . . . . . . . . 8
Condensate Removal System. . . . . . . . . . . . . . . . . . . . . 8
Carrier Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Heat Pumps Pay Their Own Way. . . . . . . . . . . . . . . . . . 9
Heat Pump Energy Savings . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . 11-20
Product Catalog Number . . . . . . . . . . . . . . . . . . . . . . . 11
Factory-Installed Options. . . . . . . . . . . . . . . . . . . . . . . 12
Field-Installed Accessories . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . 21-26
. . . . . . . . . . . . . . . . . . . . . . . . . 27-35
. . . . . . . . . . . . . . . . . . . . . 36-40
. . . . . . . . . . . . . . . . . . . . . . . . . . 45
STANDARD COLORS
. . . . . . . . . . . Inside Back Cover
Page
. . . . . . . . . . . . . . . . .41,42
. . . . . . . . . . . . . . . . . . . .43,44
Cat. No. 592-074
