Carrier 52S Installation Instructions Manual

Carrier 52S Installation Instructions Manual

Wall thermostat interface retrofit kit accessory for use with packaged terminal air conditioner or heat pump
Hide thumbs Also See for 52S:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

INTRODUCTION
These instructions cover the installation of the 52S Wall
Thermostat Interface Retrofit Kit accessory with Indoor Coil
Freeze Thermostat (IFT) to be installed on 52S packaged termi-
nal air conditioner (PTAC) products. See Fig. 1. Indoor coil
freeze thermostat protection protects the indoor coil from
freezing.
SAFETY CONSIDERATIONS
Only trained, qualified personnel and service mechanics
should install electrical accessories on packaged terminal air
conditioners or heat pumps.
PACKAGE CONTENTS
ITEM
Wall Thermostat Control Panel
Indoor Coil Freeze Thermostat Clips
Control Panel Label
Wiring Schematic Label
Conversion Label
Hi Speed/Low Speed Label
Remote Wiring Access Cover
Wire Nut
Wire Ties
No. 10 Hex Head Screws
WALL
THERMOSTAT
CONTROL
PANEL
REMOTE WIRING
ACCESS COVER
NO. 10 HEX
HEAD SCREWS

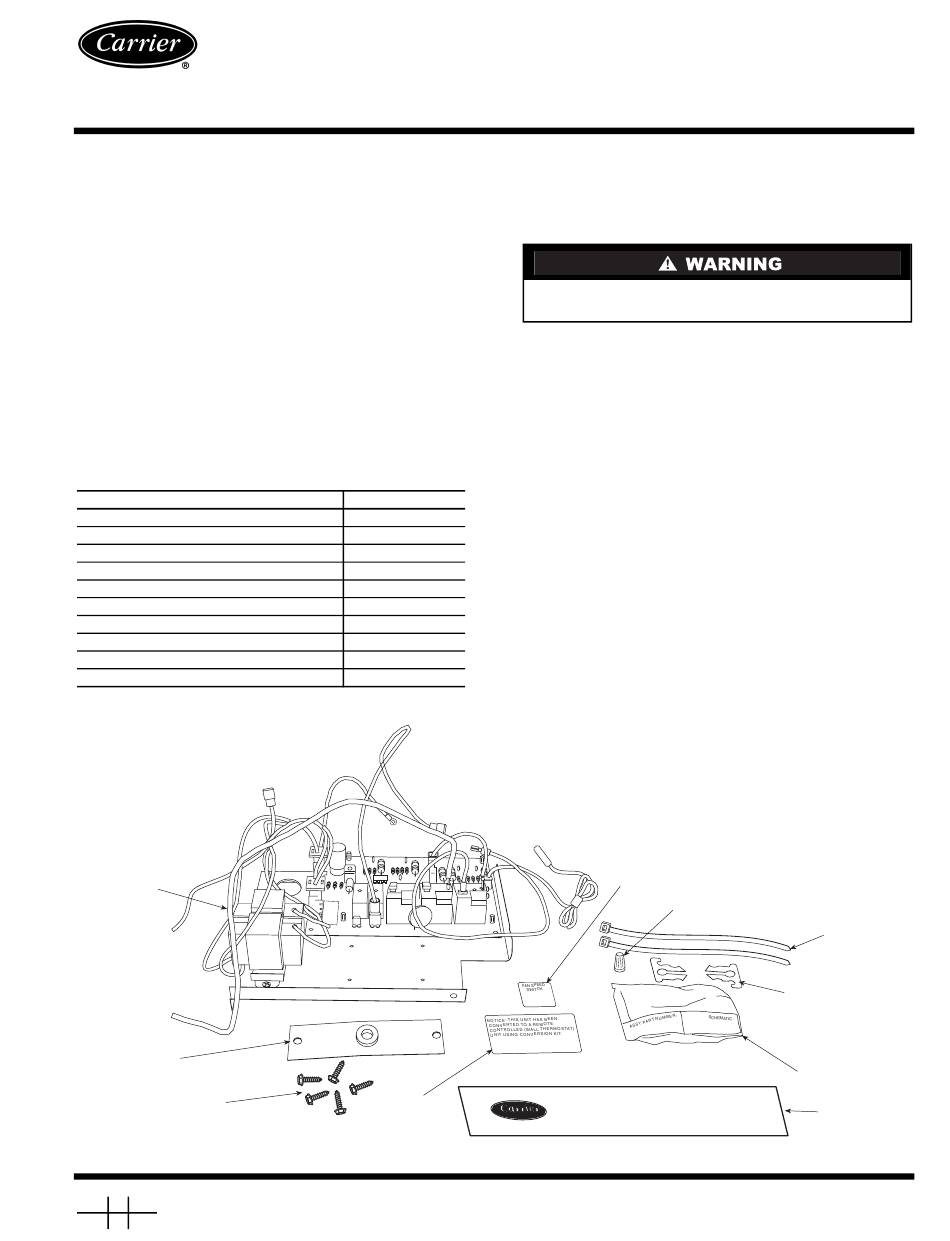

Fig. 1 — Wall Thermostat Interface Retrofit Assembly Package Contents
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 132
Book 1
4
Tab
9a 11a
52S Wall Thermostat Interface Retrofit Kit Accessory
Installation Instructions
QUANTITY
1
2
1
1
1
1
1
1
2
5
CONVERSION
LABEL
Catalog No. 535-20051
Printed in U.S.A.
Packaged Terminal Air Conditioner
INSTALLATION
Disconnect all power to unit to avoid possible electrical
shock during installation.
Prepare Unit
1. Check to be sure unit is off and power to unit is
disconnected.
2. Remove front panel from the unit. See Fig. 2.
3. Remove the thermostat knob (grip and pull firmly) and
discard. See Fig. 3.
4. Remove the plastic control panel cover plate (by remov-
ing 2 attachment screws) and save. See Fig. 3.
5. Remove the temperature limiter off thermostat control
shaft (grip and pull firmly) and discard. See Fig 4.
6. Open control box by removing the 2 control box cover
screws shown in Fig. 3 and swing the cover down to
open. Save the screws.
7. Remove wire ties and discard, making sure not to damage
the wires.
8. Remove Push Button Switch from control box door (by
removing 2 attachment screws) and discard screws. See
Fig. 5.
9. Remove thermostat control from control box door (by
removing 2 attachment screws) and discard screws. See
Fig. 5.
HI SPEED/LO SPEED
LABEL
WIRE NUT
HI
LO
WIRE
WALL THERMOSTAT COMFORT
Form 52S-66SI
Pg 1
For Use With
or Heat Pump
WIRE TIES
INDOOR COIL FREEZE
THERMOSTAT CLIPS
WIRING SCHEMATIC
LABEL
CONTROL
PANEL LABEL
11-02
Replaces: New
