DIMENSION DRAWINGS AND INSTALLATION

DATA — NEW CONSTRUCTION

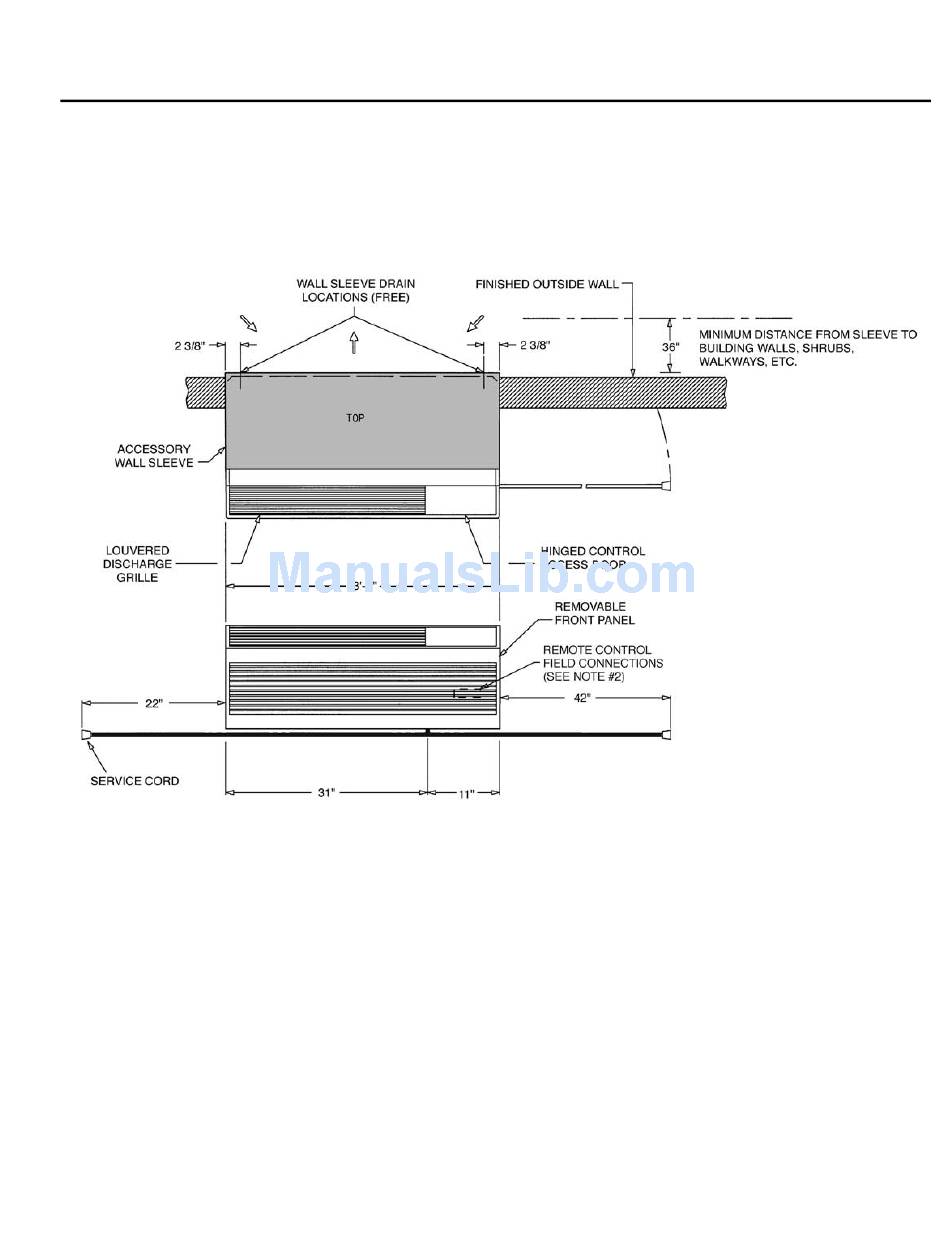

TYPICAL WALL INSTALLATION

Proper building practices must be used when con-

structing a wall opening to support a PTAC wall sleeve

and chassis.

NOTES:

1. Sleeve can be flush mounted to floor, but front panel

may have to be notched to accommodate service cord

(except when subbase is used).

If practices are unknown, consult your local architect

or building contractor.

Installed wall sleeve must be level from side to side

and front to back.

2. Wall thermostat control models (52S series ''RC'' units)

use low voltage connections (24 volt) qualified with a

manual changeover thermostat.

52S Dimension Drawing
