a52-1337
© Carrier Corporation 2013
Product
Data

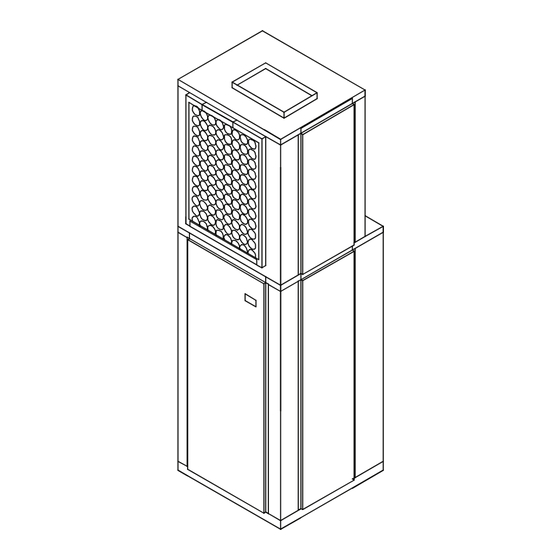

52VCR,VER,VQR,VWR09-24
Terminal Air Conditioners
Cooling Only, Electric Heat,
Heat Pump, or Hot Water Heat Units
with PURON
®
Vertical Packaged
Refrigerant (R-410A)
9,000 to 24,000 Nominal Btuh
The 52V Series vertical packaged
units offer the following advantages:
• Completely pre-charged with Puron
environmentally sound refrigerant
(R-410A)
• Easy access for in-place service of
most components
• Multi-function microprocessor board
• Completely insulated cabinet for
sound attenuation and weather
infiltration
• Adjustable fresh air damper
• Tool-less filter replacement
• Weight-supporting, single piece wall
sleeves (except side access
sleeves) for various wall
thicknesses from 5 to 20-in.
• Primary condensate drain
connection on sleeves with
secondary overflow to building
exterior
• All sleeves are shipped with a
weather guard
• Flush type exterior architectural
louvers
Features/Benefits
Carrier's 52V vertical
packaged unit offers design
flexibility, quality, reliabilty,
and multi-function controls
Solid-state circuit board
The circuit board incorporates the fol-
lowing control features:
Evaporator coil low temperature
protection protects the unit. During
the cooling mode, should the evapora-
tor coil experience either a low tem-
perature condition that could result in
ice build-up on the coil or a reduced
airflow situation, a temperature sensor
attached to the coil will deenergize the
unit. The sensor will reenergize the
unit when the coil warms up.
Form 52V-3PD
Advertisement
Table of Contents
Related Manuals for Carrier 52VQR09
Summary of Contents for Carrier 52VQR09
- Page 1 The sensor will reenergize the unit when the coil warms up. © Carrier Corporation 2013 Form 52V-3PD...
-
Page 2: Table Of Contents
Features/Benefits (cont) Low ambient lockout locks out com- the sleeve and the ductwork and elec- disconnecting the condensate piping. pressor at ambient temperatures below trical are connected. This configuration does not require any 40 F to extend compressor life. additional closet space to make the The sleeve is weight-bearing and sup- drain connection, as do some competi- Random restart is used when power... -
Page 3: Model Number Nomenclature
52VCR UNIT SHOWN APPROXIMATE FASTENER LOCATIONS ARCHITECTURAL GRILLE ELECTRICAL DISCONNECT REAR ACCESS WALL SLEEVE PANEL DRAIN TO OUTSIDE ELECTRICAL SERVICE a52-1338 KNOCK-OUT Model number nomenclature 52 — Vertical Packaged Heater Type Terminal Air 00 — None Conditioner 02 — 2 kW Electric Heat (sizes 09 and 12 only) 03 —... -
Page 4: Capacity Ratings
Capacity ratings COOLING RATINGS — 52VCR COOLING ONLY, 52VER HEATING RATINGS — 52VQR HEAT PUMP UNITS ELECTRIC HEATING, AND 52VWR HOT WATER HEAT UNITS HEATING UNIT CAPACITY (Btuh) COOLING 52VQR09 8,500 UNIT CAPACITY (Btuh) 52VQR12 11,500 52VCR,VER,VWR09 8,900 52VQR18 16,700... -
Page 5: Physical Data
HEATING RATINGS — 52VWR HOT WATER HEAT UNITS BTUH (x1000) AT ENTERING WATER TEMPERATURE AIR FLOW PRESSURE UNIT (CFM) DROP (in. wg) 120 F 140 F 180 F 12.7 17.8 28.0 12.2 17.1 26.9 11.5 16.1 25.3 52VWR12 10.6 14.8 23.3 10.2 14.3... -
Page 6: Field-Installed Accessories
Field-installed accessories Wall sleeves — Wall sleeves are available as a rear or side Interior panel — The interior panel is used for access to installation. The wall sleeve can be installed during con- the unit installed in the closet. The panel is available as a struction and the unit installed at a later time. -
Page 7: Base Unit Dimensions
6 1/2 6 1/2 SERVICE PULLOUT NOTE: Dimensions are in inches. ELECTRICAL KNOCKOUT CONDESER OUTLET VOLTAGE 41 1/4 CONDENSER INLET a52-1340 52VQR09-24 HEAT PUMP UNITS DUCT OPENING FILTER 6 1/8 ELEMENT RETURN AIR DIMENSIONS UNIT (in.) BLOWER 52VQ,VQR MOTOR 09,12,18... - Page 8 Base unit dimensions (cont) 52VWR12-24 COOLING WITH HOT WATER HEAT UNITS HOT WATER a52-1342 3-3/4 DUCT OPENING INLET (1) 1-1/2 12-3/4 3-3/4 HOT WATER COIL RETURN BLOWER MOTOR FILTER SERVICE PULLOUT ELECTRICAL 71-1/4 KNOCKOUT CONDENSER OUTLET VOLTAGE 41-1/4 CONDENSER INLET NOTES: 1.
-
Page 9: Accessory Dimensions
Accessory dimensions INTERIOR PANEL 31 in. a52-1343 28 in. PANEL DIMENSIONS (in.) PART NO. 52VX-LP-L (Louvered Panel) 52VX-SP-L (Solid Panel) 52VX-LP-S (Louvered Panel) 52VX-SP-S (Solid Panel) WALL SLEEVE AND EXTERIOR GRILLE a52-1344 WALL SLEEVE DIMENSIONS (in.) WALL PART NO. THICKNESS 52VX-SS-1 5-8 in. -
Page 10: Performance Data
Performance data FAN PERFORMANCE (CFM) — 52VCR,VER UNITS MOTOR EXTERNAL STATIC PRESSURE (in. wg) UNIT SIZE SPEED 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 SETTING* HIGH MEDIUM LOW (C) (H) HIGH MEDIUM (C) LOW (H) HIGH MEDIUM (C) LOW (H) HIGH MEDIUM (C) LOW (H) -
Page 11: Electrical Data
Electrical data 52VCR,VER UNITS (208/230 V-1 Ph-60 Hz) BLOWER CONDENSER ELECTRIC HEAT DATA DATA DATA MOCP Total UNIT SIZE Evaporator Condenser Compressor Heating Heater Motor Motor Amps Type Amps 230v 208v 230v 208v 230v 208v 230v 208v — — — —... -
Page 12: Electrical Data
Electrical data (cont) 52VQR UNITS (208/230 V-1 Ph-60 Hz) BLOWER CONDENSER ELECTRIC HEAT DATA DATA DATA MOCP Total UNIT SIZE Evaporator Condenser Compressor Heating Heater Motor Motor Amps Type Amps 230v 208v 230v 208v 230v 208v 230v 208v 1.50 6,800 5,100 0.72 0.50... -
Page 13: Typical Wiring Schematic
Typical wiring schematic (52VER unit shown) COND COMPRESSOR MOTOR EVAP MOTOR HEATER 1 CAP OFF ANY UNUSED SPEED TAPS EVAP EVAP COND COMP HTR2 HTR1 A FACTORY SUPPLIED JUMPER IS PLACED BETWEEN FD AND RC AND MUST BE REMOVED WHEN INSTALLING THE FRONT DESK SWITCH 208/240 V- 1 PH - 60 HZ DISCONNECT... -
Page 14: Controls
Controls Sequence of operation NOTE: All three functions are disabled if the 3-minute time delay is active. Start-up The unit will operate until the thermostat is satisfied. The random time delay prevents any unit operation for 10 Any time that power is applied to the unit and the ther- to 60 seconds after initial application of power to the unit. - Page 15 Cooling — Compressor (see Reversing Valve) and fan Reversing valve (heat pump only) — Type B valves turn on automatically when temperature rises (see Dead- will energize in Heating mode. Reversing valve will turn on band) above set point. Compressor has a 15-second delay 15 seconds prior to heat/cool activity.
-
Page 16: Typical Installation
Typical installation SEALANT RETURN WALL SLEEVE 52V UNIT EXTERIOR GRILLE 1/2 BUBBLE TO CONDENSATE DRAIN 1/4-in. MIN. 6-in. MIN. a52-1347... -
Page 17: Application Data
Whether designing a new structure or replacing packaged terminal air conditioning units in an existing building, Undersizing — If a PTAC unit is undersized (cooling ca- Carrier units can meet your needs in the following pacity is less than required capacity for an application), the locations: unit will not be able to cool the space down to the desired temperature during very hot days. -
Page 18: Guide Specifications
Size Range: 9,000 to 24,000 Nominal Btuh 2. Hot water heating coil shall have -in. OD Carrier Model Numbers: high-efficiency rifled copper tubes mechanically 52VCR (Cooling Only with R-410A Refrigerant) bonded to high-efficiency aluminum fins. All 52VER (Cooling with Electric Heat and coils shall be factory leak tested at 350 psig. - Page 19 L. Special Features: 2. A thermostat with adjustable high and low tem- perature limits shall be available. 1. A hurricane louver and hurricane wall sleeve shall be available for coastal areas. 3. Interior panel shall be available for field-installa- tion as a louvered or non-louvered type.
- Page 20 Carrier Corporation • Syracuse, New York 13221 8-13 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Section 4 Pg 20 Catalog No. 04-52520003-01 Printed in U.S.A. Form 52V-3PD...
