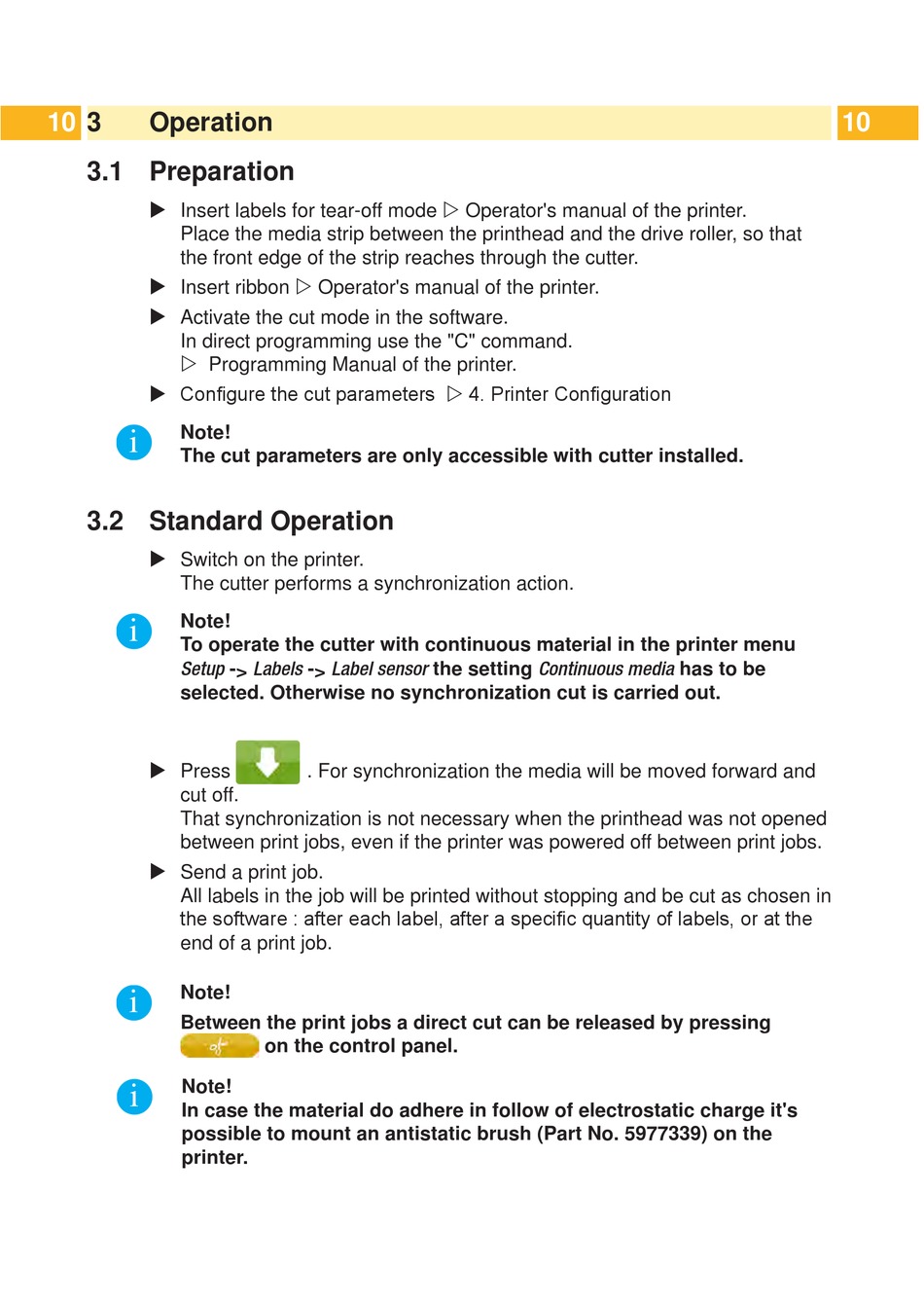

Operation

3.1 Preparation

 Insert labels for tear-off mode  Operator's manual of the printer.
Place the media strip between the printhead and the drive roller, so that
the front edge of the strip reaches through the cutter.
 Insert ribbon  Operator's manual of the printer.
 Activate the cut mode in the software.
In direct programming use the "C" command.
 Programming Manual of the printer.
 Configure the cut parameters  4. Printer Configuration
i
Note!
The cut parameters are only accessible with cutter installed.

3.2 Standard Operation

 Switch on the printer.
The cutter performs a synchronization action.
i
Note!
To operate the cutter with continuous material in the printer menu
Setup - > Labels - > Label sensor the setting Continuous media has to be
selected. Otherwise no synchronization cut is carried out.
 Press
cut off.
That synchronization is not necessary when the printhead was not opened
between print jobs, even if the printer was powered off between print jobs.
 Send a print job.
All labels in the job will be printed without stopping and be cut as chosen in
the software : after each label, after a specific quantity of labels, or at the
end of a print job.
i
Note!
Between the print jobs a direct cut can be released by pressing
i
Note!
In case the material do adhere in follow of electrostatic charge it's
possible to mount an antistatic brush (Part No. 5977339) on the
printer.
. For synchronization the media will be moved forward and
on the control panel.
