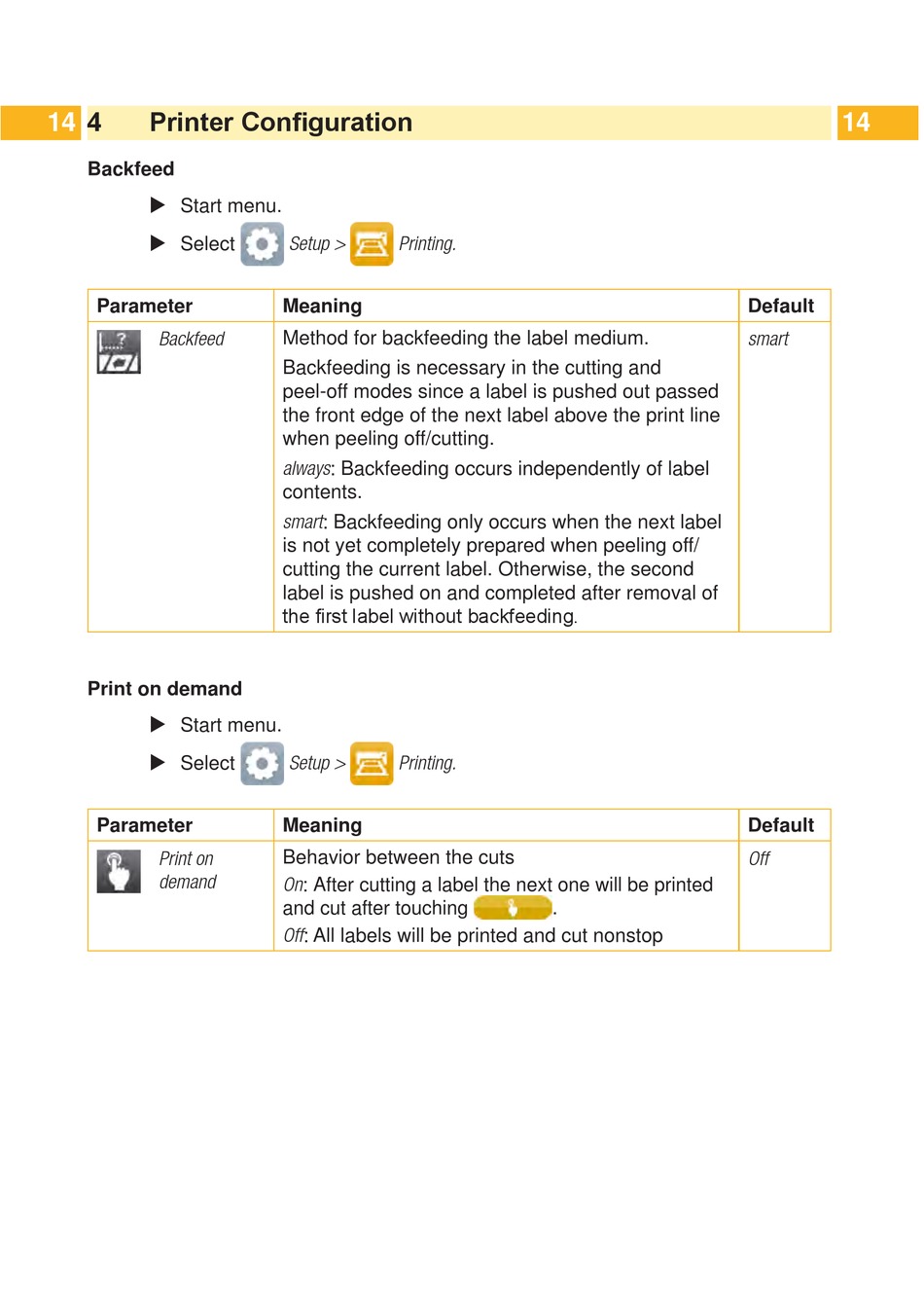

CAB CU200 Operator's Manual page 14

4 Printer Configuration
14
Backfeed
 Start menu.
 Select
Parameter
Backfeed
Print on demand
 Start menu.
 Select
Parameter
Print on
demand
Setup > Printing.
Meaning
Method for backfeeding the label medium.
Backfeeding is necessary in the cutting and
peel-off modes since a label is pushed out passed
the front edge of the next label above the print line
when peeling off/cutting.
always: Backfeeding occurs independently of label
contents.
smart: Backfeeding only occurs when the next label
is not yet completely prepared when peeling off/
cutting the current label. Otherwise, the second
label is pushed on and completed after removal of
the first label without backfeeding.
Setup > Printing.
Meaning
Behavior between the cuts
On: After cutting a label the next one will be printed
and cut after touching
Off: All labels will be printed and cut nonstop
.
14
Default
smart
Default
Off
