CAB ST400 Instructions Manual

Cutter with stacker

Advertisement

Quick Links

Instructions
Cutter with Stacker
ST400
MADE IN GERMANY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CAB ST400

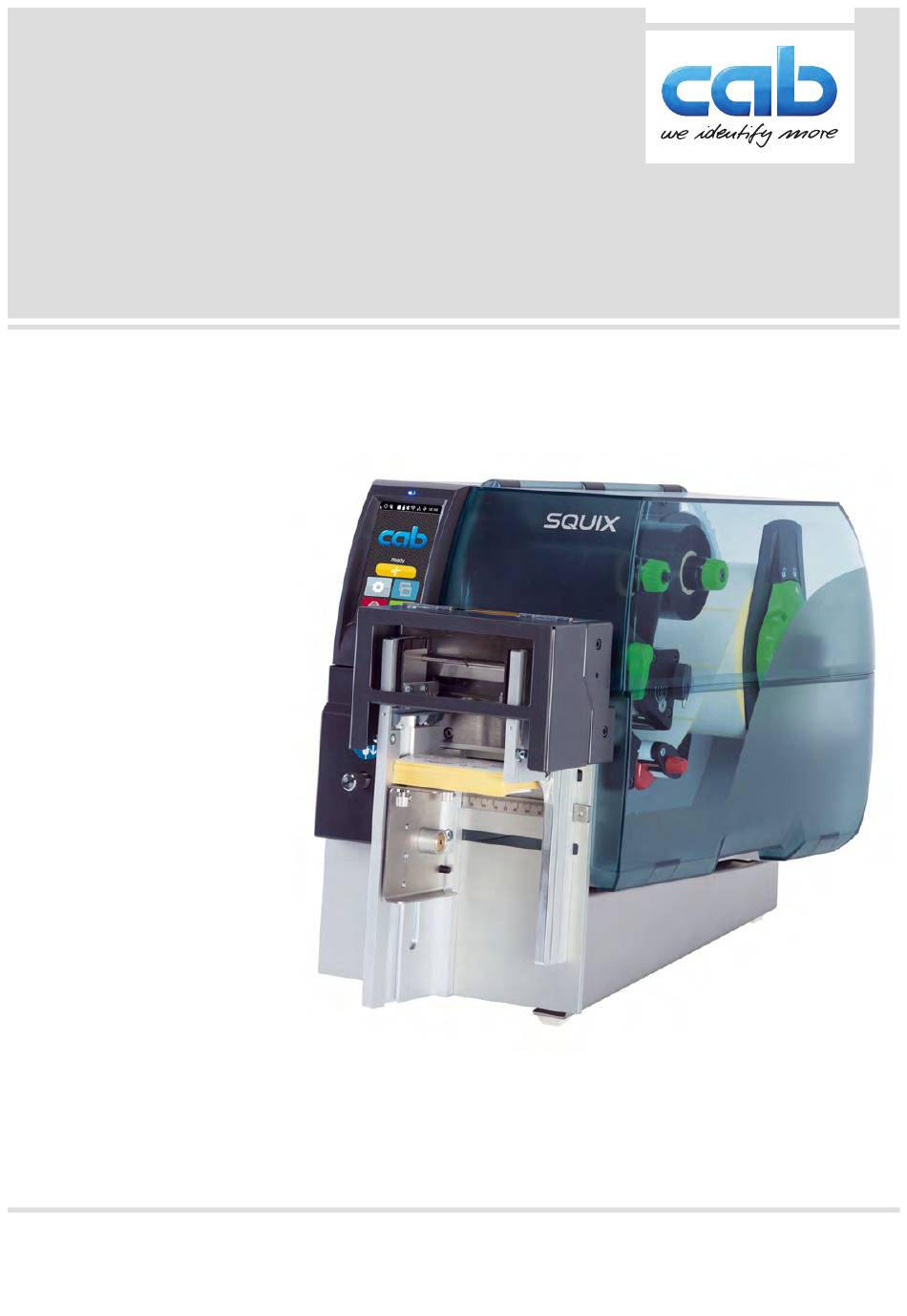

  • Page 1 Instructions Cutter with Stacker ST400 MADE IN GERMANY...
  • Page 2 Edition: 04/2023 - Part No. 9009939 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
  • Page 3: Table Of Contents

    Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instructions ............................ 5 Environment ............................. 6 Technical Data ............................6 Device Overview ............................6 Installation .............................. 8 Unpacking ..............................8 Preparing the Printer ..........................8 Mounting the Stacker ..........................9 Adapting the Stacker to the Media Size ....................
  • Page 4: Introduction

    Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous voltages. Danger! Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury. Warning! Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury.
  • Page 5: Safety Instructions

    Introduction Safety Instructions Disconnect the printer from the electrical outlet before mounting or removing the stacker (2). • • When using the stacker at SQUIX without base frame the stacker protrudes the base plate of the printer. Therefore the system must be positioned at the edge of the platform or on a mounting unit. Position the system in such a way that a risk of tilting will be avoided.
  • Page 6: Environment

    The modular construction of the printer enables it to be easily disassembled into its component parts.  Send the parts for recycling.  Take the electronic circuit boards to public waste disposal centers or to the distributor. Technical Data ST400 Usability for printer type SQUIX4M, SQUIX4MP, XD Q4...
  • Page 7 Introduction 3 Knurled screw 12 Media Guide 13 Media Guide 14 Pin 15 Plug peripheral port Overview rear side Figure 3 16 Base frame for SQUIX Base frame Figure 4...
  • Page 8: Installation

    Installation Unpacking  Check stacker for damage which may have occurred during transport.  Check delivery for completeness. Contents of delivery: • Stacker with cutter Base frame • • Documentation Note! Please keep the original packaging in case the printer must be returned. Attention! The device and printing materials will be damaged by moisture and wetness.
  • Page 9: Mounting The Stacker

    „Installation“ Mounting the Stacker Attention!  Disconnect the printer from the electrical outlet before mounting or removing the stacker. Figure 6 Mounting the stacker 1.  SQUIX only: Place the base frame (1) on a plane surface. 2.  SQUIX only: Put the feet of the printer into the holes of the base frame. 3.
  • Page 10: Adapting The Stacker To The Media Size

    „Installation“ Adapting the Stacker to the Media Size Caution! Risk of injury! With inappropriate tables and safety covers the reliability and machinery safety cannot be guaranteed.  Equip the stacker only with a table designated for the media to be used and the matching safety covers. 2.4.1 Adjusting the Side Plates Figure 7...
  • Page 11: Mounting The Safety Covers

    „Installation“ 2.4.3 Mounting the Safety Covers Caution! Risk of injury! Without safety covers or with improperly mounted safety covers the reliability and machinery safety cannot be guaranteed.  Equip the stacker only with safety covers designated for the media to be used. ...
  • Page 12: Operation

    Operation  Insert labels for tear-off mode  Operator's manual of the printer. Place the media strip between the printhead and the drive roller, so that the front edge of the strip reaches through the cutter.  Insert ribbon  Operator's manual of the printer. ...
  • Page 13: Printer Configuration

    Printer Configuration Note! The values of the setup are basic settings for the current printer/cutter combination. After changing the cutter or printer a re-adjustment may be necessary. Changes required for processing different print jobs should be implemented by additional offsets available in the software. The offset values from setup and software are added together for execution. For detailed instructions for configuration  Configuration Manual of the printer. Cut Parameters  Start menu. Setup > Cutting.
  • Page 14: Maintenance

    Maintenance The maintenance is limited to monthly cleaning of the device. The most important is the cleaning of the cutter blades. Caution! Risk of injury!  Disconnect the printer from the electrical outlet to avoid unintended cutter moves.  Carefully handle the cutter. The cutter blades are sharp. Figure 11 Cleaning the cutter 1.
  • Page 15: Error Messages / Problem Solutions

    Error Messages / Problem Solutions General information  Operator's Manual of the printer. Specific Error Messages concerning the Stacker with Cutter Remedy Error message Cause Box full Table has reached the lower end Remove stack. Move table upwards until it stops Press Continue to continue the print job. position and cannot take anymore labels.
  • Page 16: Reference To The Eu Declaration Of Conformity

    The Stacker with Cutter complies with the relevant fundamental regulations of the EU Rules for Safety and Health: Directive 2014/30/EU relating to electromagnetic compatibility • Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic • equipment EU Declaration of Conformity https://www.cab.de/media/pushfile.cfm?file=2790 ...
