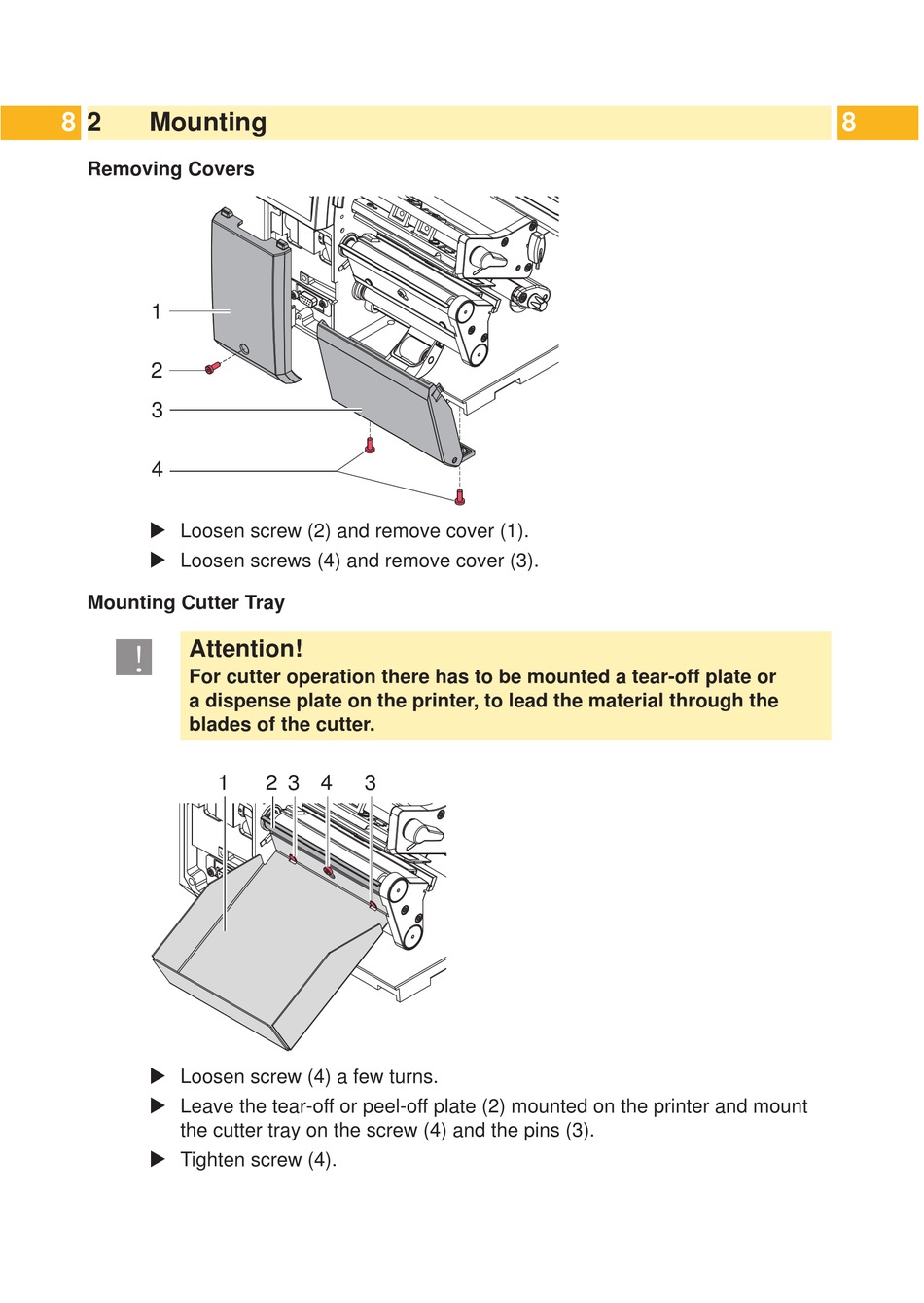

Mounting

Removing Covers
1
2
3
4
 Loosen screw (2) and remove cover (1).
 Loosen screws (4) and remove cover (3).
Mounting Cutter Tray
!
Attention!
For cutter operation there has to be mounted a tear-off plate or
a dispense plate on the printer, to lead the material through the
blades of the cutter.
1
 Loosen screw (4) a few turns.
 Leave the tear-off or peel-off plate (2) mounted on the printer and mount
the cutter tray on the screw (4) and the pins (3).
 Tighten screw (4).
2
3
4
3
8
