Operation

3.1 Loading Material

 Fold down the cutter.
 Insert labels for tear-off mode  Operator's manual of the printer.
Place the media strip between the printhead and the drive roller, so that
the front edge of the strip reaches through the cutter.

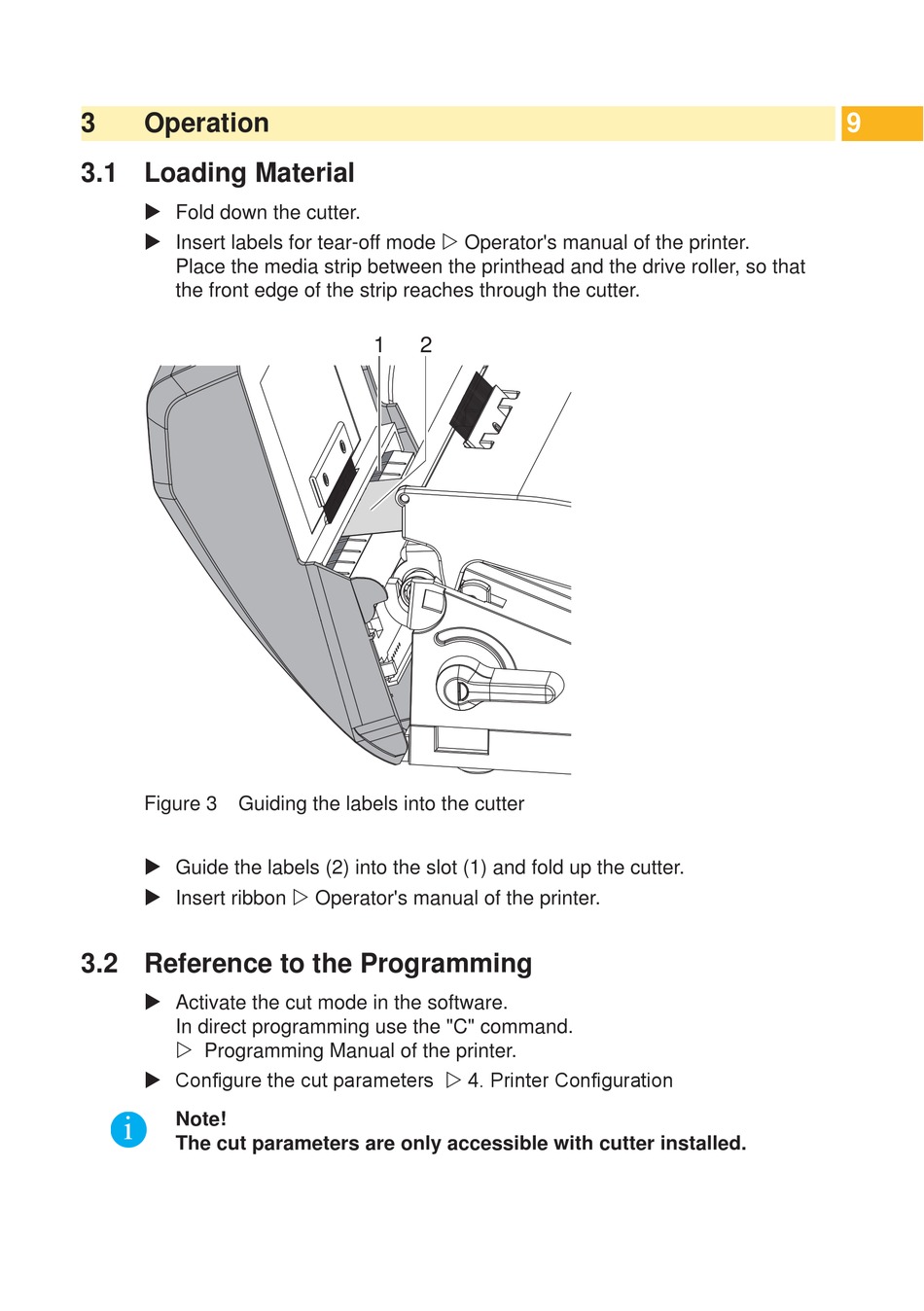

Figure 3 Guiding the labels into the cutter
 Guide the labels (2) into the slot (1) and fold up the cutter.
 Insert ribbon  Operator's manual of the printer.

3.2 Reference to the Programming

 Activate the cut mode in the software.
In direct programming use the "C" command.
 Programming Manual of the printer.
 Configure the cut parameters  4. Printer Configuration
i
Note!
The cut parameters are only accessible with cutter installed.
1 2
