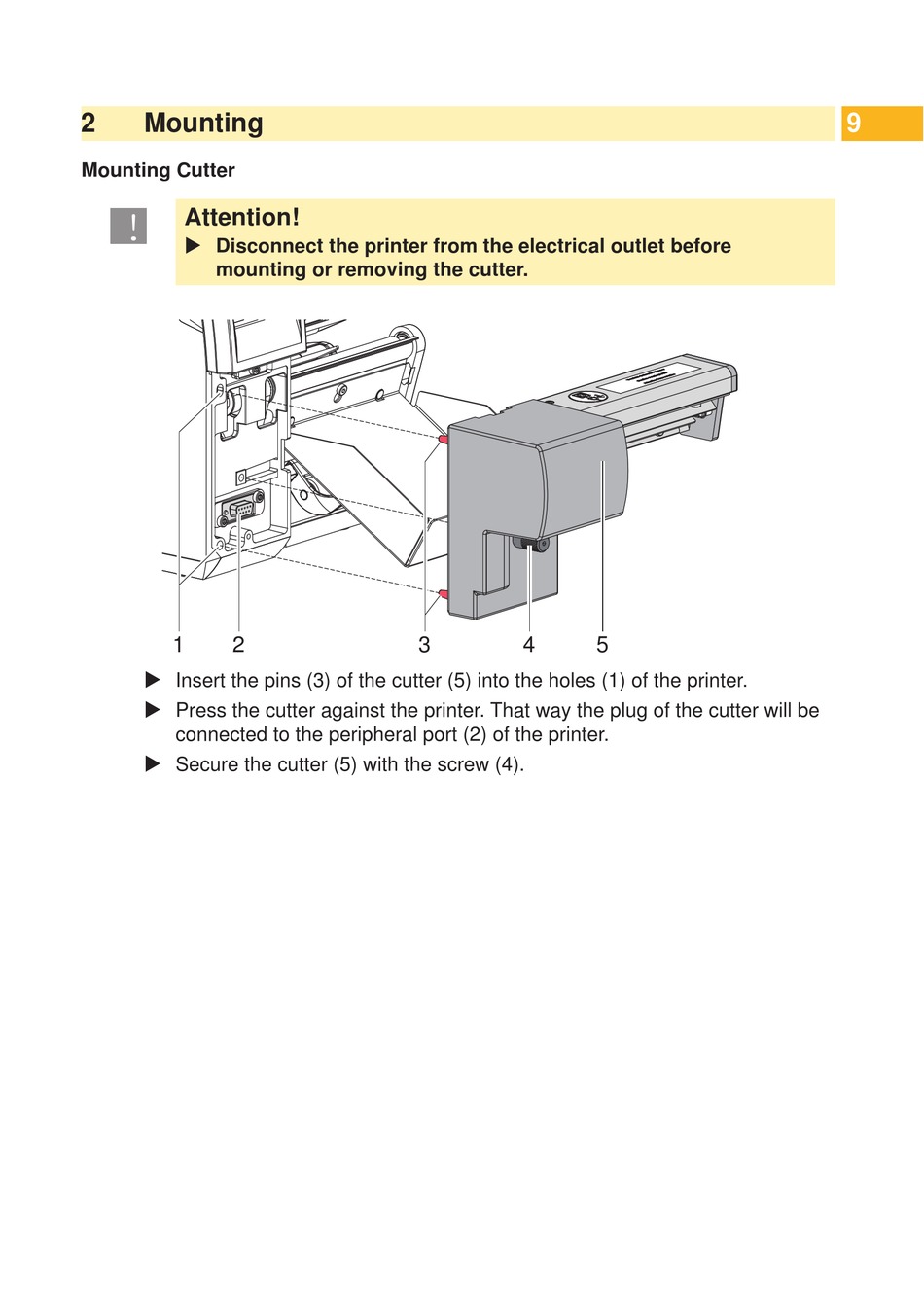

2 Mounting
Mounting Cutter
!
Attention!
 Disconnect the printer from the electrical outlet before
mounting or removing the cutter.
1 2
 Insert the pins (3) of the cutter (5) into the holes (1) of the printer.
 Press the cutter against the printer. That way the plug of the cutter will be
connected to the peripheral port (2) of the printer.
 Secure the cutter (5) with the screw (4).
3 4 5
