PROFESSIONAL MEDICAL PRODUCTS

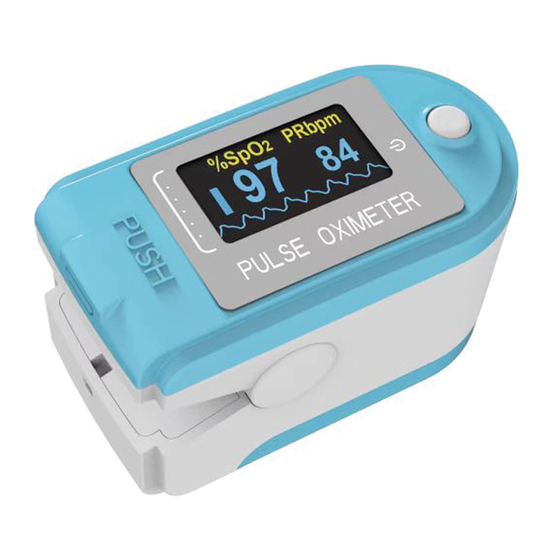

PULSOXIMETRO OXY 9 - wireless
OXY 9 OXIMETER - wireless
OXYMÈTRE OXY 9 - sans fil
OXY 9 OXÍMETRO - inalámbrico
OXY 9 OXYMETER - kabellos
OXY 9 OXÍMETRO - sem fio
CMS50D-BT (35078)
CONTEC MEDICAL SYSTEMS CO., LTD
No.112 Qinhuang West Street,
Economic & Technical Development Zone,
Qinhuangdao, Hebei Province,
PEOPLE'S REPUBLIC OF CHINA
Made in China
Shanghai International
Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537,
Hamburg, Germany
Importato da / Imported by / Importé par /
Importado por / Importado por / Eingeführt von:
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
IP22
60°C
-40°C
500 hPa
0123
1060 hPa
95%
0%
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gima OXY 9
Summary of Contents for Gima OXY 9
- Page 1 PROFESSIONAL MEDICAL PRODUCTS PULSOXIMETRO OXY 9 - wireless OXY 9 OXIMETER - wireless OXYMÈTRE OXY 9 - sans fil OXY 9 OXÍMETRO - inalámbrico OXY 9 OXYMETER - kabellos OXY 9 OXÍMETRO - sem fio CMS50D-BT (35078) 0123 CONTEC MEDICAL SYSTEMS CO., LTD No.112 Qinhuang West Street,...
-
Page 2: Instructions To User
ENGLISH Instructions to User Dear users, thank you very much for purchasing the Pulse Oximeter. In case of modifications and software upgrades, the informa- tion contained in this document is subject to change without notice. The Manual describes, in accordance with the Pulse Oxime- ter’s features and requirements, main structure, functions, specifications, correct methods for transportation, installa- tion, usage, operation, repair, maintenance and storage, etc. -
Page 3: Instructions For Safe Operations
ENGLISH The light (the infrared is invisible) emitted from the device is harmful to the eyes, so the user and the maintenance man should not stare at the light. Testee can not use enamel or other makeup. Testee’s fingernail can not be too long. ... - Page 4 ENGLISH erated is not subject to any sources of strong electro- magnetic interference, such as radio transmitters, mobile telephones, etc. Keep them far away High level electro- magnetic radiation emitted from such devices may great- ly affect the monitor performance. ...
- Page 5 ENGLISH mid environment, please do not use it immediately. DO NOT operate keys on front panel with sharp materi- als. High temperature or high pressure steam disinfection of the oximeter is not permitted. Refer to User Manual in the relative chapter (7.1)for instructions of cleaning and disinfection.
- Page 6 ENGLISH measured data is beyond the highest or lowest limit, the device would start alarming automatically on the premise of the alarming function is on. The device has the function of alarming, this function can either be paused, or closed (default setting) for good. This function could be turned on through menu operation if you need.
-
Page 7: Environment Requirements
ENGLISH 2.2 Features A. Operation of the product is simple and convenient. B. The product is small in volume, light in weight and con- venient in carrying. C. Low power consumption 2.3 Major Applications and Scope of Application The Pulse Oximeter can be used in measuring the pulse ox- ygen saturation and pulse rate through finger. -
Page 8: Technical Specifications
ENGLISH length of lights can be focused onto human nail tip through perspective clamp finger-type sensor. Then measured sig- nal can be obtained by a photosensitive element, informa- tion acquired through which will be shown on screen through treatment in electronic circuits and microprocessor. Glow and infrared ray emission tube Glow and infrared ray... -
Page 9: Bluetooth Specifications
ENGLISH Accuracy: When the SpO measuring range is 70%~ 100%, the permission of absolute error is ±2%; below 70% unspecified B. Measurement of pulse rate Measuring range: 30 bpm ~ 250 bpm Accuracy: ±2 bpm or ±2% (select larger) C. Resolution : 1%, Pulse rate: 1bpm. -
Page 10: Battery Installation
ENGLISH 5 INSTALLATION 5.1 View of the Front Panel Figure 2 Front view - Bluetooth equipment Front view - Wire or Bluetooth wired equipment USB interface: connect with USB cable (Wire or Bluetooth wired equipment) Button: exit standby; pause sound prompt, enter menu, menu operation (Wire or Bluetooth wired equipment). - Page 11 ENGLISH the improper insertion may damage the device. When you don’t use the device for more than 2 hours, please take out the dry batteries. Figure 3 Figure 4 5 3 Accessories A. Put the thinner side of the rope through the hole (see Figure4 ).
-
Page 12: Application Method
ENGLISH 6 OPERATING GUIDE 6.1.1 Application Method a) Insert the two batteries properly to the direction, and then replace the cover. b) Open the clip as shown in Figure 5. c) Let the user’s finger put into the rubber cushions of the clip (make sure the finger is in the right position), and then clip the finger. - Page 13 ENGLISH The first method: Don’t perform sync time, press the button, then the device will enter to measurement interface from “Synchronous Time...” interface. The second method: Don’t perform sync time, wait for several minutes, then the device will enter to measurement interface from “Synchro- nous Time...”...
-
Page 14: Menu Operation
ENGLISH 6.1.2 Pause sound prompt (Wire or Bluetooth wired equipment) A. Sound prompt, including: over-limit, low-battery and fin- ger out. B. Under the measurement interface, turn on the sound prompt, when the sound prompt occurs, short press the button to pause the sound prompt, and it will resume au- tomatically after about 60s. - Page 15 ENGLISH A. Prompt setting Under main menu, short press the button to select “Prompt”, then long press the button to enter its setting interface shown in Figure 8. Short press the button to select the option to be adjusted, then long press the button to change the value. “Direction”: direction, “+”: increase the value, “-”: de- crease the value “SpO...
- Page 16 ENGLISH Manual record: store up to 24-hour data. When the memory is full, it will display “Memory is full!”, then it will enter the standby mode after several seconds. When exiting the standby mode next time, it will display “Memory is full!”...
- Page 17 ENGLISH Figure 10 Time menu Figure 11 System menu C. Time setting a. Connect the master device to synchronize device time Under the PC software interface, after search for the device (refer to relative chapter (6.1.4) for the connection method), then can synchronize the device time.
-
Page 18: Attention For Operation
ENGLISH then long press the button to enter the interface as shown in Figure 11. Short press the button to select the option to be adjusted, then long press the button to change the value. “Hard.Ver.”: hardware version “Soft.Ver.”: software version “ID”: user name “Demo”: set the Demo mode, “on”: turn on the Demo mode, “off”: turn off the Demo mode. -
Page 19: Clinical Restrictions
ENGLISH B. The finger should be in a proper position (see C. the attached illustration of Figure 4 for reference), or else it may result in inaccurate measure. D. The SpO sensor and photoelectric receiving tube should be arranged in a way with the subject’s arteriole in a position there between. -
Page 20: Maintain, Transportation And Storage
ENGLISH rious error of SpO measure. D. As the SpO value serves as a reference value for judge- ment of anemic anoxia and toxic anoxia, some patients with serious anemia may also report good SpO meas- urement. 7 MAINTAIN, TRANSPORTATION AND STORAGE 7.1 Cleaning and Disinfecting Using medical alcohol to disinfect the device, nature dry or... -
Page 21: Troubleshooting
ENGLISH 8 TROUBLESHOOTING Trouble Possible Reason Solution The SpO 1. The finger is not 1. Place the finger properly positioned. properly and try again. Pulse Rate can 2. Try again, Go to a 2. The patient’s SpO not be displayed hospital for a diagnosis too low to be detected. - Page 22 ENGLISH Menu button (Wired or Bluetooth wired equipment)/ Exit standby mode. Type BF applied part Serial number 1. The finger clip falls off ( no finger inserted) 2. Signal inadequacy indicator Battery positive electrode Battery cathode USB (Wired or Bluetooth wired equipment) ●...
- Page 23 ENGLISH Keep in a cool, dry place Recyclable Product code Lot number Caution: read instructions (warnings) carefully Authorized representative in the European community Expiration date 10 SPECIFICHE DI FUNZIONAMENTO Information Display Mode The Pulse Oxygen Satura- 2-digit digital LCD display tion(SpO Pulse Rate(PR) 3-digit digital LCD display...
- Page 24 ENGLISH Safety Type Interior Battery, BF Type Pulse Intensity Range Continuous bar-graph display, the higher display indicate the stronger pulse. Battery Requirement 1.5 V (AAA size) alkaline batteries × 2 Battery working life Two1.5 V (AAA size) 600 mAh alkaline batteries can work continually for 24 hours Dimensions and Weight Dimensions...
- Page 25 ENGLISH APPENDIX 1 Guidance and manufacturer’s declaration – electromagnetic emissions- for all EQUIPMENT and SYSTEMS Guidance and manufacturer’s declaration – electromagnetic emission The CMS50D-BT is intended for use in the electromagnetic environ- ment specified below. The customer of the user of the CMS50D-BT should assure that it is used in such and environment.
- Page 26 ENGLISH Power frequen- 3A/m 3A/m Mains power quality cy (50/60Hz) should be that of a typical magnetic field commercial or hospital IEC 61000-4-8 environment. NOTE UT is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration – electromagnet- ic immunity –...
- Page 27 ENGLISH Where P is the maximum output power rating of the transmitter in watts (W) ac- cording to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.b...
- Page 28 ENGLISH Recommended separation distances between portable and mobile RF communications equipment and the EQUIP- MENT or SYSTEM – for EQUIPMENT or SYSTEM that are not LIFE-SUPPORTING Recommended separation distances between portable and mo- bile RF communications equipment and the CMS50D-BT The CMS50D-BT is intended for use in an electromagnetic environ- ment in which radiated RF disturbances are controlled.
- Page 29 Disposal: The product must not be disposed of along with other domestic waste. The users must dispose of this equip- ment by bringing it to a specific recycling point for electric and electronic equipment. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
