Wire Connections and Test Points

Figure 4-4 shows the wire connections and test points required for most troubleshooting.

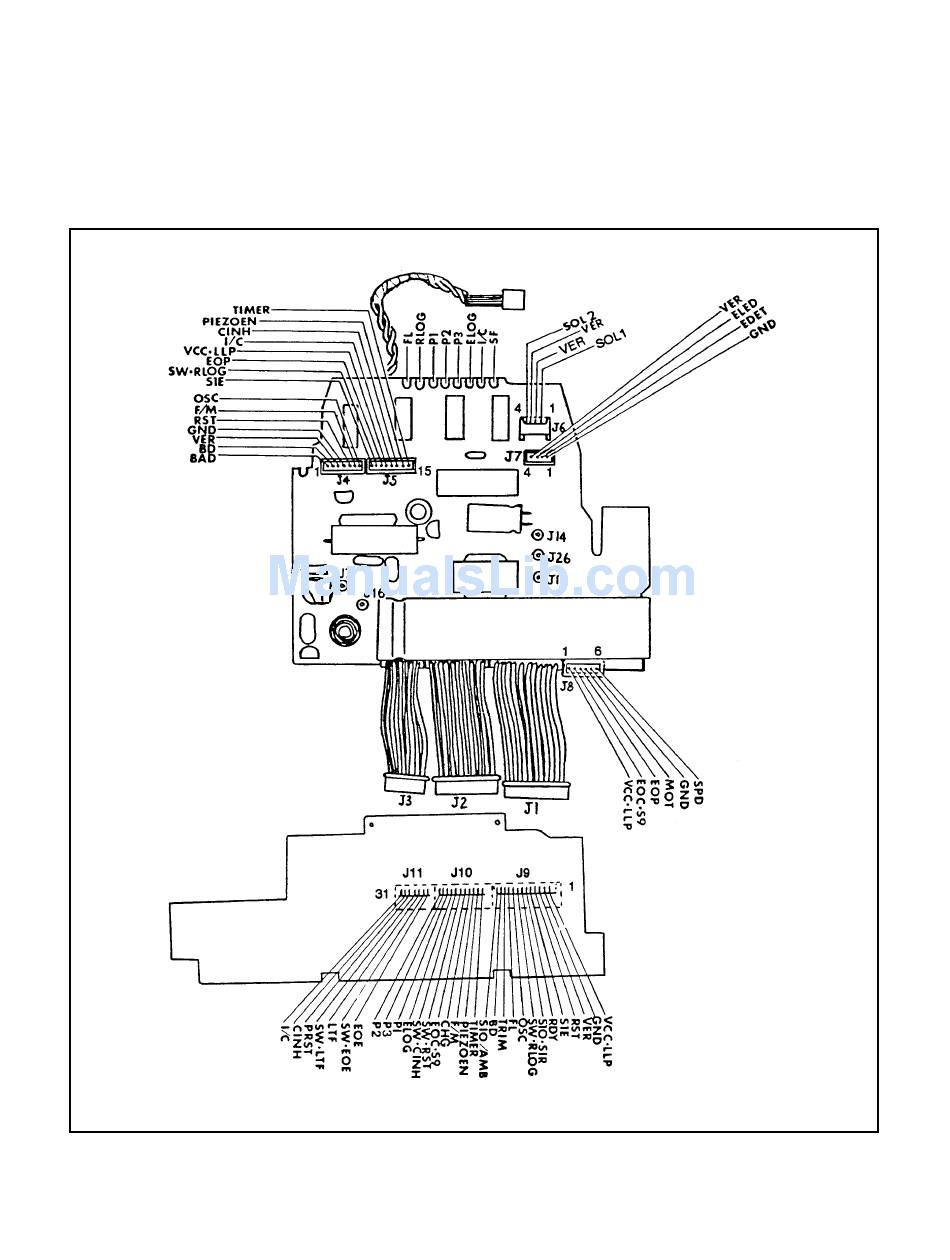

Figure 4-4. Wire connections, test points: strobe/exposure module
and ranging board
73
