8. Remove the ranging board (with the LCD board attached).
Black/Red Wire
to J20
Black Wire
to J19
White Wire
to J5
Ranging
Brown Wire
Board
to J4

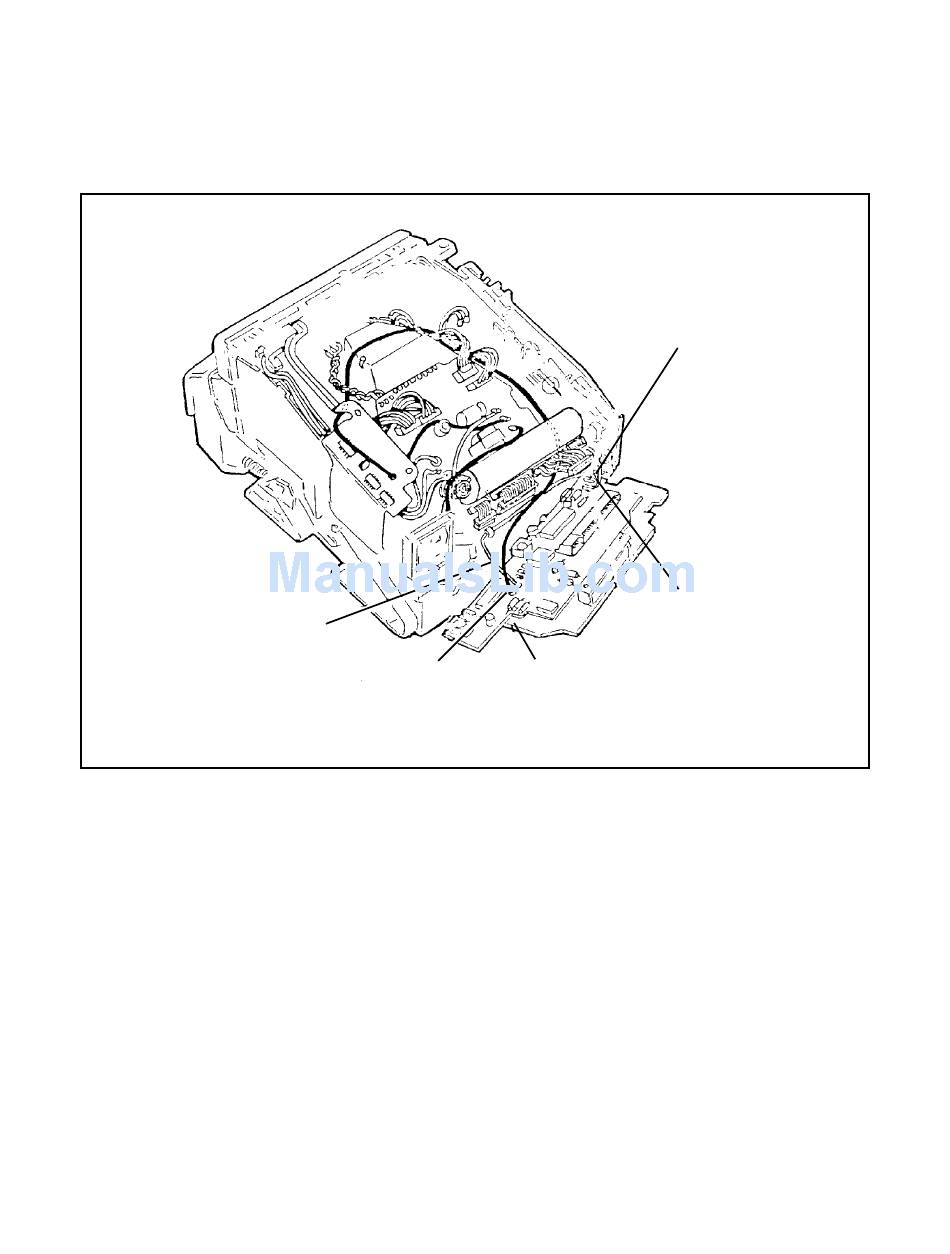

Figure 2-7. Releasing ranging board wire connections
