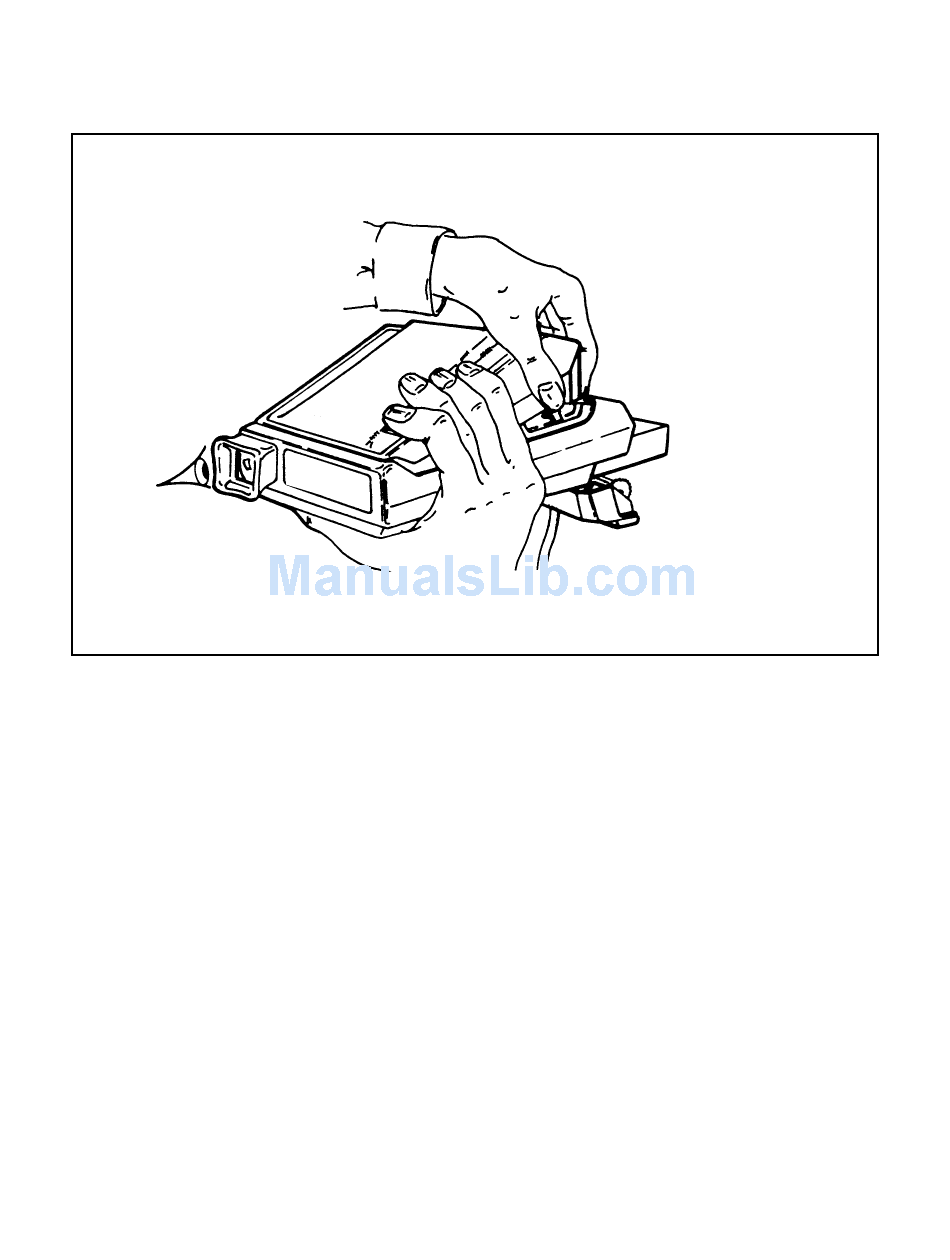

Figure 3-4. Covering transducer to simulate infinity exposure
9. Now, aim the camera at an object within the range of 2 feet (.6 meter) to 15 feet (4.5
meters) and press the S1/S10 button all the way. The following should happen:
• The strobe should fire.
• You should hear the camera go through an exposure cycle. (The blades should
open and close, the Quintic lens should move, and the motor should run.)
• The LCD panel should change from 10 to 9 in the Frames Remaining area.
• The red strobe charging light should come on and then go off.
• The green strobe ready light should come on.
10.Repeat the previous step six more times and observe that the camera operates as
indicated above.
Cover transducer
hand or tape.
28
with
Do not
cover photocell
