5. Release connectors J1, J2 and J3 from the ranging board by grasping the wires
between your thumb and index finger and rocking the connector from side to side
(Figure 2-6).

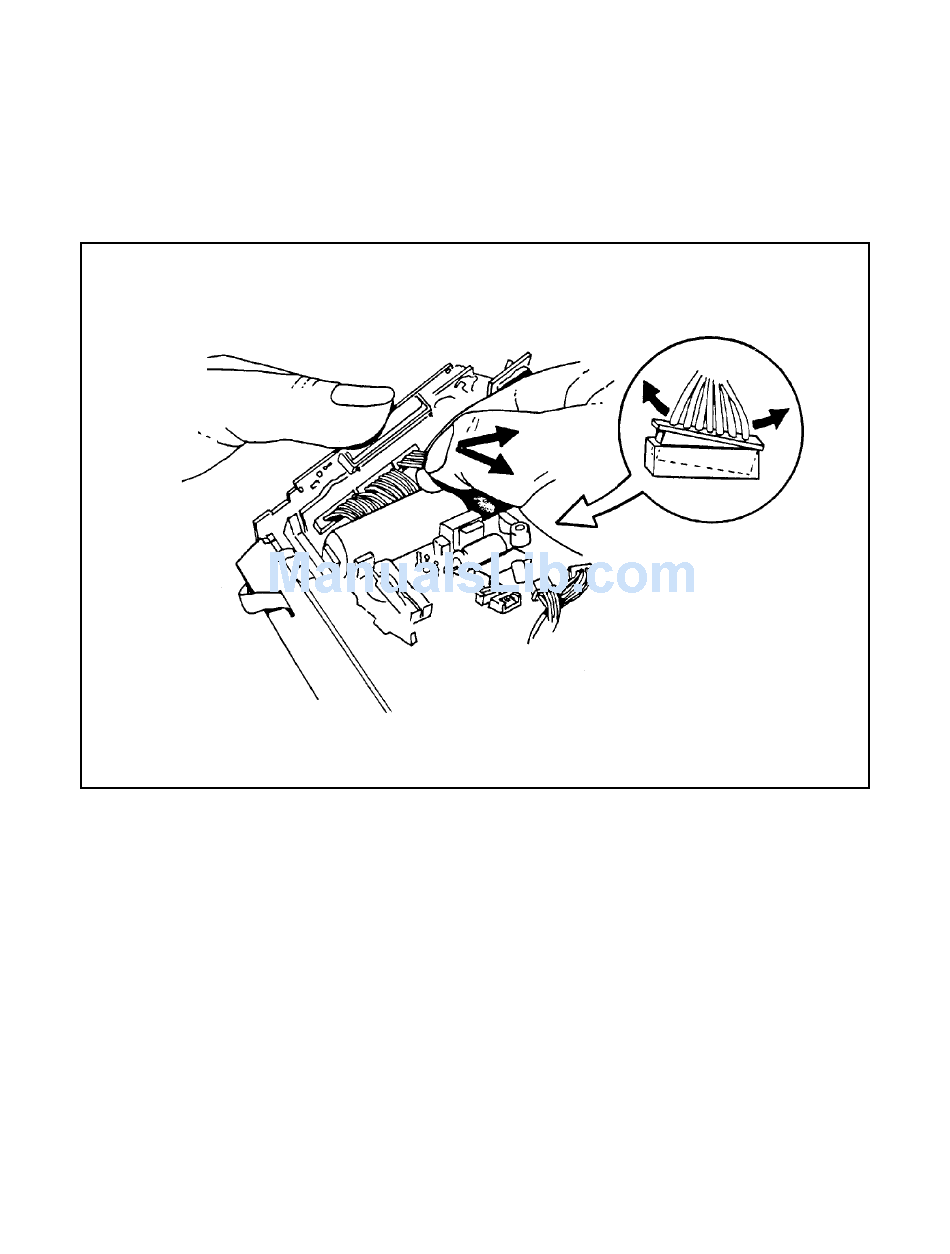

Figure 2-6. Releasing connectors from ranging board
6. Release the white wire (J5) and the brown wire (J4) from the MiniSert self-locking
terminals on the ranging board (Figure 2-7).
7. Release the paired black/red transducer wires from connectors J1 and J20 on the
ranging board (Figure 2-7). Straighten out the bare ends of the wires bent back over
terminals J19 and J20. Then either: (a) pull the wires out of the terminals, or (b)
unsolder them and pull them out.
