Cautions and Reminders

Use proper grounding to protect delicate CMOS circuitry from static discharge damage.
Avoid shock from the photoflash capacitor by discharging it with Dump Probe P/N
13119 immediately after removing the Top Cover.
Handle flexes (Features Flex, Motor Gear Drive Flex) carefully to avoid crimping or
crarcking from sharp bends.
Remove wire connectors with fingers only. Do not use pliers or other tools. Carefully
grasp the wires near the connector betwen thumb and index finger and pull gently while
rocking the connector from side to side (Figure 2-1).

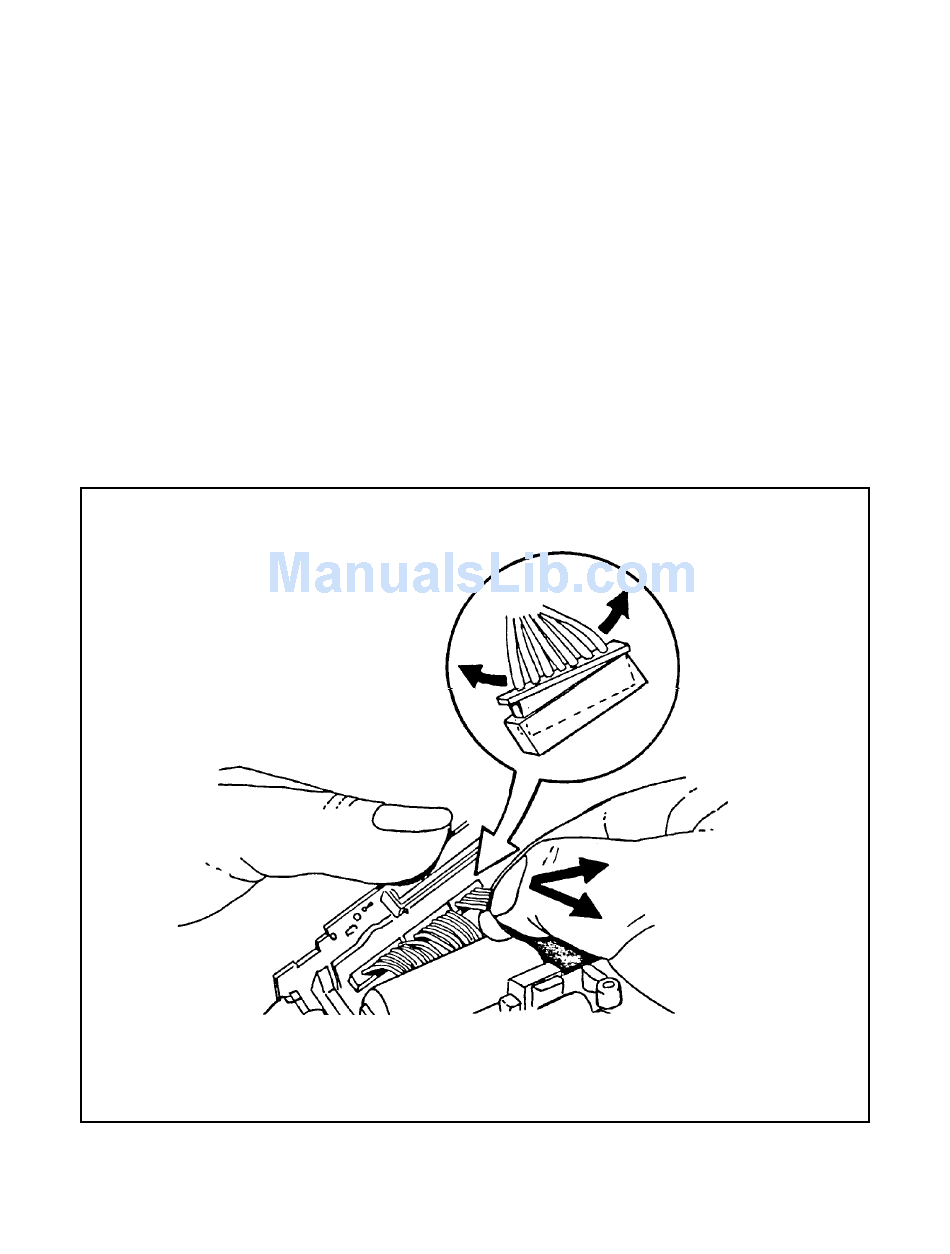

Figure 2-1. Proper removal of a typical wire connector
