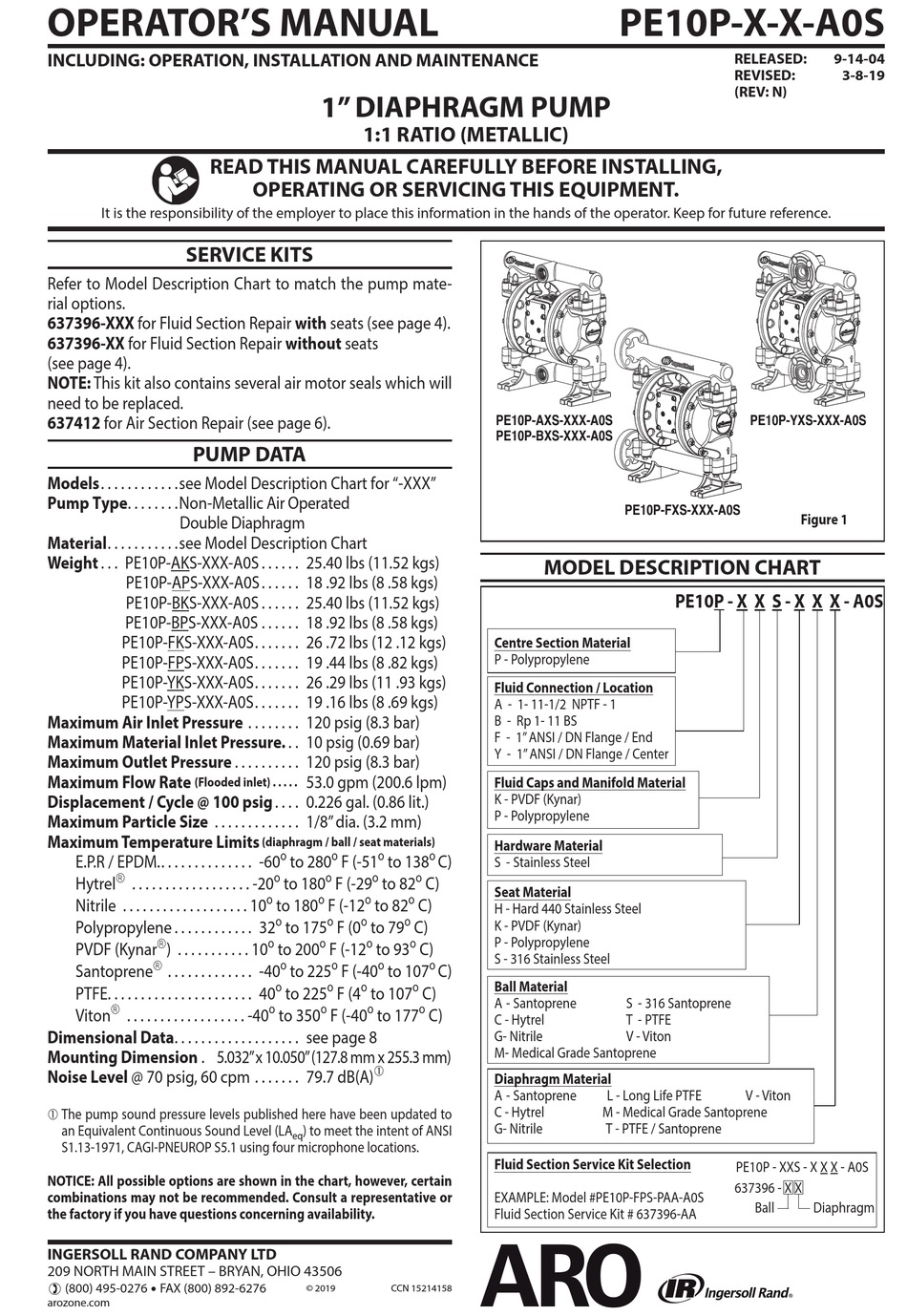

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637396-XXX for Fluid Section Repair with seats (see page 4).
637396-XX for Fluid Section Repair without seats
(see page 4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637412 for Air Section Repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . .see Model Description Chart for "-XXX"
Pump Type . . . . . . . .Non-Metallic Air Operated
Double Diaphragm
Material . . . . . . . . . . .see Model Description Chart
Weight . . . PE10P-AKS-XXX-A0S . . . . . . 25.40 lbs (11.52 kgs)
PE10P-APS-XXX-A0S . . . . . . 18 .92 lbs (8 .58 kgs)
PE10P-BKS-XXX-A0S . . . . . . 25.40 lbs (11.52 kgs)
PE10P-BPS-XXX-A0S . . . . . . 18 .92 lbs (8 .58 kgs)
PE10P-FKS-XXX-A0S . . . . . . . 26 .72 lbs (12 .12 kgs)
PE10P-FPS-XXX-A0S . . . . . . . 19 .44 lbs (8 .82 kgs)
PE10P-YKS-XXX-A0S . . . . . . . 26 .29 lbs (11 .93 kgs)
PE10P-YPS-XXX-A0S . . . . . . . 19 .16 lbs (8 .69 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure. . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate
(Flooded inlet) . . . . .
Displacement / Cycle @ 100 psig . . . . 0.226 gal. (0.86 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits
E.P.R / EPDM. . . . . . . . . . . . . . . -60
Hytrel
. . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . 32
PVDF (Kynar
) . . . . . . . . . . . 10
Santoprene
. . . . . . . . . . . . . -40
PTFE. . . . . . . . . . . . . . . . . . . . . . 40
Viton
. . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . 5.032" x 10.050" (127.8 mm x 255.3 mm)
Noise Level @ 70 psig, 60 cpm . . . . . . . 79.7 dB(A)
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended. Consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
53.0 gpm (200.6 lpm)
(diaphragm / ball / seat materials)
to 280
F (-51
to 138
to 180
F (-29
to 82
to 180
F (-12
to 82
C)
to 175
F (0
to 79
C)
to 200
F (-12
to 93
C)
to 225
F (-40
to 107
to 225
F (4
to 107
C)
to 350
F (-40
to 177
) to meet the intent of ANSI
eq
© 2019
CCN 15214158
PE10P-AXS-XXX-A0S
PE10P-BXS-XXX-A0S
MODEL DESCRIPTION CHART
Centre Section Material
P - Polypropylene
Fluid Connection / Location
A - 1- 11-1/2 NPTF - 1
B - Rp 1- 11 BS
F - 1" ANSI / DN Flange / End
Y - 1" ANSI / DN Flange / Center
Fluid Caps and Manifold Material
K - PVDF (Kynar)
P - Polypropylene
Hardware Material
C)
S - Stainless Steel
C)
Seat Material
H - Hard 440 Stainless Steel
K - PVDF (Kynar)
P - Polypropylene
S - 316 Stainless Steel
C)
Ball Material
A - Santoprene
C)
C - Hytrel
G- Nitrile
M- Medical Grade Santoprene
Diaphragm Material
A - Santoprene
C - Hytrel
G- Nitrile
Fluid Section Service Kit Selection
EXAMPLE: Model #PE10P-FPS-PAA-A0S
Fluid Section Service Kit # 637396-AA
PE10P-X-X-A0S
RELEASED:
REVISED:
(REV: N)
PE10P-YXS-XXX-A0S
PE10P-FXS-XXX-A0S
PE10P - X X S - X X X - A0S
S - 316 Santoprene
T - PTFE
V - Viton
L - Long Life PTFE
V - Viton
M - Medical Grade Santoprene
T - PTFE / Santoprene
PE10P - XXS - X X X - A0S
637396 - X X
Ball
9-14-04
3-8-19
Figure 1
Diaphragm
